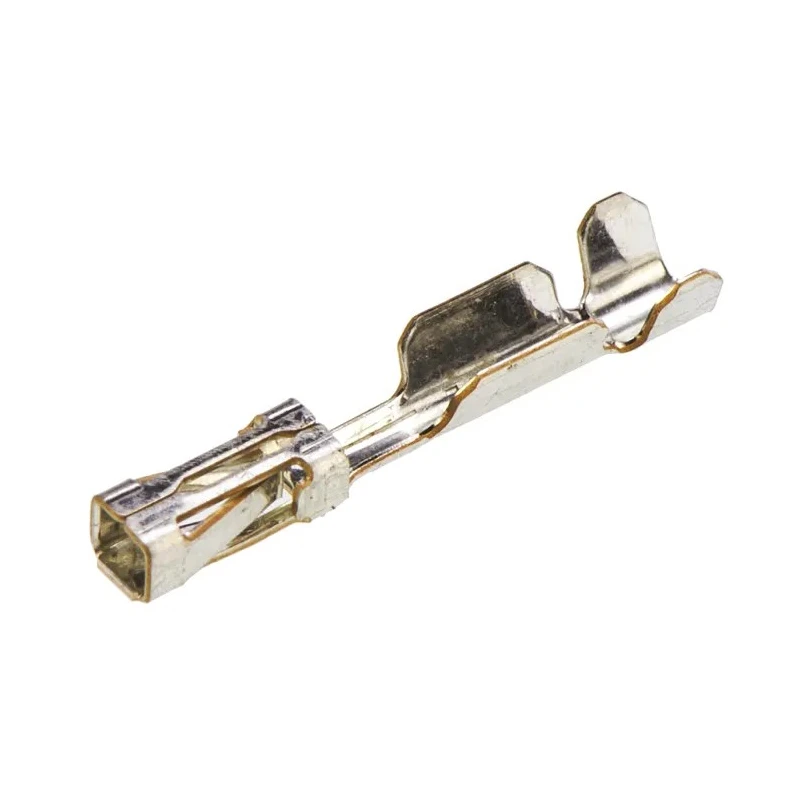

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal 3A Current, 24-20 AWG Wire Size 11.94mm Length 87523-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 11.94mm |
| Model | 87523-6 |
| Gender | Female |
| Contact Material | Bronze Phosphor Bronze |
| Series | AMPMODU MOD IV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU MOD IV Connector Housing |
| Contact Plating | Bright Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Designed for reliable crimp termination with bright tin-plated phosphor bronze contacts.
- Supports current rating of 3 amperes for robust electrical connections.
- Compatible with AMPMODU MOD IV series shrouded header connectors.
- Wire size range from 24 AWG minimum to 20 AWG maximum offers versatility.
- Operates reliably in temperatures ranging from -65°C to 105°C.
- Contact resistance maximum of 12 milliohms ensures minimal signal loss.
- Compact length of 11.94 millimeters facilitates space-saving installations.
- Constructed from durable bronze phosphor bronze material for longevity.
Product Description
TE Connectivity 87523-6 Female Crimp Terminal is specially engineered for use with AMPMODU MOD IV connector housings. This crimp contact supports a 3A current rating and is suitable for wire sizes between 24 AWG (minimum) and 20 AWG (maximum), providing flexibility for various wiring applications.
The contact plating is bright tin over phosphor bronze, delivering excellent conductivity and corrosion resistance, making it ideal for industrial, manufacturing, and electronic assembly environments.
Operating reliably within a temperature range of -65°C to 105°C, this terminal ensures consistent electrical performance under harsh conditions. The maximum contact resistance is maintained at 12 milliohms, reducing energy loss and improving signal integrity.
With a length of 11.94 mm, the compact design enables efficient use of PCB space. These Crimp Terminals are intended for use with Mod IV shells that mate securely with shrouded headers, common in electronics manufacturing and assembly sectors.
Designed for reliable crimp termination with bright tin-plated phosphor bronze contacts. Supports current rating of 3 amperes for robust electrical connections. Compatible with AMPMODU MOD IV series shrouded header connectors.
Wire size range from 24 AWG minimum to 20 AWG maximum offers versatility. Operates reliably in temperatures ranging from -65°C to 105°C. Contact resistance maximum of 12 milliohms ensures minimal signal loss. Compact length of 11.94 millimeters facilitates space-saving installations.
Constructed from durable bronze phosphor bronze material for longevity.
This product is suitable for applications in electronics manufacturing, industrial automation, and equipment where robust and reliable PCB connections are required. The AMPMODU range addresses a wide variety of industry sector needs with an industry-standard 2.54mm grid spacing for wire-to-board or board-to-board connections.
Explore more from TE Connectivity and the AMPMODU family for advanced connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a current rating of 3 amperes, ensuring robust electrical connections.
It is suitable for wire sizes ranging from 24 AWG (minimum) to 20 AWG (maximum), providing versatility for various applications.
The maximum operating temperature for this terminal is 105°C, allowing it to function reliably in high-temperature environments.
This crimp terminal has a compact length of 11.94 millimeters, facilitating space-saving installations.
The maximum contact resistance is maintained at 12 milliohms, which helps to minimize signal loss and improve performance.
It is constructed from bronze phosphor bronze, which provides good conductivity and corrosion resistance.
This terminal is specifically designed for use with AMPMODU MOD IV connector housings, ensuring secure connections.
The minimum operating temperature for this terminal is -65°C, allowing reliable operation in cold environments.
It utilizes a crimp termination type, which is designed for reliable electrical connections.
This terminal is suitable for applications in electronics manufacturing, industrial automation, and equipment requiring reliable PCB connections.
The contacts are plated with bright tin, which enhances conductivity and provides corrosion resistance.
This crimp terminal is part of the AMPMODU MOD IV series, which is known for its standard grid spacing for connections.
