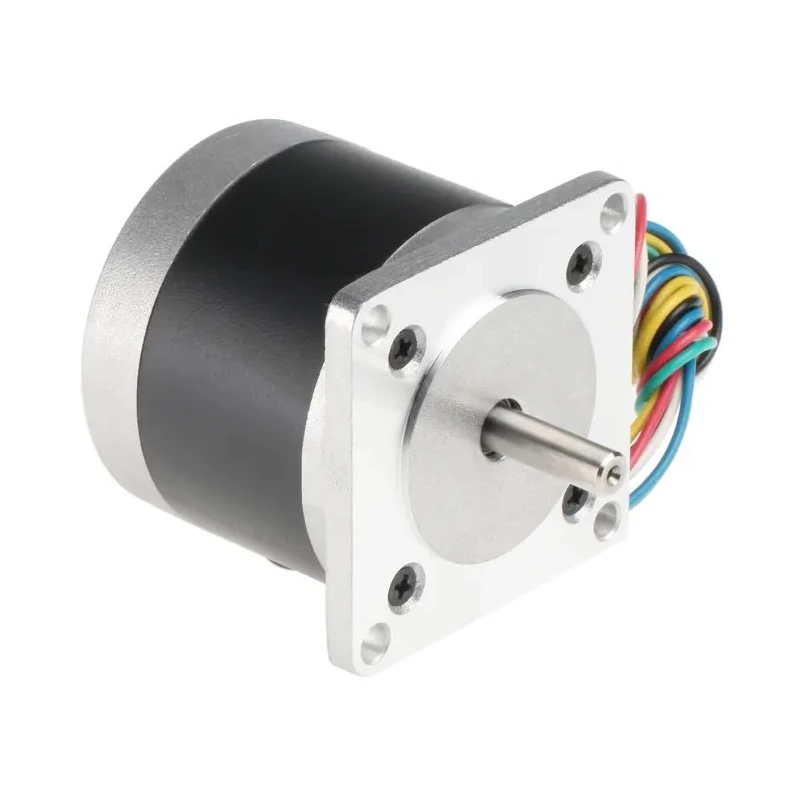

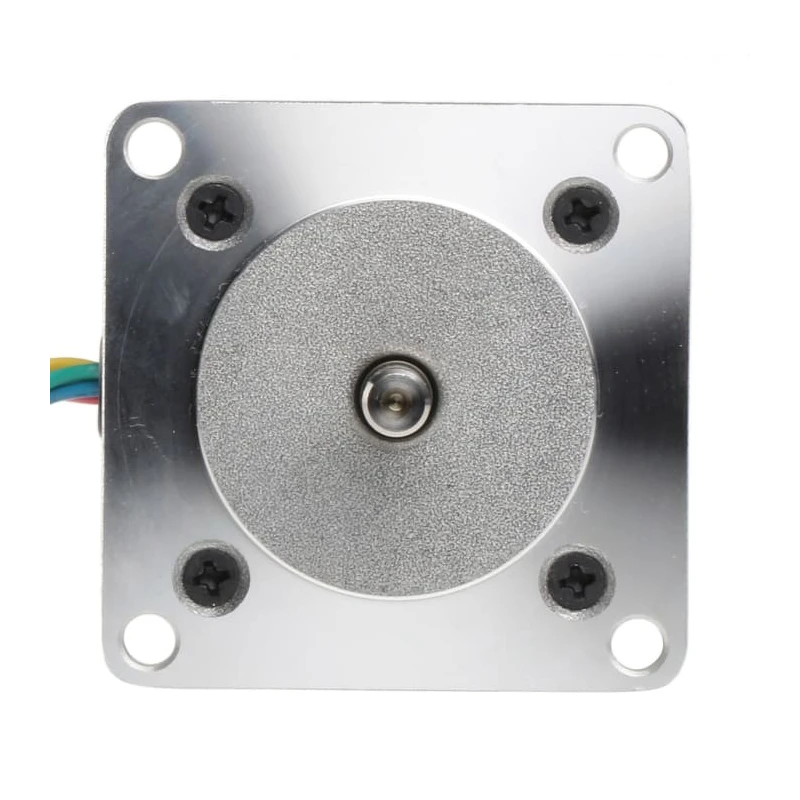

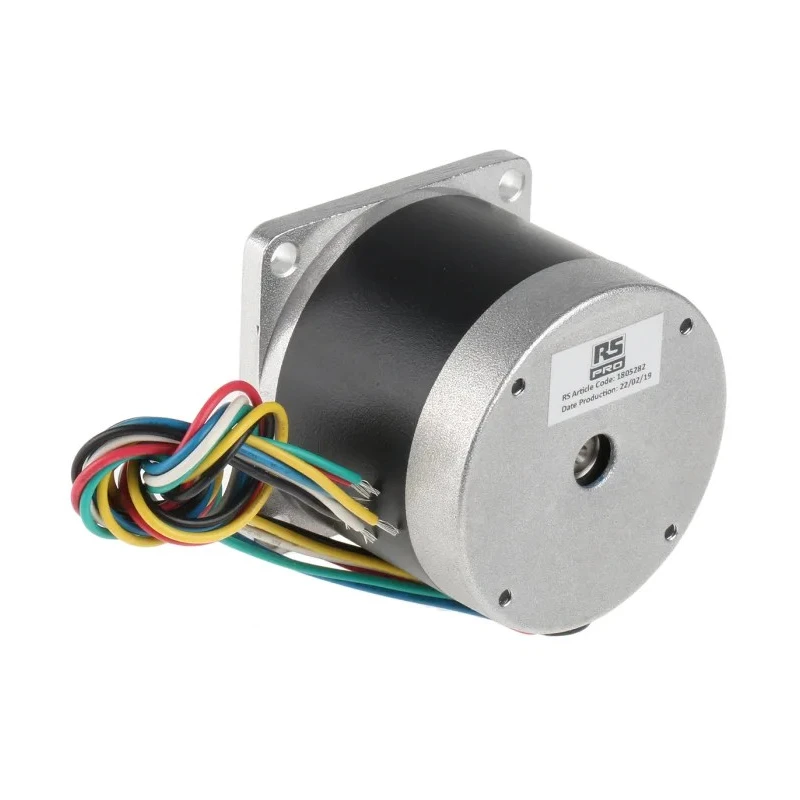

RS PRO Unipolar Hybrid Stepper Motor 6 V, 1.8° Step Angle, 56.4 x 56.4 mm Frame, 6.35 mm Shaft, Model 180-5282
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 6V |
| Brand | RS PRO |
| Model | 180-5282 |
| Depth | 51mm |
| Current Rating | 850mA |
| Frame Size | 56.4 x 56.4 mm |
| Sub Type | Hybrid |
| Shaft Diameter | 6.35mm |
| Shaft Length | 19mm |
| Standards/Approvals | UL, RoHS |
| Step Angle | 1.8° |
| Holding Torque | 0.497 Nm |
| Winding Arrangement | Unipolar |
| Stepping angle | 1.8° |
| RS PRO Unipolar Hybrid Stepper Motor 1.8°, 0.50Nm, 5.1 V dc, 1 A, 8 WiresBrand | RS PRO |
| RS PRO Hybrid Stepper Motor 12V, 1.8 °, 56.4 x 56.4 mm Frame, 6.35 mm ShaftBrand | RS PRO |
Key Features
- Hybrid technology combines VR and PM motor characteristics.
- High holding torque of 0.497 Nm with low speed capability.
- 6.35 mm diameter shaft measuring 19 mm in length.
- Compact 56.4 x 56.4 mm frame size with 51 mm depth.
- Unipolar winding arrangement suitable for various driver modes.
- Operating current rating of 850 mA ensures efficient power consumption.
- Durable and lightweight design ideal for CNC machines and medical scanners.
- Certified to UL and RoHS standards for quality and compliance.
Product Description
RS PRO 180-5282 is a premium unipolar hybrid stepper motor operating at 6 V, with a precise stepping angle of 1.8°. This motor integrates the best features of variable reluctance and permanent magnet technologies, delivering high torque at low speeds and exceptional step accuracy.
Its 56.4 x 56.4 mm frame with a 6.35 mm diameter shaft and 19 mm shaft length provides a durable and compact solution for mechanical precision tasks. The motor features a current rating of 850 mA and a winding resistance of 29 Ω per phase, optimized for efficiency.
The hybrid stepper motor is suitable for various industrial applications, including CNC machinery, medical scanning equipment, printers, disk drives, and digital cameras, where controlled discrete torque and accurate positioning are critical.
Additional features include a 6 lead unipolar winding configuration, allowing multiple driver modes such as wave drive, full step, half step, and microstepping, enhancing control flexibility and smooth operation. This stepper motor offers a holding torque of 0.497 Nm, making it ideal for precision motion control in demanding environments.
Hybrid motor technology combining VR and PM characteristics. High holding torque of 0.497 Nm for steady positioning. Compact frame size of 56.4 x 56.4 mm and 51 mm depth for tight installations. Shaft diameter of 6.35 mm and length of 19 mm for mechanical compatibility.
Unipolar winding with a rated current of 850 mA for reliable performance. Compliance with UL and RoHS standards ensuring product safety and environmental responsibility. Manufactured in China with precise engineering standards.
Versatile industrial use in automation, robotics, and precise control systems.
This RS PRO hybrid stepper motor provides reliable, precise stepping motion ideal for industrial automation and control applications. Explore more RS PRO products and Stepper Motors for your manufacturing and engineering needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The holding torque of this model is 0.497 Nm, providing steady positioning for various applications.
This stepper motor has a precise stepping angle of 1.8°, allowing for accurate positioning in mechanical tasks.
The frame size of this unit is 56.4 x 56.4 mm with a depth of 51 mm, making it suitable for tight installations.
This hybrid stepper motor operates at a voltage of 6 V, ensuring compatibility with various systems.
The current rating for this stepper motor is 850 mA, optimizing its power consumption during operation.
It features a unipolar winding arrangement, which supports multiple driver modes such as wave drive, full step, half step, and microstepping.
The shaft diameter is 6.35 mm, and the shaft length is 19 mm, allowing for mechanical compatibility with various applications.
This model is certified to UL and RoHS standards, ensuring quality and compliance with safety and environmental regulations.
It is suitable for various industrial applications, including CNC machinery, medical scanning equipment, printers, disk drives, and digital cameras.
This stepper motor utilizes hybrid technology, combining characteristics of variable reluctance and permanent magnet motors.
The weight of this model is not specified in the provided information, so please confirm if this detail is critical for your application.
With a winding resistance of 29 Ω per phase, this model is optimized for efficient power consumption during operation.
