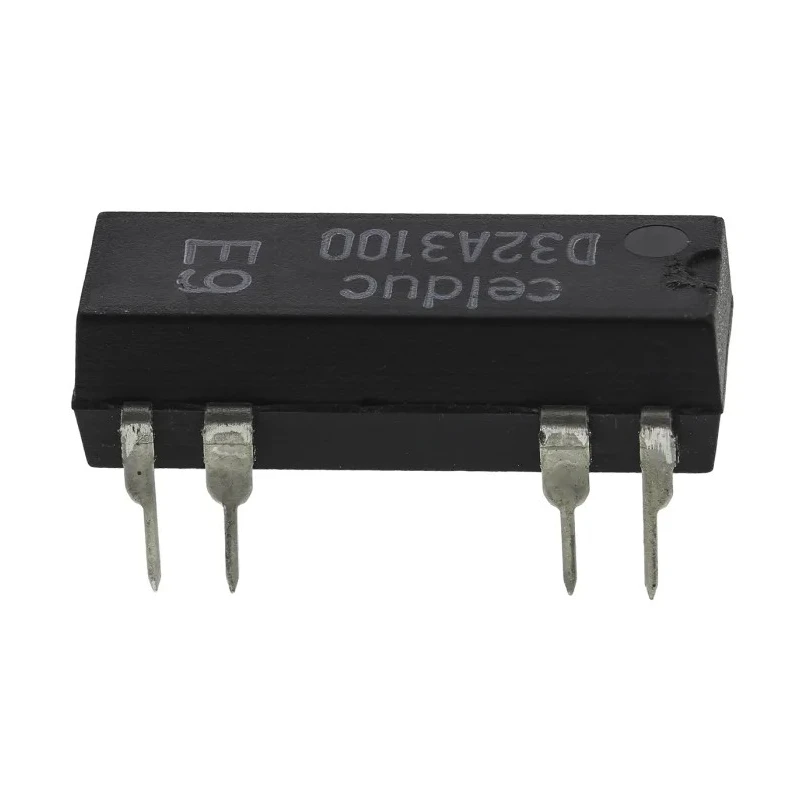

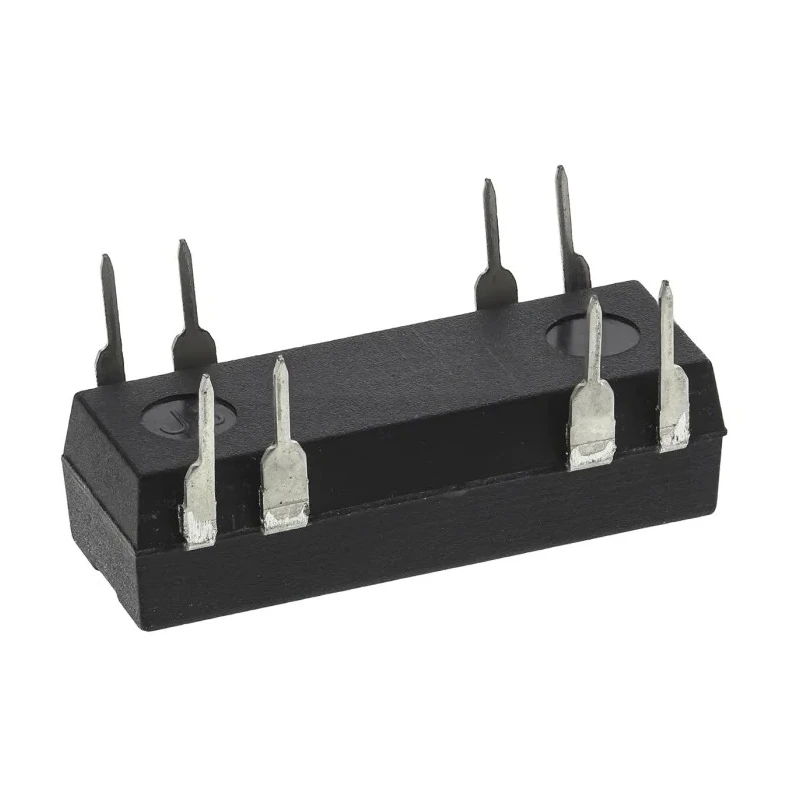

Celduc PCB Reed Relay 5V DC Coil DPST Contact Configuration 100V DC Max 0.5A Max 200 Ω Coil Resistance D32A3100

Celduc D32A3100 PCB Reed Relay is a high-performance relay designed for PCB mounting in industrial, laboratory, and automation systems. It features a 5V DC coil with a DPST contact configuration that supports a maximum of 100V DC voltage and 0.5A current. This relay offers reliable contact switching with a coil resistance of 200 Ω and a coil power of 10W. Its rapid operating time of 1ms makes it suitable for applications requiring quick response.

The relay is built to operate efficiently within a wide temperature range of -40°C to 70°C, ensuring durability in harsh working conditions. Its compact size, with dimensions of 19.1mm length and 6.4mm height, allows easy integration into tight PCB layouts. Non-latching design and coil-to-contact isolation voltage of 1.4kV DC provide safe and stable electrical isolation.

With a contact resistance of 150mΩ and solder-type terminals, assembly is straightforward and secure. Manufactured in France, the Celduc D32A3100 meets stringent quality benchmarks, making it ideal for electronics, automation, HVAC, and control gear applications.

Designed to handle a maximum of 100V DC voltage and 0.5A current. Coil resistance of 200 Ω with a coil power rating of 10W. Operating temperature range from -40°C to 70°C ensures reliable performance in diverse environments.

Provides quick switching with an operating time of 1ms. Compact dimensions, measuring 19.1mm length and 6.4mm height. Non-latching relay with an isolation voltage of 1.4kV DC from coil to contact. Contact resistance is maintained at 150mΩ for optimal electrical conductivity.

Terminal type is solder compatible for easy PCB integration. Manufactured in France with high-quality standards and robust construction. Explore the extensive range of Celduc relays and other high-quality electrical components on EnvMart for your industrial, laboratory, and automation needs.
