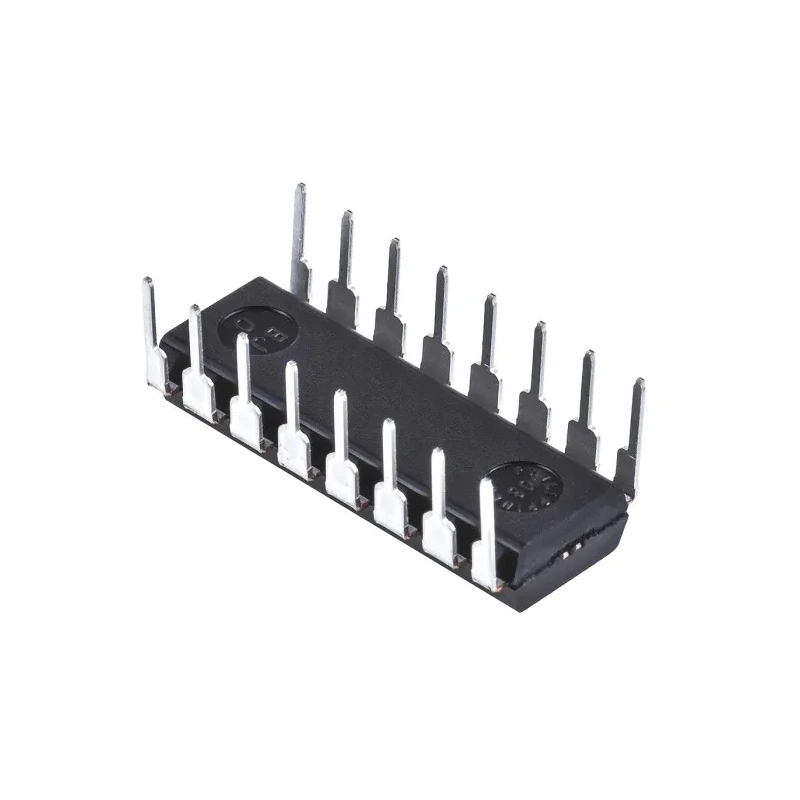

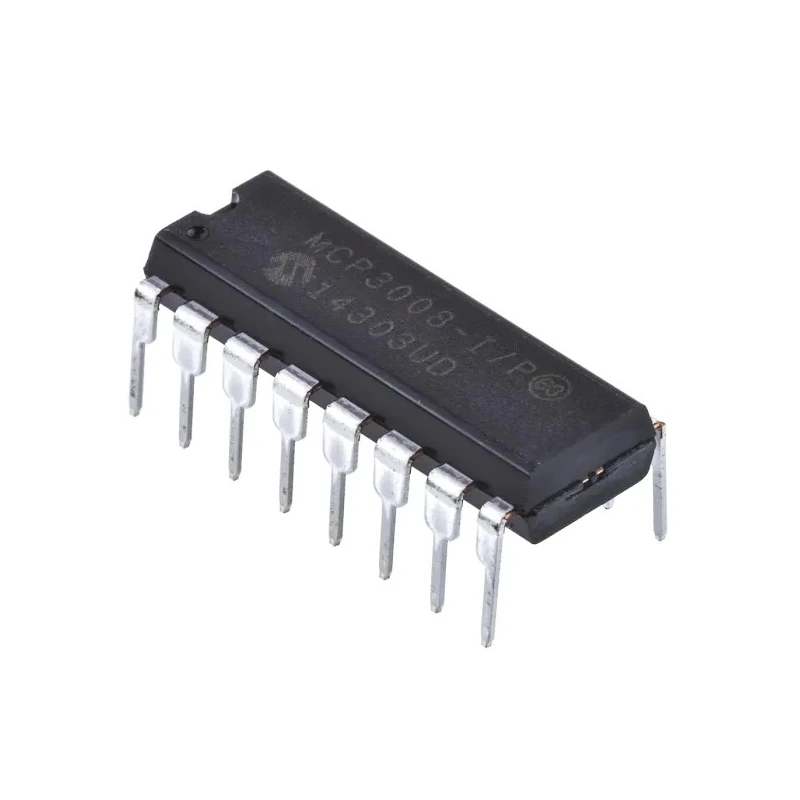

Microchip 8-Channel 10-bit SAR ADC 200 ksps Sampling Rate 16-Pin PDIP MCP3008-I/P

Microchip MCP3008-I/P is an 8-Channel successive approximation register (SAR) Analog-to-Digital Converter (ADC) featuring a 10-bit resolution and a high sampling rate of 200 kilosamples per second (ksps). Packaged in a 16-pin Plastic Dual Inline Package (PDIP), this device is ideal for embedded and industrial electronics requiring precise analog signal digitization.

The MCP3008 series ADC employs a SAR architecture known for its reliability and efficient conversion performance. It supports up to 8 independent input channels, making it highly versatile for multi-sensor systems and data acquisition applications. The device interfaces with microcontrollers via SPI protocol enabling easy integration into existing electronic designs.

Designed for through-hole mounting, the MCP3008-I/P simplifies prototyping and production of electronic circuits requiring Analog-to-Digital conversion. Operating conditions include a wide temperature range from -40°C to +85°C and a supply voltage from 5V to 5.5V, allowing usage in demanding environments including automotive applications certified to AEC-Q100 standards.

This ADC’s compact form factor, with a length of 19.1mm and height of 3.8mm, enables space-conscious circuit designs. It lacks certain certifications or approvals other than the automotive standard conformity but is a well-established component utilized in the electronics industry.

8 independent ADC channels provide versatile signal input options. 10-bit resolution ensures accurate digital representation of analog signals. Sampling rate of 200 ksps supports fast data acquisition. SAR architecture delivers reliable and efficient conversion performance.

Through-hole mounting with 16-Pin PDIP package allows easy PCB integration. Supports SPI interface for simple communication with microcontrollers. Wide operating temperature range from -40°C to 85°C suits harsh environments.

Supply voltage range from 5V to 5.5V for stable operation. Compliant with automotive standard AEC-Q100 for quality assurance. Compact dimensions: 19.1mm length, 3.8mm height ensure space-efficient design.

This ADC is widely used in industrial, laboratory, automotive, and embedded electronics for precise and efficient analog signal conversion. Explore more Microchip semiconductor products and Analog-to-Digital Converter options at EnvMart.
