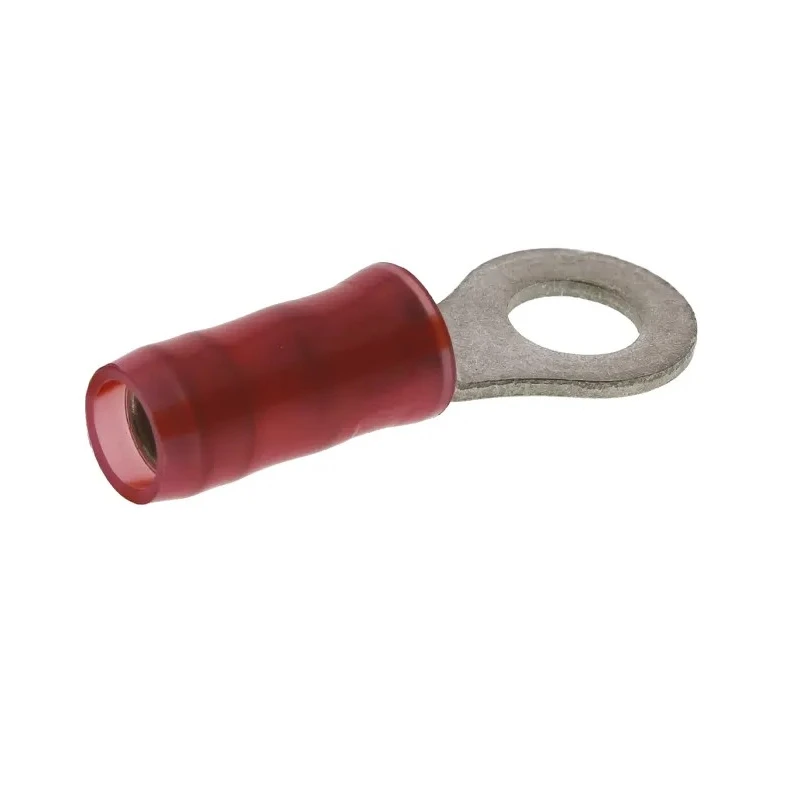

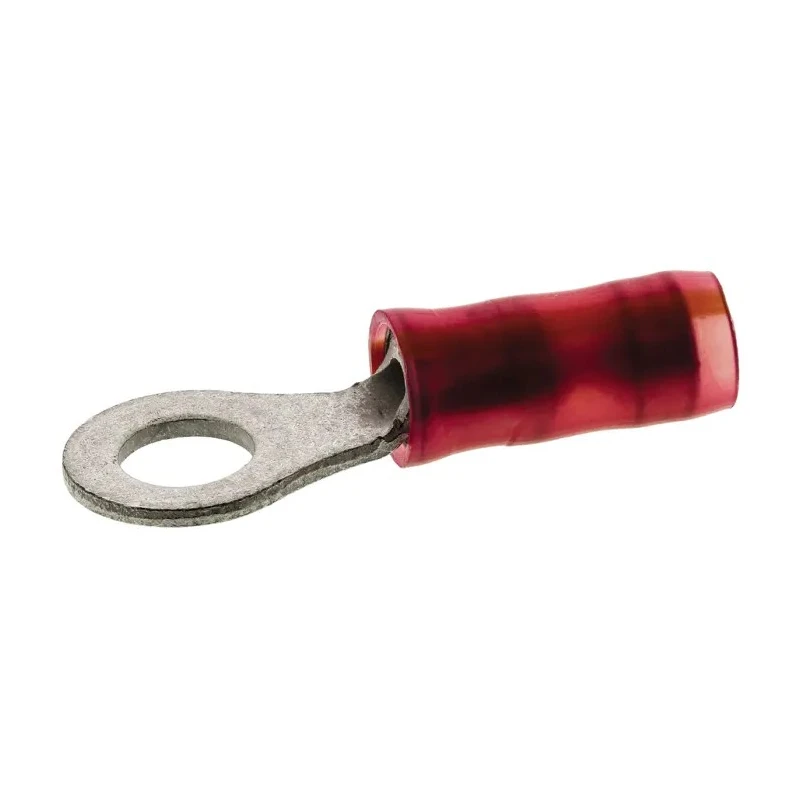

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size, 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red 1-320551-3

TE Connectivity 1-320551-3 PIDG insulated ring terminal is designed for reliable electrical wire termination with M4 stud size and wire compatibility ranging from 22 AWG to 16 AWG.

This ring terminal features a precision-formed copper body with tin plating to provide excellent conductivity and corrosion resistance. The nylon insulation in red color aids in quick wire size identification while improving electrical safety and wire support.

The internal serrations in the wire barrel provide maximum contact and mechanical strength post-crimp, reducing the risk of connection failure. Additionally, the copper sleeve enhances wire insulation support and prevents wire strand fraying.

High conductivity copper material ensures efficient electrical performance. Nylon insulation sleeve facilitates easy identification and protection. Serrated barrel enhances mechanical strength and contact reliability. Copper sleeve supports insulation and prevents wire fraying.

Funnelled entry design simplifies fast wire insertion for high-speed production. Rated for a maximum operating temperature of 105°C suitable for harsh industrial environments. Meets or exceeds MIL-T-7928 Type II specifications making it suitable for aerospace and transportation industries.

These ring terminals are ideal for instruments, control panels, power supplies, motors, lighting, and appliances. They ensure long-lasting wire connections critical in industrial, commercial, and manufacturing applications.

Originating from the United States, this product assures quality and performance in demanding settings. Explore more Ring Terminals and power connectors in the Electronics & Electricals category at EnvMart for comprehensive wiring solutions.
