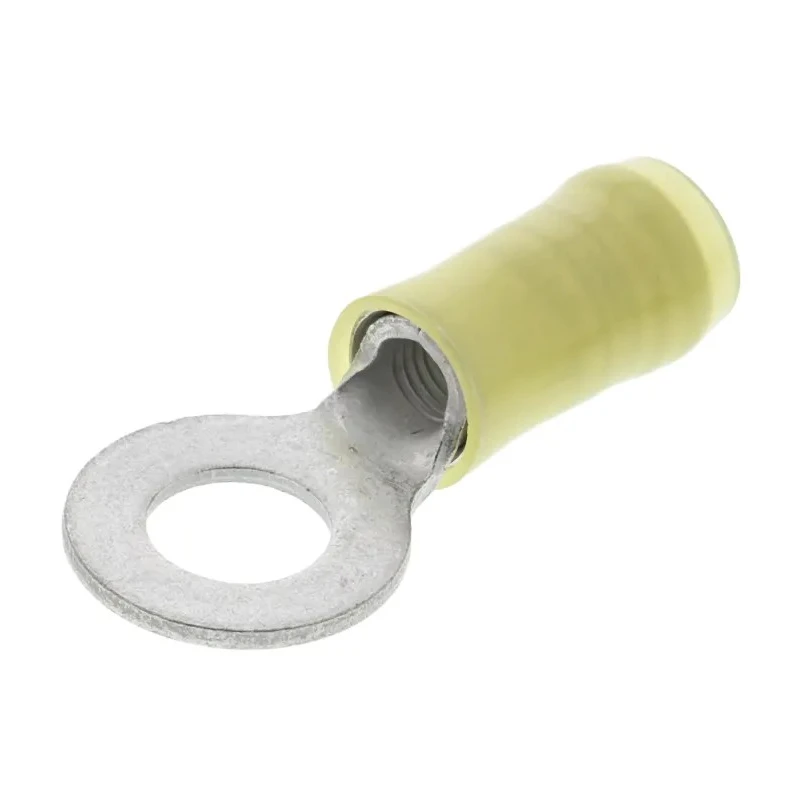

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 12 AWG 10 AWG Wire Size Yellow 35273
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 1.02mm |
| Model | 35273 |
| Insulation | Insulated |
| Overall Length | 30.18mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | CSA LR7189, RoHS, UL E13288 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.5mm |
| Inner Ring Diameter | 0.265mm |
| Stud Size | M6 |
| TE Connectivity Crimp Ring Terminal, 6mm Stud Size, YellowBrand | TE Connectivity |
Key Features
- Constructed with high conductivity copper body for reliable electrical performance.
- Insulated with durable nylon material to enhance wire insulation support and prevent fraying.
- Features serrated wire barrel to ensure maximum contact and tensile strength after crimping.
- Colour coded yellow sleeve for wire size and tooling identification.
- Funnelled wire entry providing easy and fast wire insertion during production.
- Suitable for temperatures up to 105°C ensuring safe operation in various environments.
- Complies with standards CSA LR7189, RoHS, and UL E13288 for quality assurance.
- Application versatility includes use in instruments, control panels, lighting, power supplies, transportation, aerospace, and appliances.
Product Description
TE Connectivity 35273 PIDG insulated ring terminal is engineered for consistent and reliable connections in demanding electrical applications. Featuring an M6 stud size and accommodating 12 AWG to 10 AWG wire sizes, this terminal offers a robust solution for wire termination needs.
The terminal's high conductivity copper body and barrel are precision-formed to maximize electrical performance. Inside, serrations in the wire barrel ensure maximum contact and tensile strength once crimped. The copper sleeve supports enhanced wire insulation and prevents fraying, while the yellow nylon outer sleeve simplifies wire size identification and tooling processes. Additionally, the funnelled entry design facilitates faster insertion of wires during high-speed manufacturing operations.
Rated for maximum operating temperatures of 105°C, this ring terminal meets important industry standards, including CSA LR7189, RoHS compliance, and UL E13288 certification, assuring users of its quality and durability.
Applications span multiple industrial sectors such as instrumentation and control systems, lighting, power supply units, panel boxes, transportation, lifting equipment, motor assemblies, aerospace, and various household appliances. This versatility underscores the terminal’s role as a dependable component in electronic and electrical assemblies.
High conductivity copper body for superior electrical performance. Nylon insulation sleeve in yellow for easy identification and enhanced insulation. Serrated wire barrel design for strong mechanical and electrical connection.
Funnelled wire entry enables quick and reliable wire insertion. Suitable for wire sizes ranging from 12 AWG to 10 AWG. Complies with industry standards for safety and performance. Maximum operating temperature of 105°C supports demanding applications.
Durable contact plating with tin for corrosion resistance. Overall length of 30.18 mm and thickness of 1.02 mm for precise compatibility.
This TE Connectivity PIDG ring terminal is ideal for industrial, laboratory, manufacturing, and commercial electrical applications requiring reliable power and signal connections. Explore further TE Connectivity products and Ring Terminals at EnvMart for comprehensive electrical connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this terminal is 105°C, making it suitable for various demanding applications.
This ring terminal accommodates wire sizes ranging from 12 AWG to 10 AWG, corresponding to a minimum wire size of 2.6 mm² and a maximum wire size of 6.6 mm².
The contact material of this terminal is copper, which provides high conductivity for reliable electrical performance.
The terminal is insulated with durable nylon, which enhances wire insulation and prevents fraying.
This terminal complies with CSA LR7189, RoHS, and UL E13288 standards, ensuring quality and safety in electrical applications.
The overall length of this terminal is 30.18 mm, which is designed for precise compatibility in installations.
The thickness of this terminal is 1.02 mm, which contributes to its structural integrity during use.
The stud size for this terminal is M6, which is suitable for various mounting applications.
The serrated wire barrel design ensures maximum contact and tensile strength after crimping, enhancing the reliability of the connection.
This terminal is versatile and can be used in instruments, control panels, lighting, power supplies, transportation, aerospace, and appliances.
The insulation sleeve is yellow, which helps in wire size identification and tooling processes during installation.
The contact plating for this terminal is tin, which provides corrosion resistance and enhances durability.
