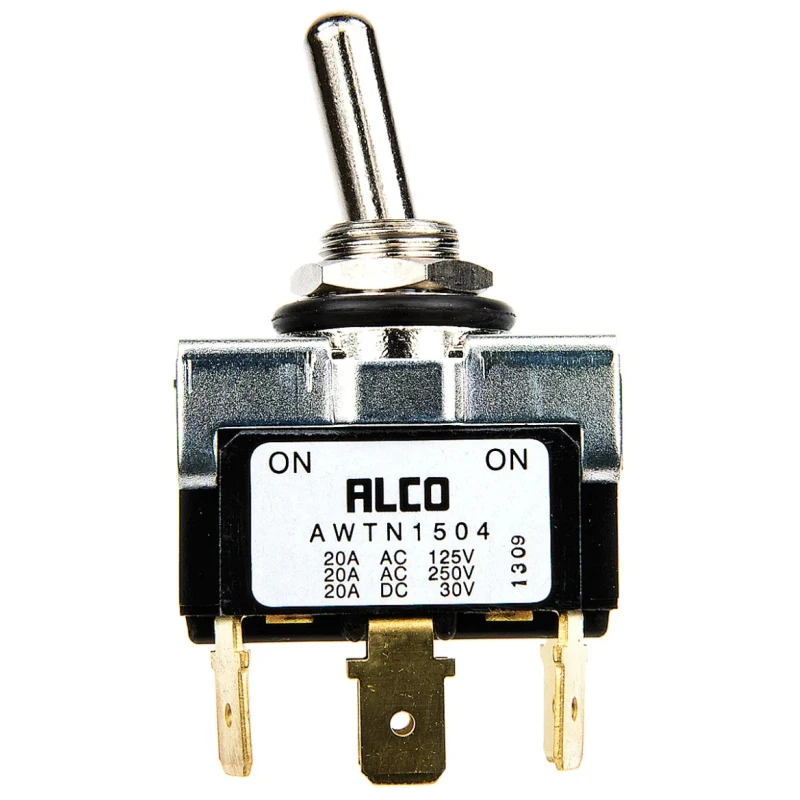

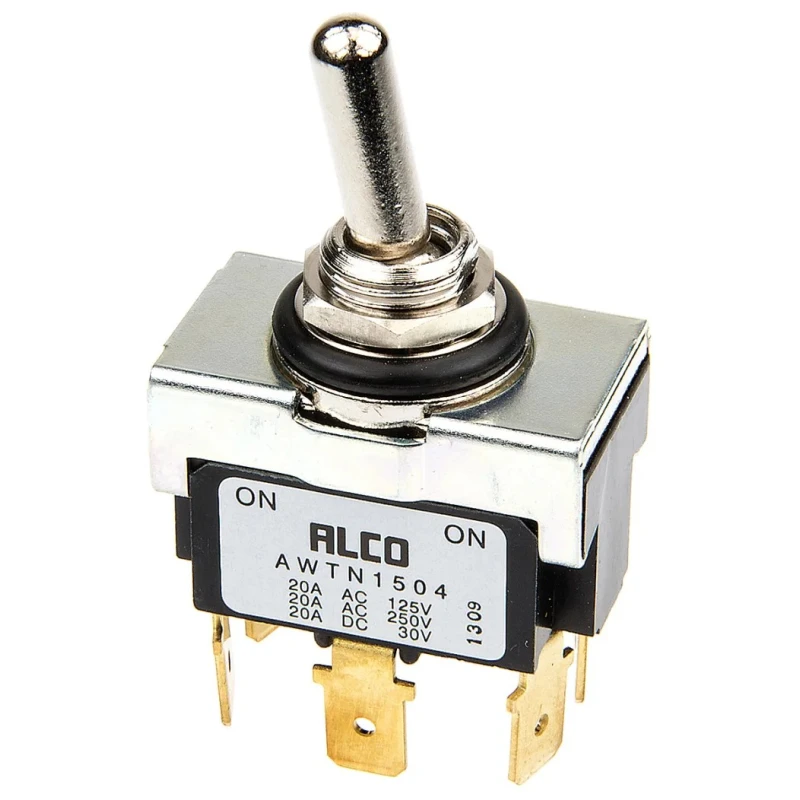

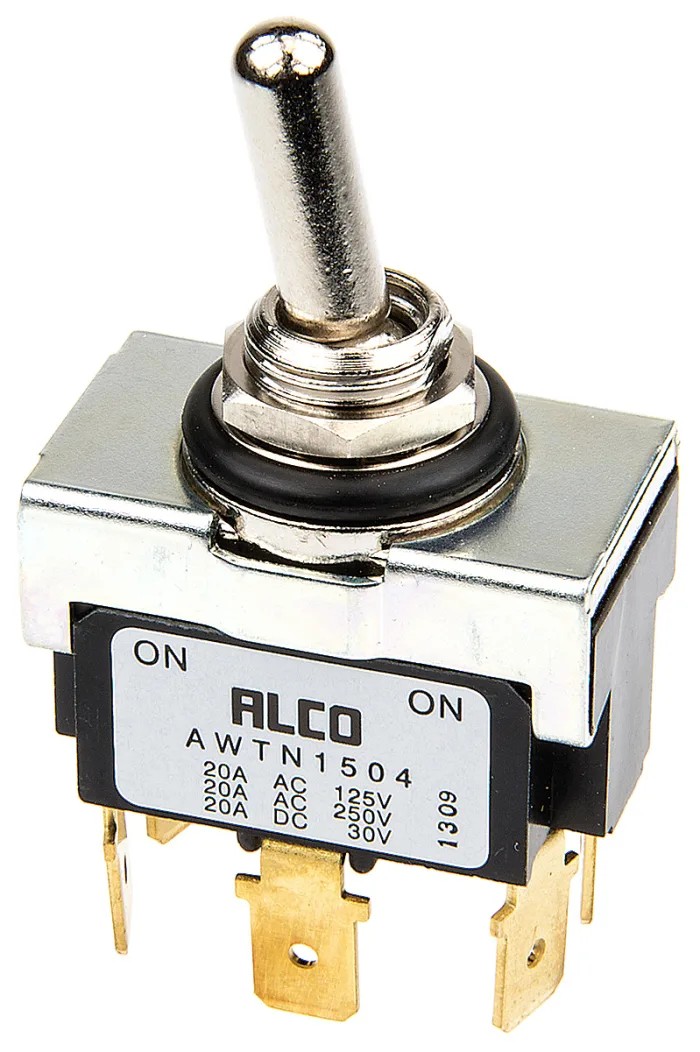

TE Connectivity Toggle Switch Panel Mount On-On DPDT Tab Terminal 30 V dc AWTN1504
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Length | 17.48mm |
| Model | AWTN1504 |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | AWT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Tab |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 17.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 20A |
| Mechanical Life | 40000Cycles |
| Actuator Material | Brass |
| TE Connectivity Toggle Switch, Panel Mount, Latching, DPDT, Tab TerminalBrand | TE Connectivity |
Key Features
- The switch features a robust brass actuator and glass filled polyester case.
- It offers a contact rating of 20A suitable for various electrical applications.
- Mechanical life is rated at 40,000 cycles ensuring reliable long-term operation.
- Rated IP67, this switch provides waterproof and dustproof protection.
- Operating temperature range spans from -20°C to a maximum of 70°C.

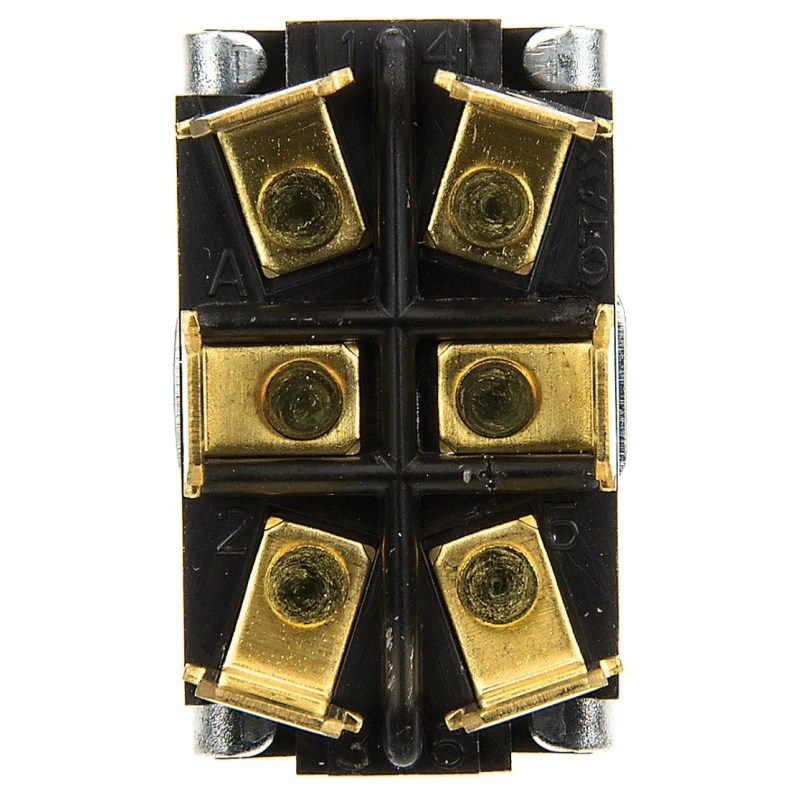

- Connection is via tab terminals compatible with 1/4in. receptacles or soldering.
- The switch complies with RoHS standards reflecting environmental compliance.
- Ideal for use in industrial, automation, and electrical control panel applications.
Product Description
TE Connectivity AWTN1504 toggle switch is a high-quality panel mount device offering On-On DPDT switching function suitable for both industrial and automation electrical systems. Rated at 30 V dc and 20A contact current, this robust switch ensures reliable power control with a durable brass actuator and a glass filled polyester case designed for mechanical endurance.
The actuator length is 17.5 mm, and the overall switch length is 17.48 mm, providing compact form factor for integration into control panels. It features an IP67 protection rating, making it waterproof and dustproof, ideal for use in harsh environments requiring dust and moisture resistance.
With an operating temperature range from -20°C to 70°C and a mechanical life expectancy of 40,000 cycles, the switch supports long-term use in demanding electrical applications. Electrical connection is facilitated via tab terminals that accommodate 1/4 inch receptacles or can be soldered based on application needs.
The switch meets RoHS compliance standards, guaranteeing reduced hazardous substances in manufacturing, appealing to eco-conscious industrial users. Its double-pole double-throw (DPDT) configuration provides versatility in circuit control, suitable for switching multiple lines or complex automation systems.
Manufactured in China, this TE Connectivity toggle switch serves well in industrial, laboratory, automation, and electrical panel installations, delivering precision and durability for controlling electrical power circuits.
The switch features a robust brass actuator and glass filled polyester case. It offers a contact rating of 20A suitable for various electrical applications. Mechanical life is rated at 40,000 cycles ensuring reliable long-term operation.
Rated IP67, this switch provides waterproof and dustproof protection. Operating temperature range spans from -20°C to a maximum of 70°C. Connection is via tab terminals compatible with 1/4in. receptacles or soldering. The switch complies with RoHS standards reflecting environmental compliance.
Ideal for use in industrial, automation, and electrical control panel applications. Explore more Toggle Switches and related industrial electrical components at EnvMart for reliable and certified products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch has a contact rating of 20A, making it suitable for various electrical applications.
It operates within a temperature range of -20°C to 70°C.
This model features tab terminals that are compatible with 1/4 inch receptacles or can be soldered.
The switch is rated IP67, providing waterproof and dustproof protection.
The mechanical life of this switch is rated at 40,000 cycles, ensuring reliable long-term operation.
The actuator length is 17.5 mm.
The overall length of the switch is 17.48 mm.
It complies with RoHS standards, reflecting environmental compliance.
The contact DC voltage rating is 30V dc.
This model is ideal for use in industrial, automation, and electrical control panel applications.
The switch features a brass actuator and a glass filled polyester case.
This toggle switch is manufactured in China.
