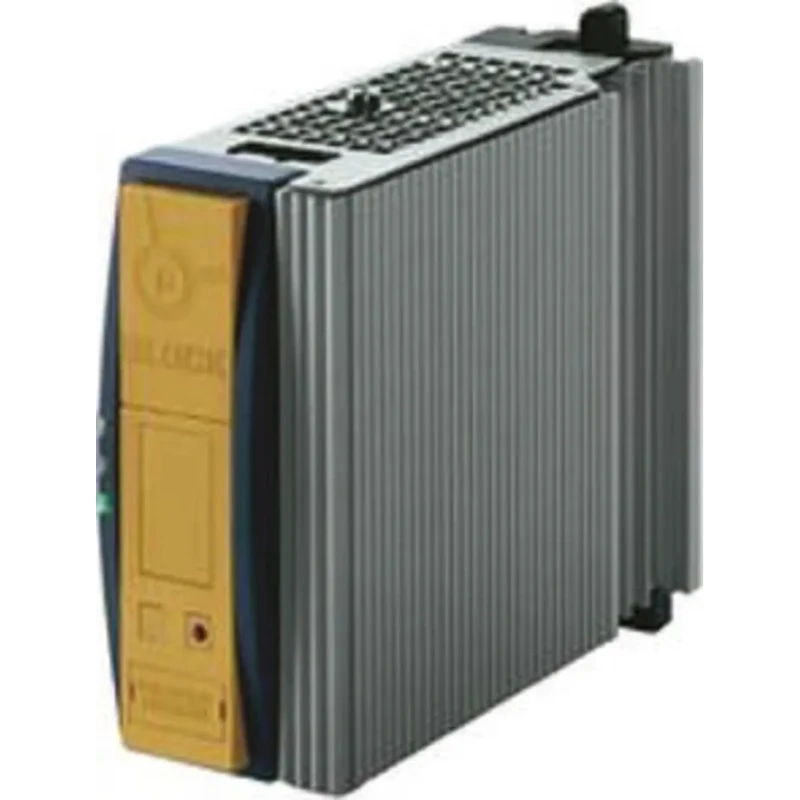

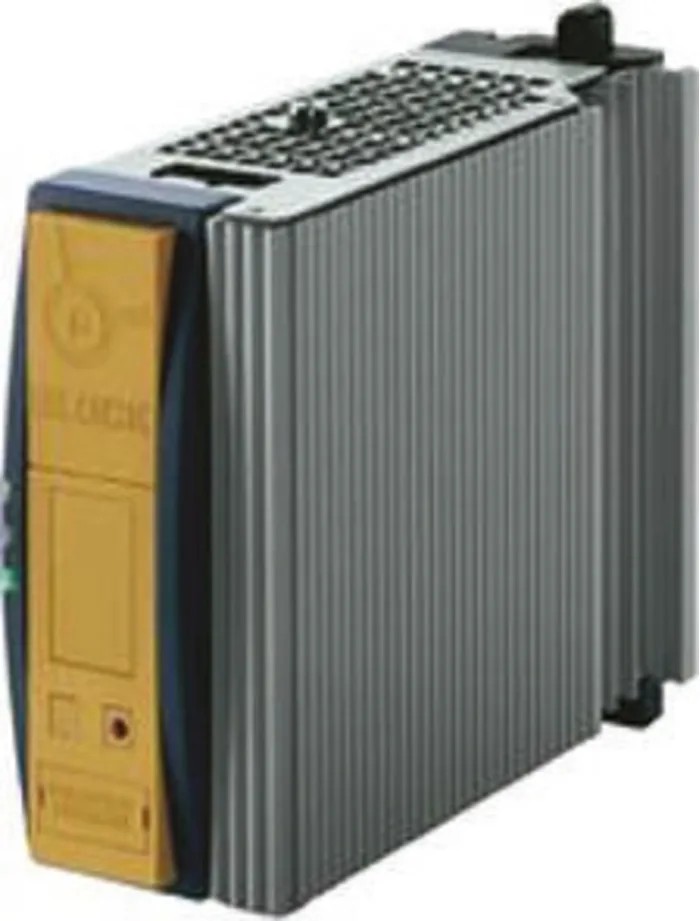

Block PVSB 400 Switched Mode DIN Rail Power Supply 550V AC Input 28.8V DC Output 20 A 480 W PVSB 400/24-20

Free Delivery in India | Lowest Global Shipping Charges

Block PVSB 400 Switched Mode DIN Rail Power Supply 550V AC Input 28.8V DC Output 20 A 480 W PVSB 400/24-20

Name: Block PVSB 400 Switched Mode DIN Rail Power Supply 550V AC Input 28.8V DC Output 20 A 480 W PVSB 400/24-20
Brand: Block
SKU: 345918
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supplies Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Power	480W
Efficiency	90%
Height	127mm
Model	PVSB 400/24-20
Depth	127mm
Width	77mm
Series	PVSB 400
Output Current	20A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-10°C
Number of outputs	1
Maximum Input Voltage	550V ac
Electrical Phase	3
Maximum Output Voltage	28.8V dc
Minimum Input Voltage	340V ac

Key Features

Compact and slim design enables easy DIN rail mounting with high installation flexibility.
Supports three-phase AC input voltage ranging from 340V to 550V.
Provides up to 200% real power boost for 4 seconds for surge demands.
Features a stabilized and adjustable output voltage for precise equipment performance.
Equipped with a service-friendly spring-loaded connector system for easy wiring.
Operates efficiently with a 90% conversion efficiency, reducing energy losses.
Rated to operate within an ambient temperature range of -10°C to 70°C.
Constructed with high-quality components ensuring reliable power supply in industrial environments.

Product Description

Block PVSB 400/24-20 Switched Mode DIN Rail Power Supply is a high-performance power supply solution designed for industrial and commercial use. It supports a wide AC input voltage range of 340 V to 550 V (three-phase) and delivers a stabilized DC output voltage of 28.8 V at 20 A current, providing a total power output of 480 W. This power supply belongs to the advanced PVSB 400 series, which is one of the most technically sophisticated and cost-effective systems available on the market.

Its compact and slim design allows for easy mounting on DIN rails with enhanced installation flexibility. The unit is equipped with a service-friendly spring-loaded connector system to facilitate straightforward wiring and maintenance, minimizing downtime.

The power supply features an adjustable output voltage and is capable of delivering up to 200% of its rated power for 4 seconds to accommodate transient surge demands in connected equipment. Its efficiency rating of 90% ensures energy-efficient operation, reducing power losses and heat generation.

The device is built for durability and reliability with an operational temperature range from -10°C to 70°C, suitable for various industrial environments. Its dimensions are compact with a height of 127 mm, width of 77 mm, and depth of 127 mm, optimizing space utilization in electrical panels.

Compact DIN rail mount design. Wide AC input voltage range (340 - 550 V AC). Stabilized and adjustable 28.8 V DC output voltage. 20 A continuous output current capability. Supports power boosting up to 200% for 4 seconds.

High efficiency of 90% for energy saving. Spring-loaded connector for easy wiring. Operating temperature range from -10°C to 70°C. Robust construction for industrial applications. Manufactured in Germany with strict quality controls.

This power supply is suitable for industrial automation, manufacturing lines, electrical distribution systems, and other demanding commercial applications requiring reliable and efficient power delivery. Block's PVSB 400 series is recognized for its high power reserve and communication capabilities, ensuring optimum system uptime and performance.
