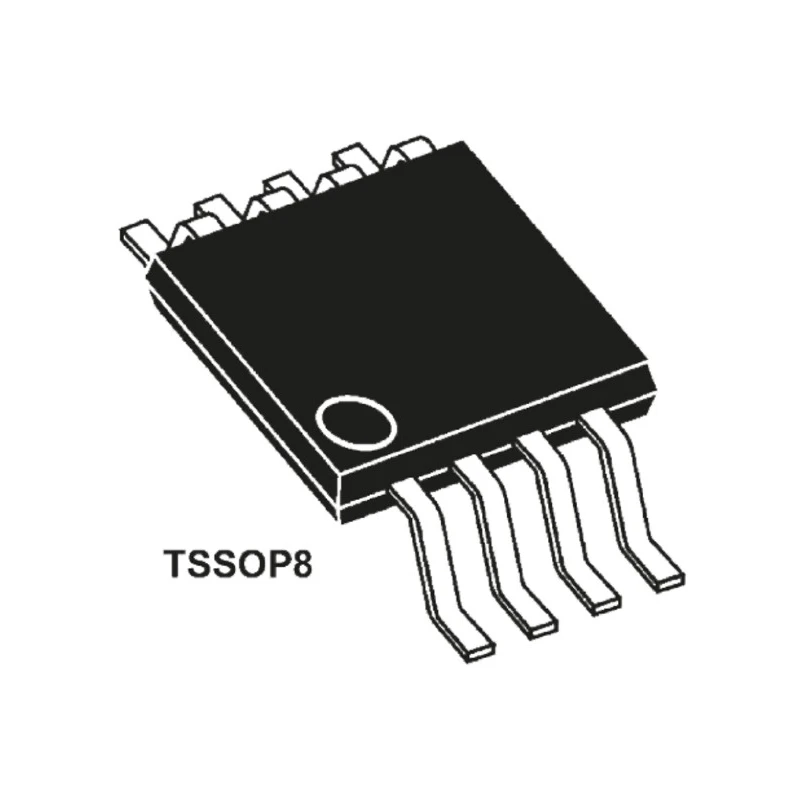

Microchip Operational Amplifier MCP6022-I/ST 10 MHz Gain Bandwidth, 8-Pin TSSOP 5.5V Surface Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 3mm |
| Model | MCP6022-I/ST |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | MCP6022 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
Key Features
- Features two channels in a compact 8-pin TSSOP package for space-efficient PCB design.
- Provides a gain bandwidth product of 10 MHz suitable for precision amplification.
- Operates within a voltage range of 3 V to 5.5 V for flexible power supply options.
- Offers high slew rate of 7 V/μs ensuring fast response to input signals.
- Exhibits ultra-low input bias current and offset current of 1 pA each for improved accuracy.
- Designed to operate reliably from -40°C to 85°C operating temperature range.
- Compliant with RoHS environmental standards, making it suitable for lead-free manufacturing.
- Output current up to 30 mA supports various load requirements in industrial applications.
Product Description
Microchip MCP6022-I/ST Operational Amplifier is a precision dual-channel device packaged in an 8-pin TSSOP surface mount package, engineered for versatile industrial and commercial electronics applications.
This operational amplifier features a gain bandwidth product of 10 MHz, supporting high-speed analog signal processing in instrumentation, control systems, and signal conditioning circuitry. Its wide supply voltage range from 3 V to 5.5 V allows operation in low voltage battery-powered devices as well as standard industrial supplies.
The device features an ultra-low input bias current and offset voltage, ensuring high accuracy and stability in sensitive sensor interface circuits. The 7 V/μs slew rate facilitates rapid response to dynamic signal changes, making it suitable for audio processing, active filters, and high-fidelity amplifier stages.
Designed for reliability, the MCP6022-I/ST supports operating temperatures from -40°C to 85°C, ideal for harsh industrial environments. It is RoHS compliant, aligning with environmental and safety regulations for electronics manufacturing.
This operational amplifier draws output currents up to 30 mA, accommodating a broad range of load conditions in embedded and instrumentation applications. Two-channel dual operational amplifier in 8-pin TSSOP package. High gain bandwidth product of 10 MHz for accurate signal amplification.
Wide operating voltage from 3 V to 5.5 V for flexibility. Fast slew rate of 7 V/μs for quick response. Extremely low input bias and offset currents of 1 pA each for precision. Wide operating temperature range of -40°C to +85°C suitable for industrial use.
RoHS compliant for environmentally responsible manufacturing. Supports output current up to 30 mA for diverse applications.
This Microchip operational amplifier MCP6022-I/ST is ideal for applications in industrial instrumentation, electronic controls, consumer electronics, laboratory analysis equipment, and PCB designs requiring compact and precise analog amplification.
Explore the Electronics & Electricals category on EnvMart for similar high-performance Operational Amplifiers and semiconductor components suitable for advanced embedded systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6022-I/ST has a gain bandwidth product of 10 MHz, suitable for high-speed analog signal processing applications.
This model operates within a voltage range of 3 V to 5.5 V, providing flexibility for various power supply options.
The operational amplifier can provide an output current of up to 30 mA, accommodating a variety of load conditions in applications.
It is designed to operate reliably within a temperature range of -40°C to 85°C, making it suitable for harsh industrial environments.
This operational amplifier has dimensions of 1 mm in height, 3 mm in length, and 4.4 mm in width, packaged in an 8-pin TSSOP format.
The slew rate of this model is 7 V/μs, allowing for rapid response to dynamic signal changes.
It is packaged in an 8-pin TSSOP surface mount configuration, which is compact for space-efficient PCB design.
The operational amplifier features an ultra-low input bias current of 1 pA, which enhances accuracy in sensitive applications.
Yes, this operational amplifier is compliant with RoHS environmental standards, making it suitable for lead-free manufacturing.
It is ideal for applications in industrial instrumentation, electronic controls, consumer electronics, and laboratory analysis equipment.
This operational amplifier features two channels, making it a dual operational amplifier.
The MCP6022-I/ST is part of the MCP6022 series of operational amplifiers from Microchip.
