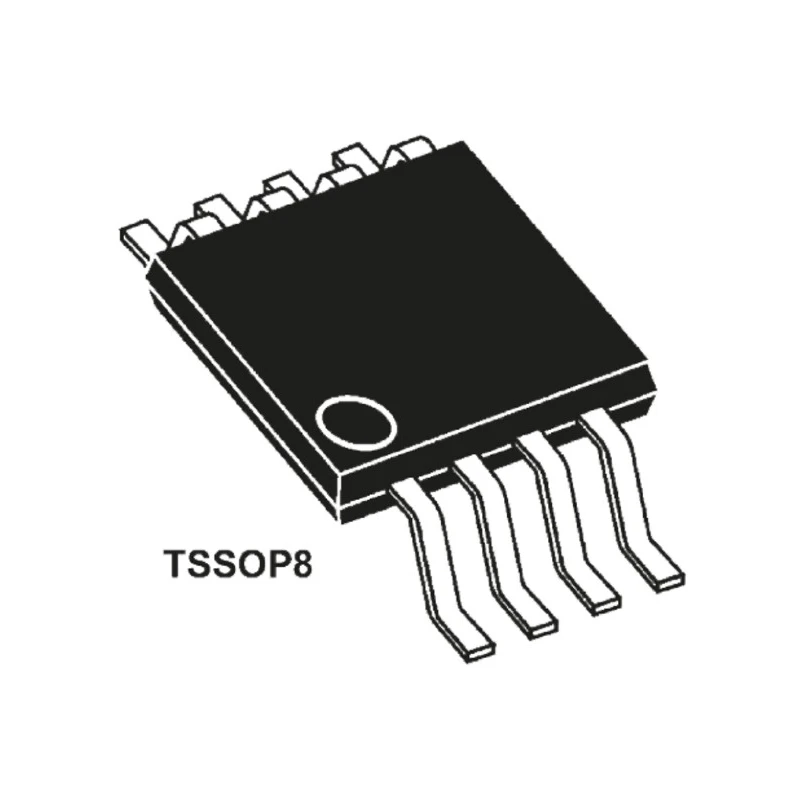

Microchip Operational Amplifier, 2 Channels, 10 MHz Bandwidth, 8-Pin TSSOP, 3-5.5V Supply MCP6022-I/ST
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 3mm |
| Model | MCP6022-I/ST |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | MCP6022 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
Key Features
- Operates on a supply voltage range of 3V to 5.5V for flexible power options.
- Features a gain bandwidth product of 10 MHz suitable for high-speed amplification.
- Low input bias current of 1 pA enhances signal accuracy.
- Slew rate of 7 V/μs enables fast response in dynamic applications.
- Compact dimensions with length 3 mm, width 4.4 mm, and height 1 mm fit densely packed circuit boards.
- Wide operating temperature range from -40°C to 85°C suitable for industrial environments.
- Maximum output current of 30 mA supports moderate load driving capability.
- RoHS compliant ensuring environmental and safety standards.
Product Description
Microchip MCP6022-I/ST is a high-performance operational amplifier designed for applications requiring dual channels and a frequency bandwidth of 10 MHz. Housed in a compact 8-pin TSSOP surface mount package, the amplifier operates efficiently within a supply voltage range of 3 to 5.5 volts, making it suitable for various low power and portable electronics.
The device features a low input bias current of 1 pA and an input offset voltage of 500 μV, which ensures high precision in signal amplification tasks. Its slew rate of 7 V/μs provides rapid voltage change response, ideal for fast signal processing in industrial, laboratory, and commercial electronics sectors.
Measuring only 3 mm in length, 4.4 mm in width, and 1 mm in height, the MCP6022-I/ST allows dense integration in printed circuit boards while maintaining robust thermal performance from -40°C to 85°C operating temperatures.
This operational amplifier can deliver up to 30 mA of output current, providing sufficient drive for most analog signal interfacing requirements. It complies with RoHS standards, confirming its manufacture with environmentally responsible materials and processes.
Operates at a supply voltage between 3 V and 5.5 V for wide compatibility. Dual channel configuration for flexible circuit design. 10 MHz gain bandwidth product ensures signal fidelity in high-speed applications. Low input bias current maximizes precision in sensitive circuits.
Compact 8-pin TSSOP package supports surface mount assembly. Wide temperature range suits industrial and commercial uses. Output current rating of 30 mA supports diverse load needs. RoHS compliant for environmental safety standards.
This product is ideal for applications in industrial automation, instrumentation, data acquisition systems, and general analog circuit designs. For further enhancements and compatible designs, explore the full range of Microchip Operational Amplifiers.
Browse our Electronics & Electricals category for more high-quality semiconductor amplifiers and related components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6022-I/ST has a gain bandwidth product of 10 MHz, suitable for high-speed amplification applications.
This model operates on a supply voltage range of 3V to 5.5V, providing flexibility for various power options.
The input bias current of the MCP6022-I/ST is 1 pA, which enhances signal accuracy in sensitive applications.
It can deliver a maximum output current of 30 mA, supporting moderate load driving capability.
This operational amplifier measures 3 mm in length, 4.4 mm in width, and 1 mm in height, making it suitable for densely packed circuit boards.
The MCP6022-I/ST operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The slew rate of this operational amplifier is 7 V/μs, enabling fast response in dynamic applications.
It is housed in an 8-pin TSSOP surface mount package, facilitating efficient assembly on circuit boards.
Yes, this operational amplifier is RoHS compliant, ensuring it meets environmental and safety standards.
The MCP6022-I/ST features a dual channel configuration, allowing for flexible circuit design.
The input offset voltage of the MCP6022-I/ST is 500 μV, which contributes to its precision in signal amplification tasks.
This operational amplifier is ideal for applications in industrial automation, instrumentation, data acquisition systems, and general analog circuit designs.
