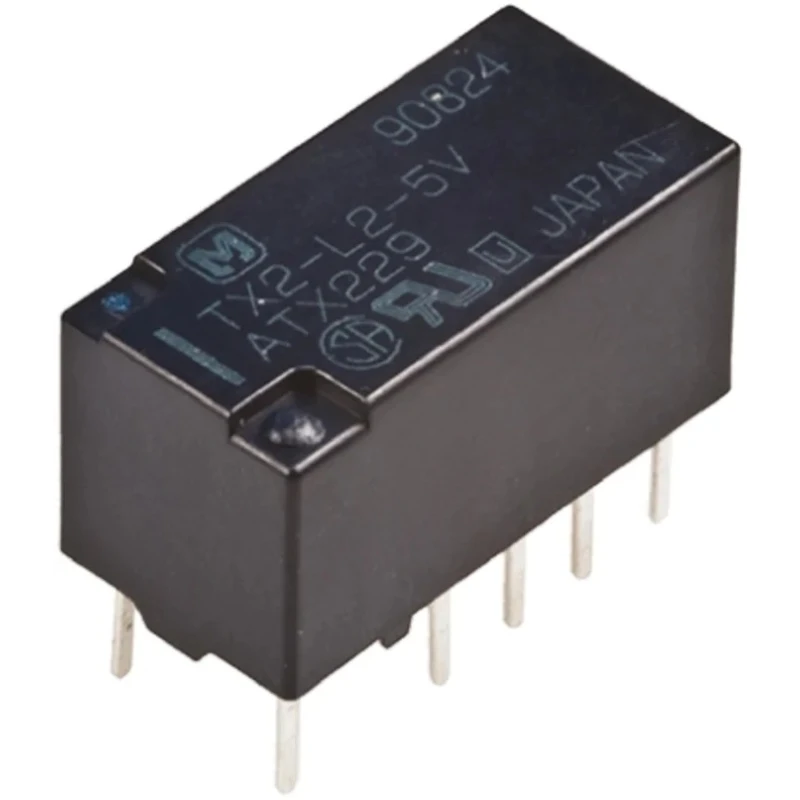

Panasonic Signal Relay PCB Mount 5V DC Coil 2A DPDT Gold Plated Contacts TX2-L-5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 8.2mm |
| Length | 15mm |
| Model | TX2-L-5V |
| Width | 7.4mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | TX |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | Through Hole |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 250Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 100mW |
| Switching Power | 60W |
| UL recognised, | CSA,:BSI |
Key Features
- Compact PCB mount design for secure and reliable installation.
- Gold plated contacts ensure superior conductivity and corrosion resistance.
- Operates within a temperature range of -40°C to 85°C.
- High switching power capacity of 60W with 2A switching current.
- Low coil power consumption of 100mW enhancing energy efficiency.
- Robust construction providing excellent vibration and shock resistance.
- Sealed design allows for automatic washing processes.
- Complies with RoHS standards for environmental safety.
Product Description
Panasonic TX2-L-5V is a high-performance signal relay designed for PCB mounting with a 5V DC coil voltage and a double pole double throw (DPDT) contact configuration. This relay offers a switching current of 2A and is built to handle up to 60W switching power, making it suitable for a wide range of industrial and commercial applications.
Measuring 15mm in length, 7.4mm in width, and 8.2mm in height, it features gold plated contacts that ensure low contact resistance of 100mΩ and enhance durability against corrosion. The coil resistance is 250Ω, with a coil power consumption of just 100mW, highlighting its efficient design.
This relay operates reliably within temperatures ranging from -40°C to 85°C and supports switching AC voltages up to 250V and DC voltages up to 220V. Its through-hole terminal type provides secure PCB mounting. The TX Series relay is known for high sensitivity and outstanding surge resistance with a 2 kV breakdown voltage between the contact and coil.
Its robust sealed construction offers excellent resistance to vibration and shock and supports automatic washing, ideal for stringent industrial environments. This product is RoHS compliant and made in Japan, guaranteeing quality and environmental standards.
Typical application areas include communications equipment, automotive systems, security devices, audiovisual equipment, medical instruments, and various home appliances. The relay’s excellent contact capacity and reliability make it a versatile component for signal conditioning and control tasks in electronics and electrical systems.
Compact PCB mounting design with 5V DC coil. Gold plated contacts for enhanced conductivity and corrosion resistance. Wide operating temperature range from -40°C to 85°C. Supports 2A switching current and 60W switching power.
Low coil power consumption of 100mW. Exceptional vibration and shock resistance provided by sealed construction. Compatible with automatic washing processes. RoHS certified for environmental compliance. Manufactured in Japan ensuring high-quality standards.
For those seeking reliable and efficient Signal Relays for PCB applications, the Panasonic TX2-L-5V offers excellent performance and durability. Discover more industrial-grade relays and electrical components in our Electronics & Electricals catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TX2-L-5V relay has a switching current capacity of 2A.
It can handle a maximum switching power of 60W.
This relay measures 15mm in length, 7.4mm in width, and 8.2mm in height.
The coil voltage for the TX2-L-5V relay is 5V DC.
It operates reliably within a temperature range of -40°C to 85°C.
The relay features a double pole double throw (DPDT) contact configuration.
The coil power consumption is 100mW, which enhances energy efficiency.
It supports PCB mounting with a through-hole terminal type.
It supports switching AC voltages up to 250V and DC voltages up to 220V.
Yes, it complies with RoHS standards for environmental safety.
The contacts are made from gold-plated material, ensuring superior conductivity and corrosion resistance.
It is suitable for applications in communications equipment, automotive systems, security devices, audiovisual equipment, medical instruments, and various home appliances.
