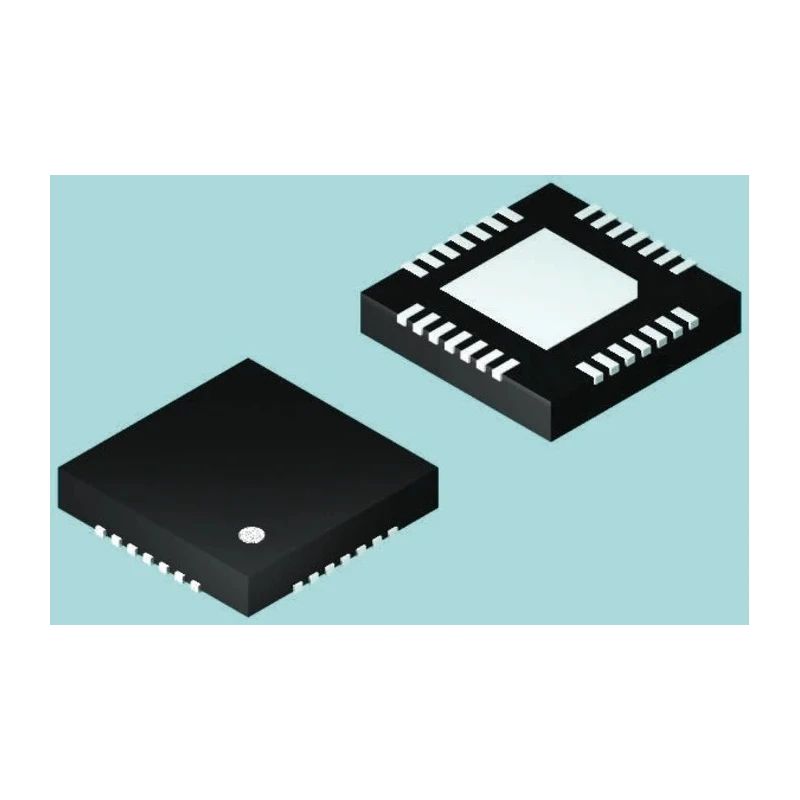

Microchip PIC18F1320-I/ML 8-Bit PIC Microcontroller 40 MHz 8 kB FLASH 256 B RAM 28-Pin QFN PIC18F1320-I/ML
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 6mm |
| Model | PIC18F1320-I/ML |
| Width | 6mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 8, 256kB |
| Maximum Clock Frequency | 40MHz |
| Number of Programmable I/Os | 16 |
| Analogue Comparators | 3 |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 7 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Features an 8-bit PIC core with RISC architecture for efficient processing.
- Equipped with 256-bit RAM and 8 kB program memory of FLASH type.
- Includes 28-pin QFN package for surface mount applications.
- Supports 16 programmable I/Os and 7 analog-to-digital converters with 10-bit resolution.
- Operates within temperature range from -40°C to 85°C ensuring industrial suitability.
- Maximum supply voltage is 5.5 V with a minimum of 1.8 V for wide power compatibility.
- Includes 4 timers, 3 analog comparators, and EUSART interface for communication.
- Maximum power dissipation rated at 800 mW for reliable operation.
Product Description
Microchip PIC18F1320-I/ML is a high-performance 8-bit PIC microcontroller designed for applications requiring reliable processing speed and memory capacity. Operating at a clock frequency of 40 MHz, it delivers efficient performance using a RISC instruction set architecture. The device includes 8 kB of FLASH program memory and 256 bits of RAM, suitable for embedded control applications.
Housed in a compact 28-pin QFN surface-mount package, this microcontroller allows for optimized PCB layouts in industrial, automotive, and consumer electronics contexts. It features 16 programmable input/output pins providing flexibility for interfacing with external devices.
The PIC18F1320-I/ML is equipped with 7 analog-to-digital converters (10-bit resolution) and 3 analog comparators for advanced signal measurement and control functionality. It supports the EUSART communication interface for serial data transfer, enhancing connectivity options.
Designed to operate over a wide temperature range from -40°C to 85°C, it meets industrial temperature standards. The device's power requirements range from 1.8 V minimum to a maximum of 5.5 V supply voltage, with a maximum power dissipation of 800 mW to support energy-efficient designs.
Its integrated features include 4 timers for precise timing control in complex embedded applications. The small footprint of 6 mm × 6 mm (width and length) with a 950 μm height facilitates usage in compact electronic assemblies. The program memory type is FLASH, enabling reprogramming and flexible firmware updates.
The Microchip PIC18F1320-I/ML microcontroller is ideal for various industrial automation, consumer electronics, automotive control systems, and embedded equipment requiring robust performance and versatile interface options.
Features an 8-bit PIC core with efficient RISC architecture. 40 MHz maximum clock frequency for high-speed operation. 8 kB program memory with 256-bit RAM availability. 28-pin QFN surface mount package for compact applications.
Wide operating temperature range from -40°C to 85°C. Supports 7 ADC channels and 3 analog comparators. Four timers and EUSART serial communication interface. Maximum supply voltage of 5.5 V and minimum of 1.8 V. Power dissipation up to 800 mW.
Explore and compare the Microchip PIC18F1320-I/ML microcontroller among other Microcontrollers at EnvMart for industrial electronics and embedded system projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 40 MHz.
It features 8 kB of FLASH program memory.
It operates within a temperature range from -40°C to 85°C.
The PIC18F1320-I/ML is housed in a 28-pin QFN surface-mount package.
The microcontroller requires a minimum supply voltage of 1.8 V and a maximum of 5.5 V.
It includes 16 programmable input/output pins.
The maximum power dissipation is rated at 800 mW.
It utilizes a RISC instruction set architecture for efficient processing.
It supports the EUSART communication interface for serial data transfer.
The height of this microcontroller is 950 μm.
