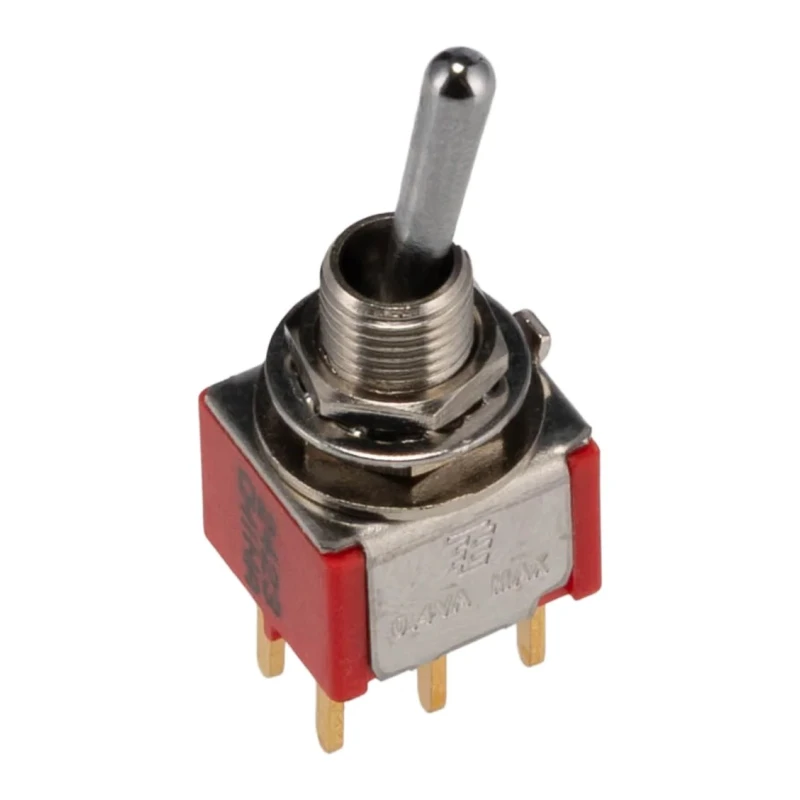

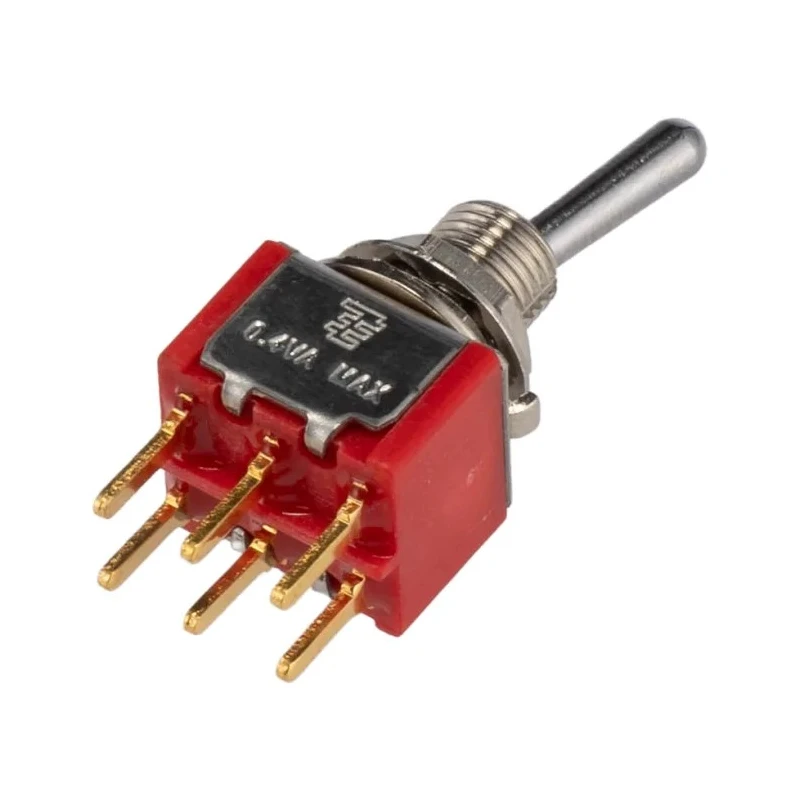

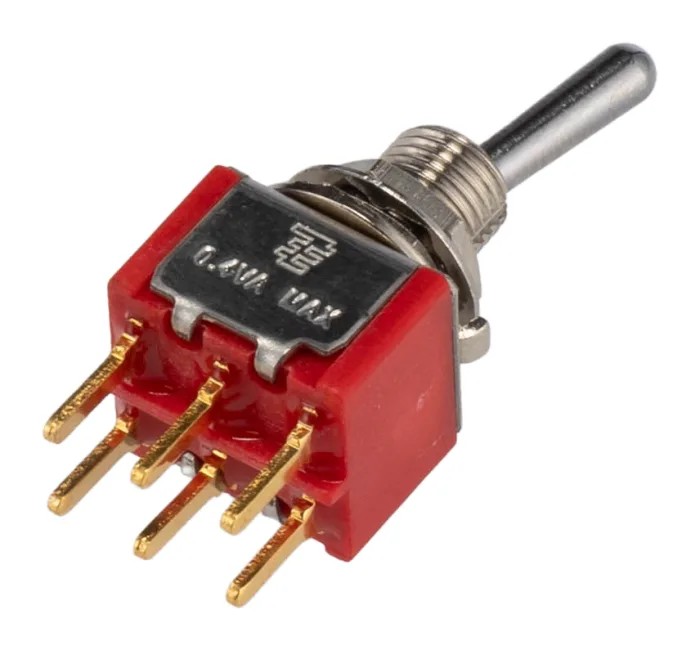

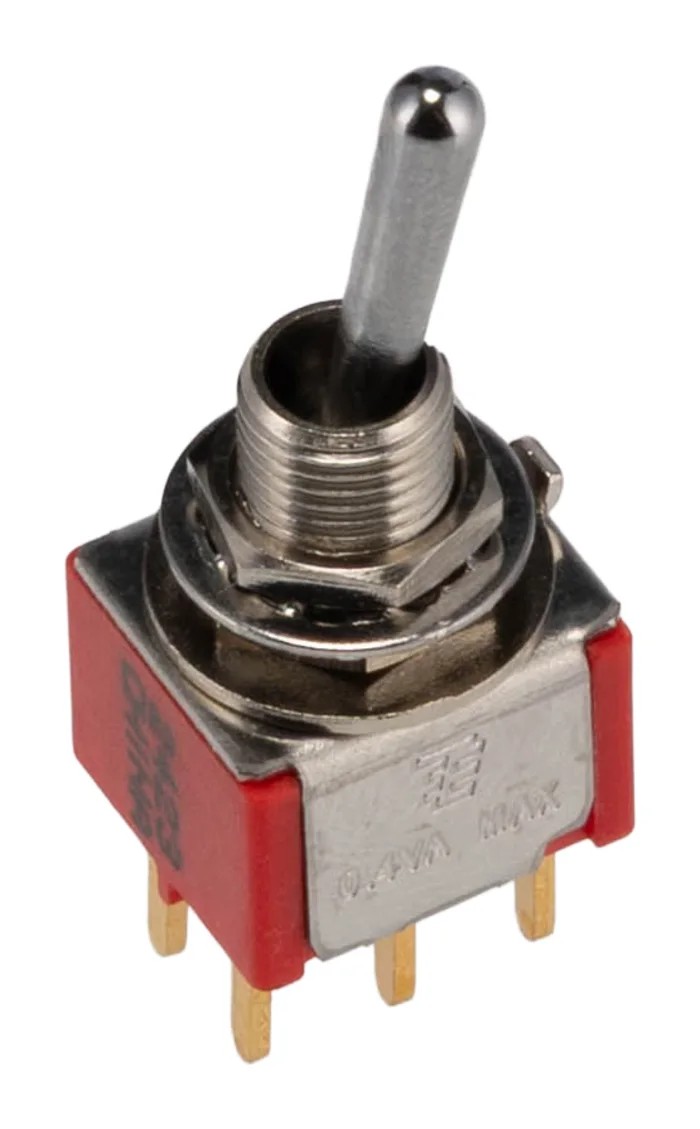

TE Connectivity Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 28 V dc 115 V ac 2-1825138-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Double Pole Double Throw (DPDT) contact configuration for versatile circuit switching.
- On-On switch operation with break-before-make contact timing to prevent contact overlap.
- Through hole terminal mount ensures secure PCB attachment.
- Rated for 28 V dc and 115 V ac contact voltage for varied power applications.
- IP67 rated sealing providing excellent protection against dust and water ingress.
- Phenolic actuator material ensures durability at operating temperatures between -30°C and 85°C.
- Non-illuminated design with stainless steel frame and brass tin-plated solder support.
- Panel cutout size of 6.35 mm and actuator length of 10.41 mm for precise mechanical fit.
Product Description
TE Connectivity 2-1825138-4 Toggle Switch is a precision PCB mount switch with On-On DPDT configuration designed for robust and reliable electrical switching applications. Operating at 28 V dc and 115 V ac, it suits various electronic and electrical systems processing low-current signals.
The switch features break-before-make contact timing and epoxy sealed terminals for enhanced switching precision and environmental durability. The stainless steel frame combined with brass tin-plated solder support provides mechanical strength, while the phenolic actuator material supports a wide operating temperature range from -30°C to 85°C.
Its IP67 rating ensures excellent protection against dust and water ingress, making it ideal for use in demanding industrial, automation, and control gear environments where environmental sealing is critical.
The compact design includes a panel cutout size of 6.35 mm and an actuator length of 10.41 mm, facilitating easy mounting on printed circuit boards through its through-hole terminals. This non-illuminated switch supports a switching current of 400 mA suitable for control and signal circuits.
Double Pole Double Throw contact configuration offers versatile circuit control. Break before make contact prevents short circuits during switching transitions. Epoxy sealed terminals protect against environmental contaminants.
Stainless steel frame and brass solder support ensure mechanical durability. IP67 protection rating provides ingress resistance suitable for industrial environments. Phenolic actuator material supports durability across wide temperature range.
Panel cutout and actuator dimensions enable precise PCB mounting. Compliance with RoHS demonstrates adherence to environmental and safety standards.
This toggle switch is widely used in industrial automation, electrical equipment control panels, manufacturing machinery, and various laboratory instrumentation applications requiring reliable PCB-mounted switching components.
Explore more TE Connectivity Toggle Switches and electrical components at EnvMart for industrial-grade solutions.
