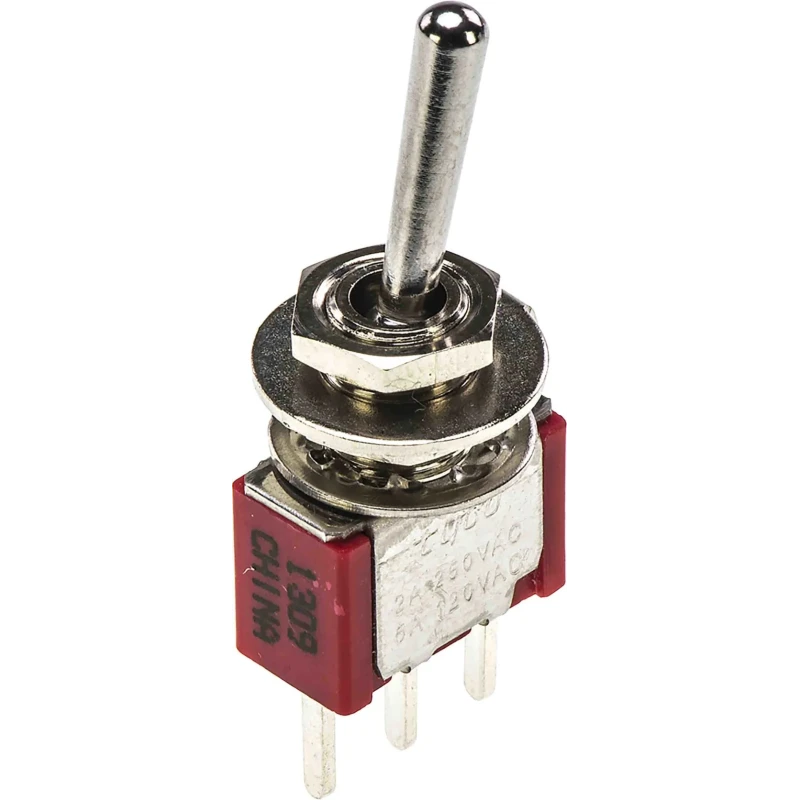

TE Connectivity Toggle Switch PCB Mount On-On SPDT, Through Hole Terminal, 28 V dc, 115 V ac 6-1825136-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Features a single pole double throw (SPDT) contact configuration.
- Operates with On-On switch operation ensuring reliable performance.
- Rated for 5A switch contact current for versatile electrical loads.
- Mount type is PCB for easy integration onto printed circuit boards.
- Through hole terminal type provides stable soldering connection.
- IP67 rated for protection against dust and moisture.
- Actuator is made of durable phenolic material with length of 10.41 mm.
- Panel cutout size of 6.35 mm for precision mounting.
Product Description
TE Connectivity 6-1825136-3 toggle switch is a PCB mount single pole double throw (SPDT) switch designed for reliable industrial and electrical applications operating at 28 V dc and 115 V ac.
This On-On switch features epoxy sealed terminals and a stainless steel frame with brass tin plated solder support, providing durability and long service life.
The phenolic actuator material ensures robustness in demanding environments. The switch supports a contact current of up to 5A and is IP67 rated, making it suitable for harsh conditions requiring dust and moisture protection.
Compact with dimensions of height 0.35 inch, width 0.27 inch, and length 0.5 inch, it integrates easily on PCBs with a panel cutout size of 6.35mm. The operating temperature range from -30°C to 85°C allows for use in a variety of industrial, automation, and electrical control systems.
Single pole double throw (SPDT) contact configuration. On-On operation type providing break before make contact timing. 5A maximum contact current rating. Through hole PCB mounting type for soldered installation. Epoxy sealed terminals providing environmental protection.
IP67 ingress protection rating for dust-tight and water resistance. Durable phenolic actuator construction. Compact size with precise panel cutout and actuator dimensions. Wide operating temperature range from -30°C to 85°C.
This toggle switch is ideal for electrical automation, industrial control, and electronic device manufacturing where reliable, compact, and durable switching components are required.
Explore the various Toggle Switches available on EnvMart for similar versatile, high-quality switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single pole double throw (SPDT) contact configuration.
It is rated for 28 V dc and 115 V ac.
The maximum contact current rating is 5A.
This toggle switch has an IP67 rating, providing protection against dust and moisture.
The dimensions are height 0.35 inch, width 0.27 inch, and length 0.5 inch.
It operates within a temperature range of -30°C to 85°C.
It uses PCB mounting for easy integration onto printed circuit boards.
The actuator is made of durable phenolic material.
The required panel cutout size is 6.35 mm.
It features through hole terminals for stable soldering connections.
This model is RoHS compliant.
It supports an On-On switch operation type.
