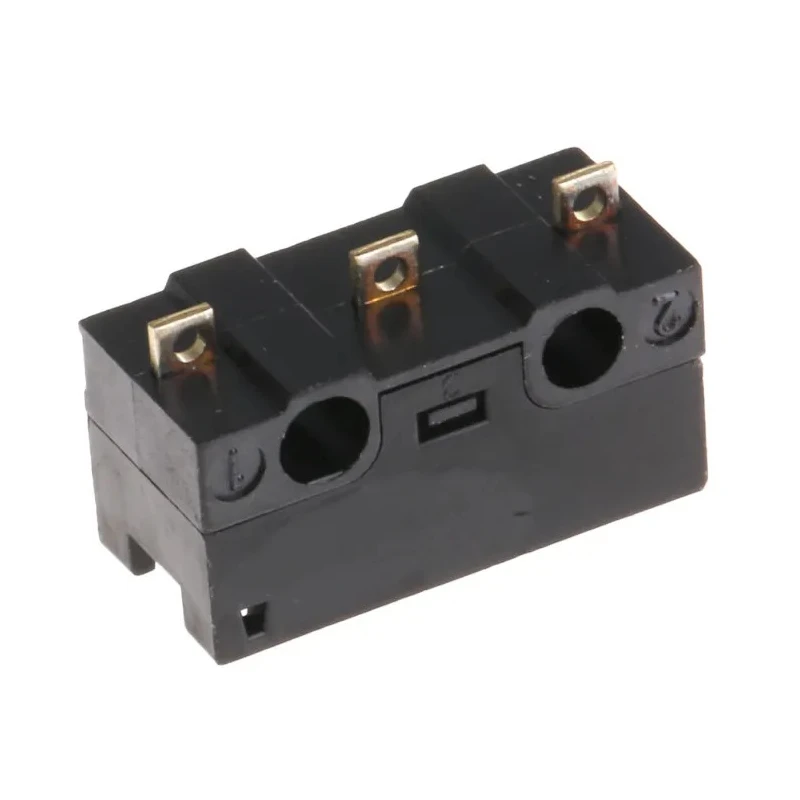

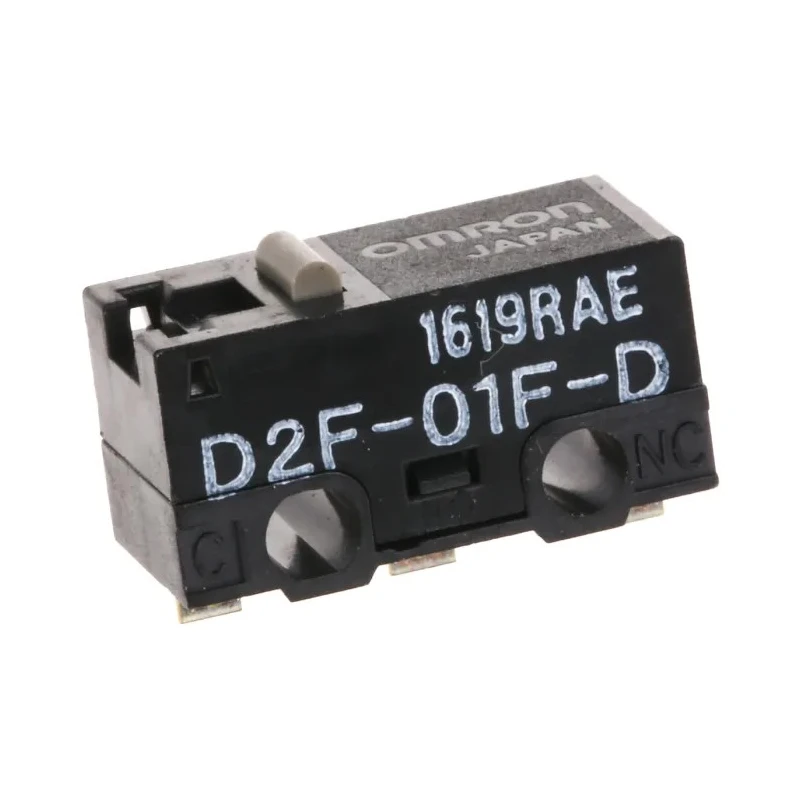

Omron Ultra Subminiature Pin Plunger Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP40 D2F-01F-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01F-D |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.74N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- Features a pin plunger actuator for precise switching operation.
- Equipped with solder terminals for secure electrical connections.
- Capable of handling 100mA switching current with a contact rating of 3A @125Vac (silver) and 0.1A @30Vdc (gold contacts).
- Designed with an IP40 rating to protect against solid objects larger than 1 mm.
- Operates with a minimum force of 0.74N ensuring sensitive activation.
- Temperature range from -25°C up to 65°C ensures durability under various conditions.
- Ultra subminiature design with a compact length of 12.8mm for space-constrained applications.
- Mechanical life rated at 1,000,000 operations providing long service life.
Product Description
Omron D2F-01F-D Ultra Subminiature Pin Plunger Micro Switch is engineered for precise and reliable snap action switching with SPDT contact configuration. This micro switch is designed for low current applications up to 100mA and a contact DC voltage rating of 30 V dc. Its ultra-subminiature size, with a length of 12.8mm, makes it ideal for incorporation into compact electronic devices and home appliances.
The pin plunger actuator type ensures precise activation, while solder terminal connections provide secure and easy wiring solutions for manufacturing and repair processes. The switch accommodates 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts, supporting a variety of electrical circuits. The IP40 rating protects against intrusion of solid objects larger than 1 mm, maintaining contact integrity.
Designed for extended durability, this micro switch withstands operating temperatures ranging from -25°C to 65°C and delivers a mechanical life of up to 1 million operations. The operating force of 0.74N ensures sensitive and consistent actuation for user interfaces and safety switches.
The D2F series complies with RoHS environmental standards and benefits from UL and CSA approvals, making it suitable for industrial, home appliance, audio, and communication equipment applications. Manufactured in Japan, this micro switch assures superior quality and reliability.
Pin plunger actuator provides accurate and repeatable switching. Solder terminal type for robust electrical connections. Switch contact current of 100mA with SPDT configuration. IP40 protection rating suitable for indoor electronics.
Operating force optimized at 0.74N for sensitivity. Operating temperature from -25°C to 65°C for versatile environments. Compact length of 12.8mm fits space-restricted applications. Mechanical life rated at one million actuations ensures long-term use.
RoHS compliant, UL and CSA certified for quality assurance. Manufactured in Japan with premium material standards.
This micro switch is suitable for industrial, home appliances, communications equipment, and manufacturing automation tasks requiring dependable, precise switching. Explore additional Micro Switches and automation components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact rating is 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
This model uses a pin plunger actuator for precise switching operation.
The operating temperature range is from -25°C to 65°C.
The mechanical life is rated at 1,000,000 operations.
It has an IP40 rating, which protects against solid objects larger than 1 mm.
This micro switch is equipped with solder terminals for secure electrical connections.
The minimum operating force is 0.74N, ensuring sensitive activation.
Yes, it is RoHS compliant and has UL and CSA approvals.
The length of this model is 12.8mm, making it suitable for compact applications.
The contact DC voltage rating is 30V dc.
It is suitable for industrial, home appliances, audio, and communication equipment applications.
This model is manufactured in Japan.
