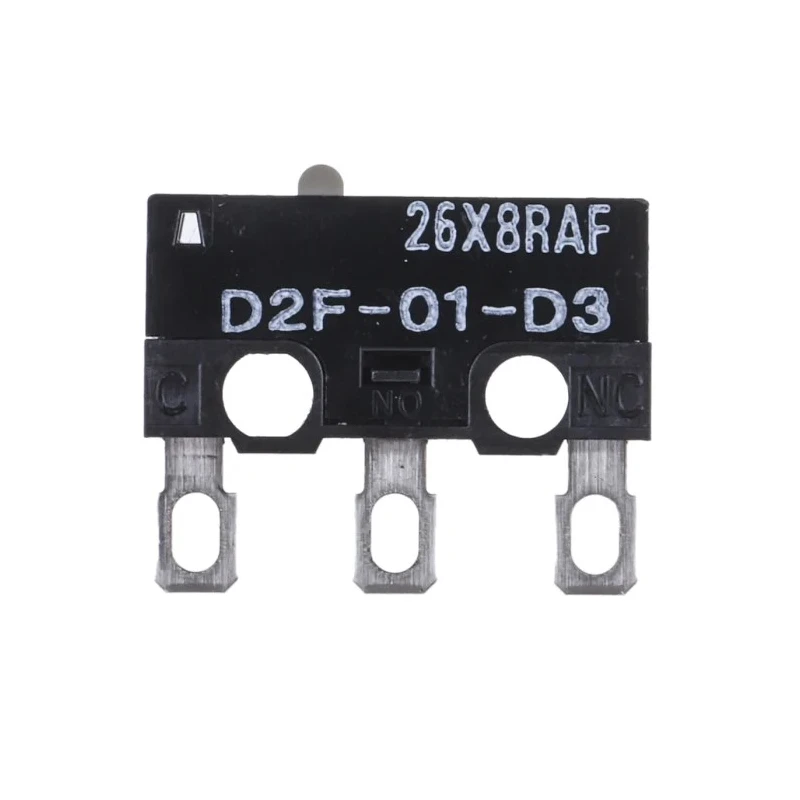

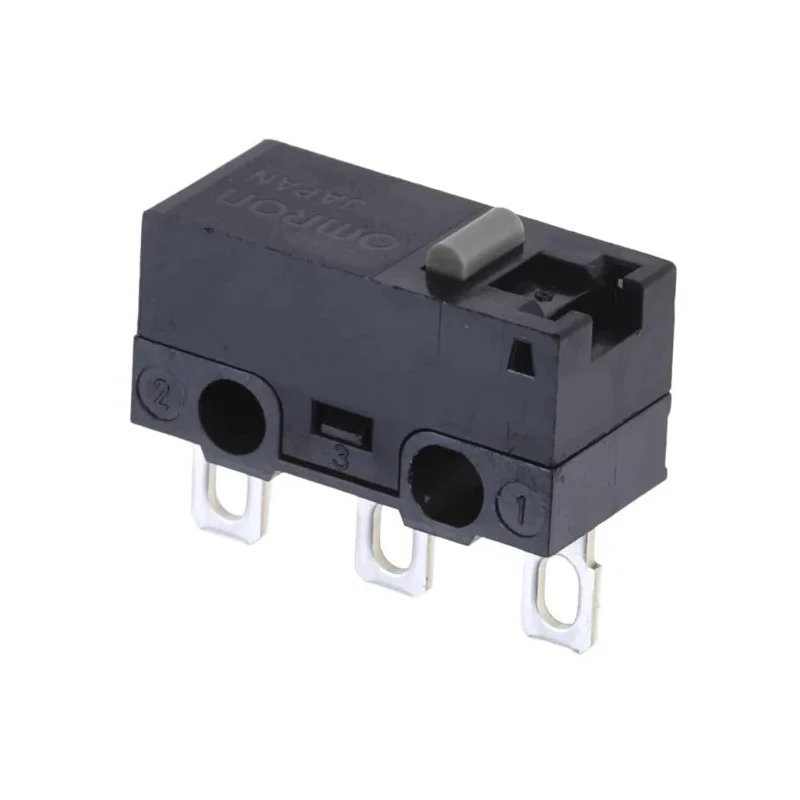

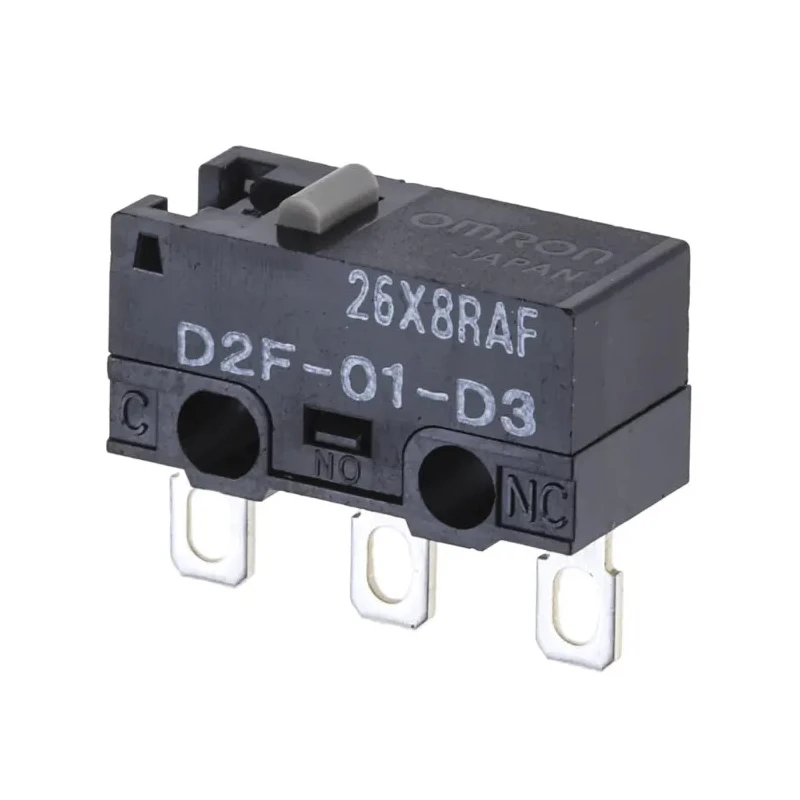

Omron Pin Plunger Micro Switch, Solder Terminal, 100mA, 30V DC, SPDT, IP40 D2F-01-D3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | D2F-01-D3 |
| IP Rating | IP40 |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 1.47N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- The switch uses a highly durable pin plunger actuator for precise operation.
- Suitable for operating temperatures ranging from -25°C to 65°C.
- Operating force is 1.47N ensuring reliable actuation.
- Long mechanical life rated for 1,000,000 operations.
- Designed with ultra subminiature form factor for compact installations.
- Gold contact material enhances conductivity and reliability.
- Ideal for household appliances, office equipment, audio devices, and communication instruments.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Omron D2F-01-D3 pin plunger micro switch is engineered for precision switching with a solder terminal configuration, rated for 100mA at 30V DC. It features a single pole double throw (SPDT) contact setup and is IP40 rated for protection against solid objects greater than 1mm. The pin plunger actuator offers reliable tactile feedback and accuracy.
Operating over a temperature range from -25°C to 65°C and requiring an operating force of 1.47N, this ultra-subminiature microswitch is suitable for a broad range of industrial and commercial applications including household appliances, office machinery, audio and communication equipment.
Its gold contacts ensure excellent electrical conductivity and resistance to corrosion, while its robust mechanical life of 1,000,000 operations highlights its durability. The switch integrates a high-precision dual spring reverse-action mechanism to assure long service life.
Additionally, the switch complies with RoHS standards which guarantee adherence to environmental safety requirements. Designed and manufactured in Japan, it assures quality and reliability for demanding industrial and automation environments.
Package contains the Omron D2F-01-D3 pin plunger micro switch with solder terminal connection, ready for integration into electronic assemblies. The switch is rated for 100mA at 30V DC with SPDT contacts. Pin plunger actuator enables precise switching action.
Operating force of 1.47N facilitates reliable actuation. Operating temperature range from -25°C to 65°C supports diverse environments. Offers a mechanical life of one million operations for longevity. Gold contacts improve performance and durability.
Compact ultra subminiature design for space-saving applications. RoHS compliant ensuring environmentally safe manufacturing. Made in Japan with high quality assurance. Explore EnvMart for a comprehensive selection of Micro Switches and automation components suitable for diverse industrial, commercial, and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 65°C.
It features a single pole double throw (SPDT) contact configuration.
This micro switch is rated for 100mA at 30V DC.
The operating force required for actuation is 1.47N.
The mechanical life of the Omron D2F-01-D3 is rated for 1,000,000 operations.
The switch has an IP40 rating, providing protection against solid objects greater than 1mm.
It uses a pin plunger actuator for precise operation.
The minimum operating temperature is -25°C.
The switch features gold contact material, which enhances conductivity and reliability.
Yes, it complies with RoHS standards, ensuring environmental safety.
This micro switch is manufactured in Japan.
It has a solder terminal configuration.
