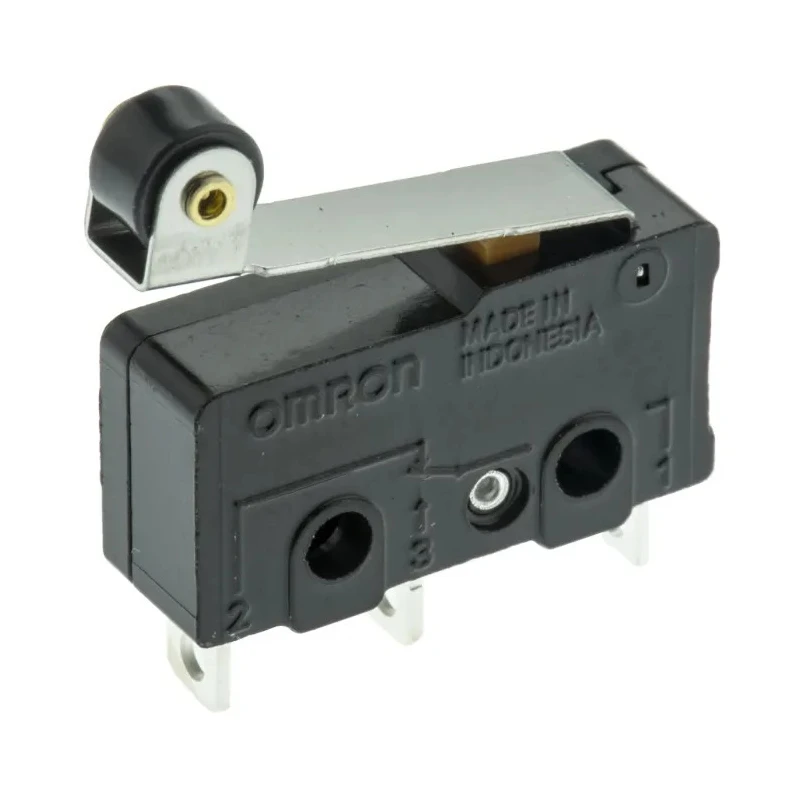

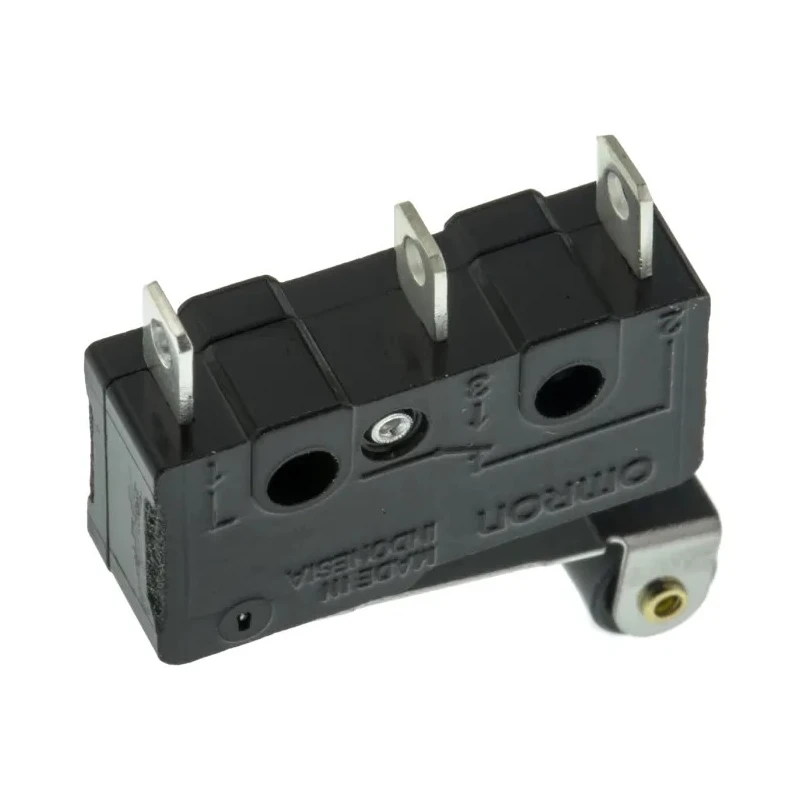

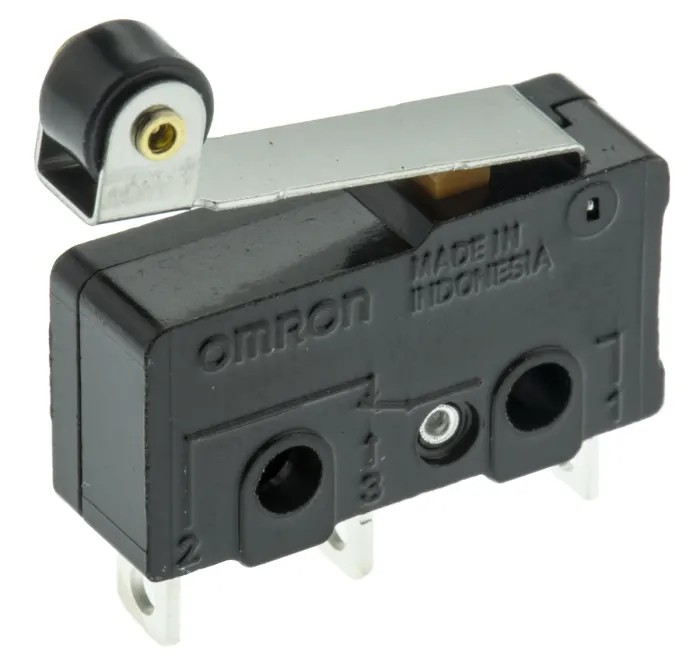

Omron Roller Lever Micro Switch, Solder Terminal, 10.1A, 250 V AC, 30 V DC, SPDT, IP40 SS-10GL2
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Length | 20mm |
| Model | SS-10GL2 |
| Depth | 6.4mm |
| IP Rating | IP40 |
| Width | 11mm |
| Housing Material | Polybutylene Terephthalate |
| Series | SS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 10.1A |
| Operating Force | 0.49N |
| Mechanical Life | 10000000Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
Key Features
- This micro switch features a roller lever actuator for smooth operation.
- It supports a switch contact current of 10.1A for robust performance.
- Operates at 250 V AC and 30 V DC voltages ensuring wide application.
- Constructed from durable polybutylene terephthalate housing material.
- IP40 rating provides basic protection against solid objects.
- Designed for subminiature microswitch applications with a mechanical life of 10 million operations.
- Operates reliably in temperatures ranging from -25°C to 85°C.
- Compact dimensions suitable for integration in confined spaces.
Product Description
Omron SS-10GL2 Roller Lever Micro Switch with solder terminals and SPDT configuration is designed for industrial and automation applications requiring precise switching. Featuring a durable polybutylene terephthalate housing and a roller lever actuator, this micro switch supports a switch contact current of 10.1A at 250 V AC and 30 V DC.
With an IP40 rating, the switch offers protection against solid particles while ensuring reliable performance through a mechanical life expectancy of 10 million operations. The switch operates efficiently under a temperature range from -25°C up to 85°C, making it suitable for various industrial environments.
Compact dimensions of 20mm length, 11mm width, and 6.4mm depth allow integration into tight spaces within control panels or automation equipment.
This subminiature type micro switch is ideal for electrical, industrial automation, HVAC controls, manufacturing machinery, and other commercial uses that require dependable switching performance.
This micro switch features a roller lever actuator for smooth operation. It supports a switch contact current of 10.1A for robust performance. Operates at 250 V AC and 30 V DC voltages ensuring wide application. Constructed from durable polybutylene terephthalate housing material.
IP40 rating provides basic protection against solid objects. Designed for subminiature microswitch applications with a mechanical life of 10 million operations. Operates reliably in temperatures ranging from -25°C to 85°C.
Compact dimensions suitable for integration in confined spaces. Explore more high-quality Micro Switches and components in the Electronics & Electricals category at EnvMart for your automation and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch contact current rating of this micro switch is 10.1A.
This model operates at 250 V AC and 30 V DC voltage levels.
The micro switch has an IP40 rating, providing basic protection against solid objects.
The dimensions of this micro switch are 20mm in length, 11mm in width, and 6.4mm in depth.
It operates reliably within a temperature range of -25°C to 85°C.
This model features a roller lever actuator for smooth operation.
The mechanical life expectancy of this micro switch is 10 million operations.
The housing material of this micro switch is polybutylene terephthalate.
The contact configuration of this micro switch is SPDT (Single Pole Double Throw).
This micro switch uses solder terminals.
Yes, it complies with RoHS standards.
This micro switch is suitable for industrial automation, HVAC controls, and manufacturing machinery applications.
