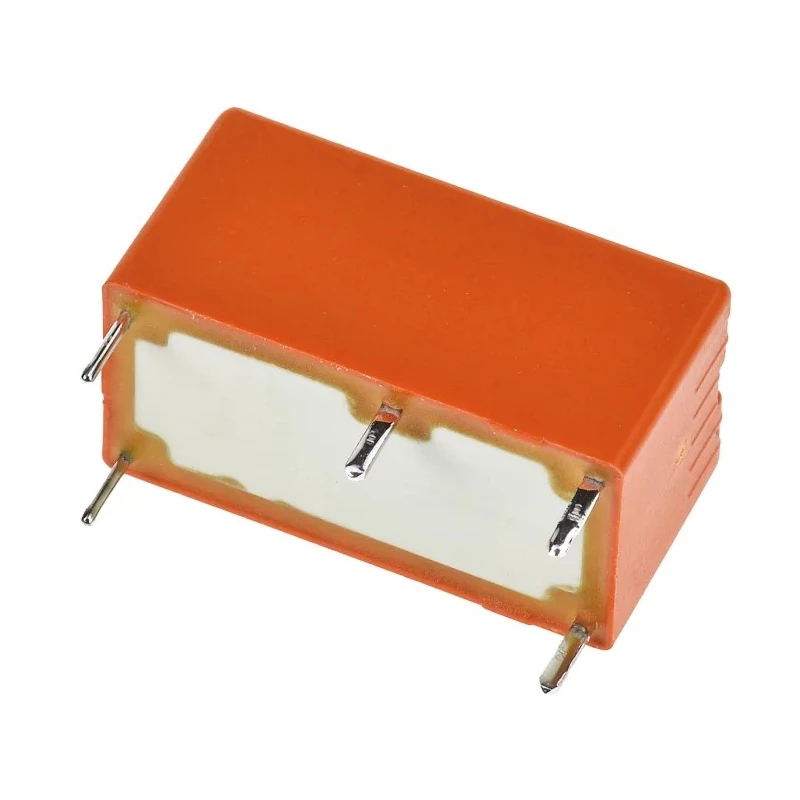

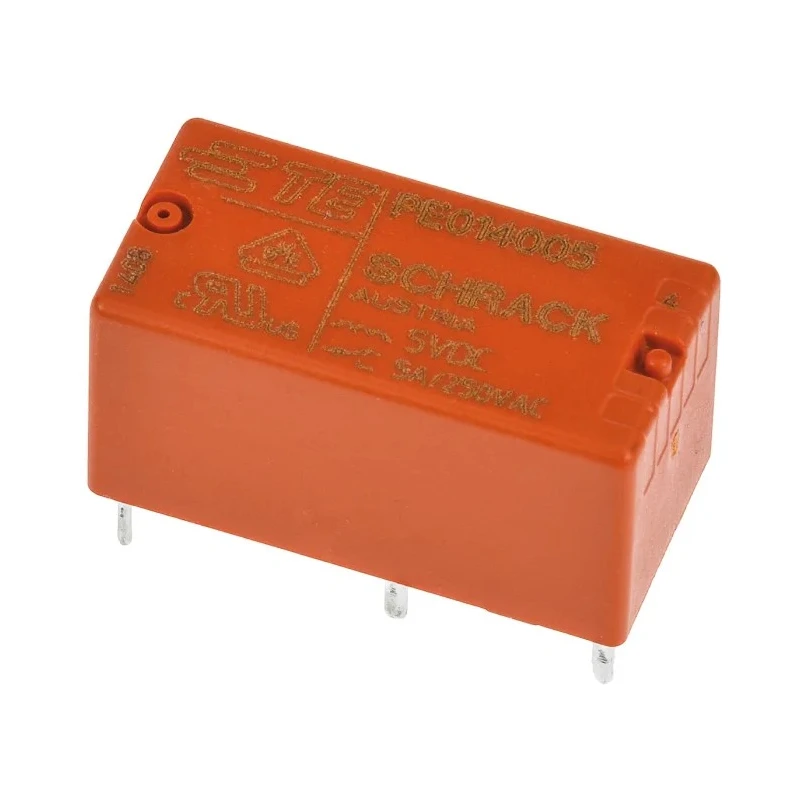

TE Connectivity PCB Power Relay 5V dc Coil 5A Switching Current SPDT PE014005
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 10mm |
| Operating Temperature Range | -40 to +85°C |
| Length | 20mm |
| Model | PE014005 |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | PE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 200mW |
| High Coil sensitivity | 200mW |
Key Features
- High coil sensitivity with 200mW coil power ensures low energy consumption.
- Operating temperature range from -40°C to +85°C for reliable performance in diverse environments.
- Compact dimensions of 20mm length, 10mm width, and 10mm height facilitate PCB mounting.
- Contact material composed of silver nickel alloy enhances durability and conductivity.
- Designed for industrial electronics, household appliances, and control equipment.
- Supports switching AC voltage up to 400V ac and switching power of 1.25 kVA.
- Compliance with IEC 61810 standards and RoHS conformity ensures safety and environmental compliance.
Product Description
TE Connectivity PE014005 PCB Power Relay features a 5V dc coil and supports a switching current up to 5A with a single-pole double-throw (SPDT) contact configuration. This relay series (PE Series) offers high coil sensitivity of 200mW, contributing to its energy-efficient operation. Its compact design with dimensions 20mm (L) x 10mm (W) x 10mm (H) makes it ideal for printed circuit board (PCB) mounting.
The relay's coil resistance is 125Ω, and it is designed to operate reliably between temperatures of -40°C to 85°C, suitable for applications in industrial electronic devices, household appliances, and control equipment. The contact material is a silver nickel alloy, providing robust electrical performance and longevity under frequent switching cycles.
It can switch AC voltages up to 400V ac and handle switching power up to 1.25 kVA, making it suitable for a variety of power relay applications. The relay also features solder-type terminals for secure connections on PCBs.
This product complies with IEC 61810 standards and is RoHS compliant, emphasizing its adherence to international safety and environmental regulations. High coil sensitivity with 200mW coil power ensures energy-efficient operation.
Wide operating temperature range from -40°C to +85°C for versatile use. Compact size for easy PCB integration. Silver nickel alloy contacts enhance reliability and durability. Supports switching AC voltage up to 400V ac and power up to 1.25 kVA.
SPDT contact configuration provides versatile switching options. Solder terminal type for robust PCB mounting. IEC 61810 and RoHS compliant for safety and environmental standards.
This TE Connectivity PCB Power Relay is ideal for industrial automation, electrical control systems, household appliance control, and other applications requiring reliable relay switching on PCBs. Browse the Electronics & Electricals category on EnvMart for more Power Relays and related components from leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 5A.
It has compact dimensions of 20mm in length, 10mm in width, and 10mm in height.
The relay operates with a coil voltage of 5V dc.
It can operate reliably within a temperature range of -40°C to +85°C.
This relay features a single-pole double-throw (SPDT) contact configuration.
The contact material is composed of silver nickel alloy, enhancing its durability and conductivity.
It supports switching AC voltage up to 400V ac.
The coil resistance is 125Ω.
This model features solder-type terminals for secure connections on PCBs.
It complies with IEC 61810 standards and is RoHS compliant, ensuring safety and environmental compliance.
It can handle switching power up to 1.25 kVA.
It is designed for use in industrial electronics, household appliances, and control equipment.
