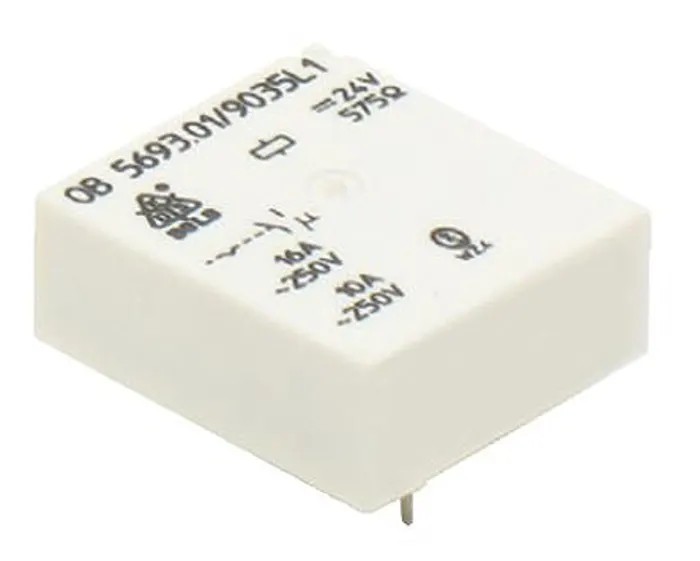

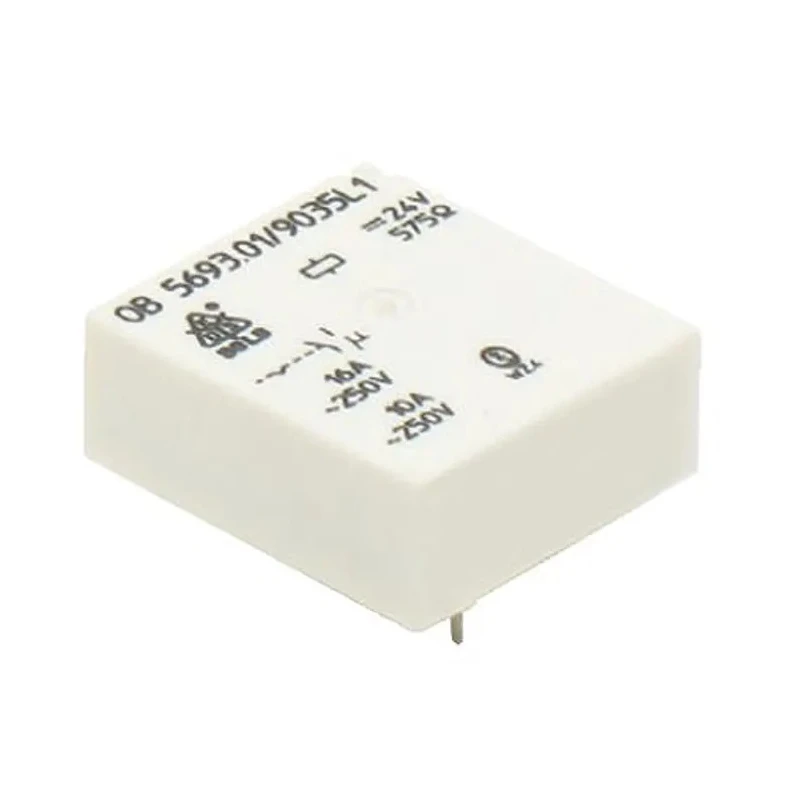

Dold Power Relay 12V DC Coil 16A Switching Current SPDT OB 5693.11/900 2L1 DC 12V
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Dold |
| Height | 25mm |
| Length | 28mm |
| Model | OB 5693.11/900 2L1 DC 12V |
| Width | 10.8mm |
| Contact Material | Silver Alloy |
| Series | OB 5693 |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | EN, CE, RoHS, IEC |
| Coil Resistance | 150Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 1W |
| Switching Power | 300W |
| Dold PCB Mount Non-Latching Relay, 6V dc Coil, 50A Switching Current, SPDTBrand | Dold |
Key Features
- The relay supports switching AC voltages up to 400V AC.
- Designed for PCB mounting with through-hole terminal type for secure installation.
- Operates reliably from -40°C up to 50°C ambient temperature.
- Contacts made from silver alloy ensure excellent conductivity and durability.
- Complies with EN, CE, RoHS, and IEC standards for safety and environmental compliance.

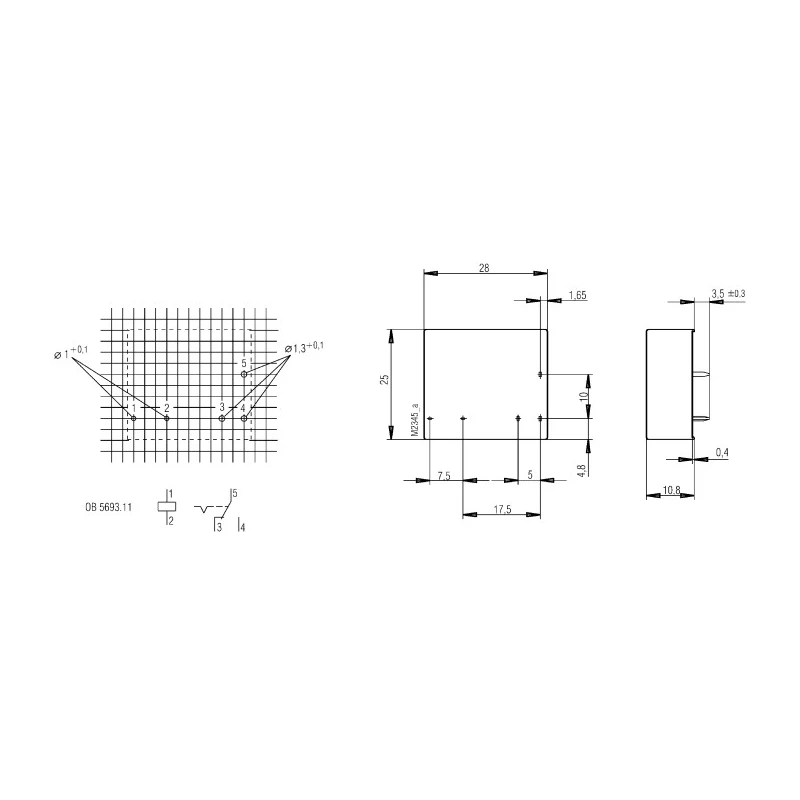

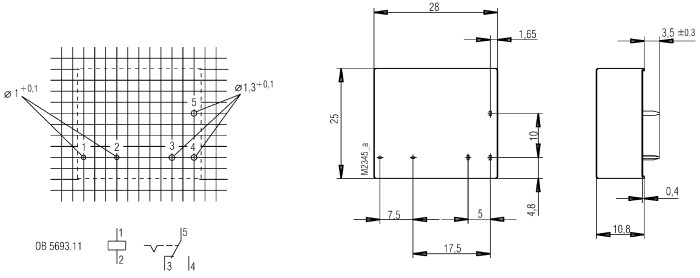

- Compact dimensions of 28mm x 10.8mm x 25mm fit space-constrained applications.
- Coil resistance of 150 ohms with coil power consumption of 1 watt.
- Ideal for industrial automation and remote switching uses.
Product Description
Dold OB 5693.11/900 2L1 DC 12V power relay is a high-performance SPDT power relay designed for PCB installations with a 12V DC coil voltage and 16A switching current capacity, suitable for various industrial and automation applications.
This relay features a through-hole terminal type facilitating secure and reliable PCB mounting. The compact package dimensions - 28mm length, 10.8mm width, and 25mm height - make it suitable for space-constrained designs.
It supports switching AC voltages up to 400V AC with a maximum switching power rating of 300 watts. The relay operates efficiently over a wide temperature range from -40°C to +50°C, ensuring stable performance in diverse environments.
Constructed with silver alloy contacts, it guarantees excellent conductivity and durability for prolonged service life. The coil resistance is 150 ohms with a low coil power of 1 watt, promoting energy efficiency.
Certified to meet EN, CE, RoHS, and IEC standards, this power relay adheres to rigorous quality, safety, and environmental regulations. Its bistable mechanical storage ensures secure contact state retention without continuous coil power consumption.
Applications include remote switching, industrial control systems, and automation equipment requiring reliable and secure switching of electrical loads with isolation between control and output circuits.
Manufactured in Germany by Dold, a trusted name in electrical components, this relay offers dependable performance and compliance with international standards such as IEC/EN 61140, IEC/EN 60335, IEC/EN 60669-1, and IEC/EN 60669-2-2.
The relay supports switching AC voltages up to 400V AC. Designed for PCB mounting with through-hole terminal type for secure installation. Operates reliably from -40°C up to 50°C ambient temperature. Contacts made from silver alloy ensure excellent conductivity and durability.
Complies with EN, CE, RoHS, and IEC standards for safety and environmental compliance. Compact dimensions of 28mm x 10.8mm x 25mm fit space-constrained applications. Coil resistance of 150 ohms with coil power consumption of 1 watt.
Ideal for industrial automation and remote switching uses. Explore more Power Relays and electrical automation components in the Electronics & Electricals category available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A.
The relay has compact dimensions of 28mm in length, 10.8mm in width, and 25mm in height.
The coil voltage for this relay is 12V DC.
It supports switching AC voltages up to 400V AC.
This model features a through-hole terminal type for secure PCB mounting.
The coil resistance is 150 ohms.
It operates reliably within a temperature range of -40°C to +50°C.
The contacts are made from silver alloy, ensuring excellent conductivity.
It complies with EN, CE, RoHS, and IEC standards for safety and environmental compliance.
The coil power consumption is 1 watt.
The maximum switching power rating is 300 watts.
It is suitable for industrial automation and remote switching applications.
