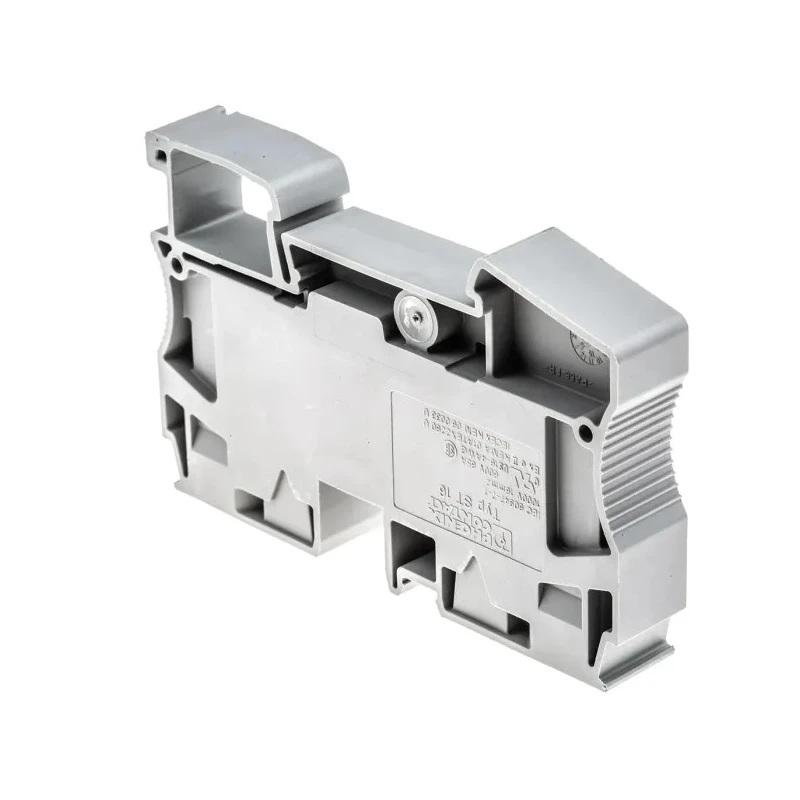

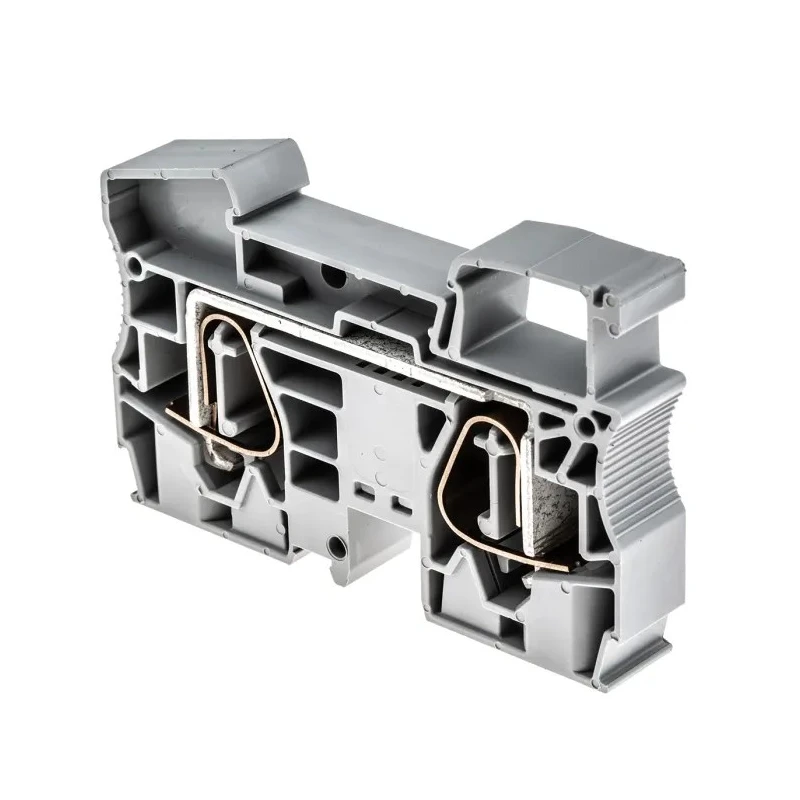

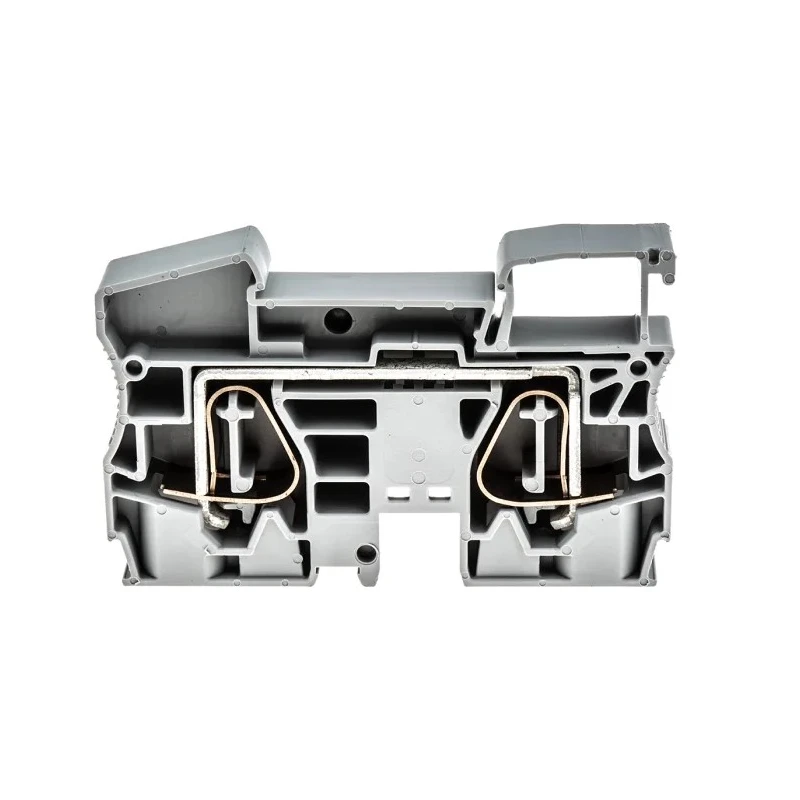

Phoenix Contact ST16 Series Feed Through Terminal Block Grey, 1.5mm² to 25mm², 1-Level, Spring Cage, 800V, 90A 3036149

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact ST16 Series Feed Through Terminal Block Grey, 1.5mm² to 25mm², 1-Level, Spring Cage, 800V, 90A 3036149

Name: Phoenix Contact ST16 Series Feed Through Terminal Block Grey, 1.5mm² to 25mm², 1-Level, Spring Cage, 800V, 90A 3036149
Brand: PHOENIX CONTACT
SKU: 343686
Price: 6.21 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	3036149
Series	ST16
Termination Type	Spring Cage
Maximum Operating Temperature	105°C
Number of Levels	1
Sub Type	Feed Through
Minimum Operating Temperature	-60°C
Standards/Approvals	VDE, UL Recognised, RS, PRS, NK, LR, KR, IECEX, IECEE CB Scheme, IEC 60947-7-1, EAC Ex, EAC, DNV GL, cULus Recognised, cUL Recognised, CSA, Bureau Veritas, ATEX
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	4AWG
Cable CSA	1.5, 25mm²
Terminal Block Current	90A

Key Features

Maximum current rating of 90A accommodates high power requirements.
Spring cage connection type ensures quick and secure wire termination.
Designed for 1-level assembly with grey color for easy identification.
Compatible with conductor sizes from 1.5mm² up to 25mm² for flexibility.
Operating temperature range from -60°C to 105°C ensures durability in harsh conditions.
Standard compliant with VDE, UL Recognised, IEC 60947-7-1, ATEX and other international approvals.
Mountable on NS 35/7.5 and NS 35/15 DIN rails for installation versatility.

Product Description

Phoenix Contact 3036149 ST16 Series Feed Through Terminal Block is engineered for industrial and automation applications requiring dependable electrical connections. Featuring a grey housing and spring cage termination, it supports conductor cross-sections from 1.5mm² to 25mm² and operates at a maximum voltage of 800V with a current capacity of 90A, making it suitable for high-power electrical control systems.

This terminal block is designed with a single-level connection and optimized for mounting on NS 35/7.5 and NS 35/15 DIN rails. Its robust spring cage connection facilitates straightforward and secure wire terminations, improving installation efficiency, and reliability in harsh environments.

The product supports both rigid and flexible conductors, with an optimal stripping length for secure contact. Operating temperature ranges from -60°C to 105°C, ensuring performance stability under varying industrial conditions. The terminal block complies with multiple international certifications including VDE, UL Recognised, IEC 60947-7-1, ATEX, and others, confirming its suitability for industrial and hazardous area applications.

Rated voltage of 800 volts for versatile applications. Maximum current rating of 90 amperes for high power needs. Spring cage connection for quick and secure terminations. Single-level design eases wiring complexity. Supports conductor cross-section from 1.5mm² to 25mm².

Temperature operating range from -60°C to +105°C. Compatible with standard DIN rail mounting for easy integration. Certified to international standards including ATEX for hazardous areas.

This terminal block is ideal for use in control cabinets within industrial automation, electrical power supply linking, and electrical control systems needing reliable, compact, and certified wiring solutions. Its compatibility with multiple standards and approvals ensures worldwide applicability across rigorous industrial environments.
