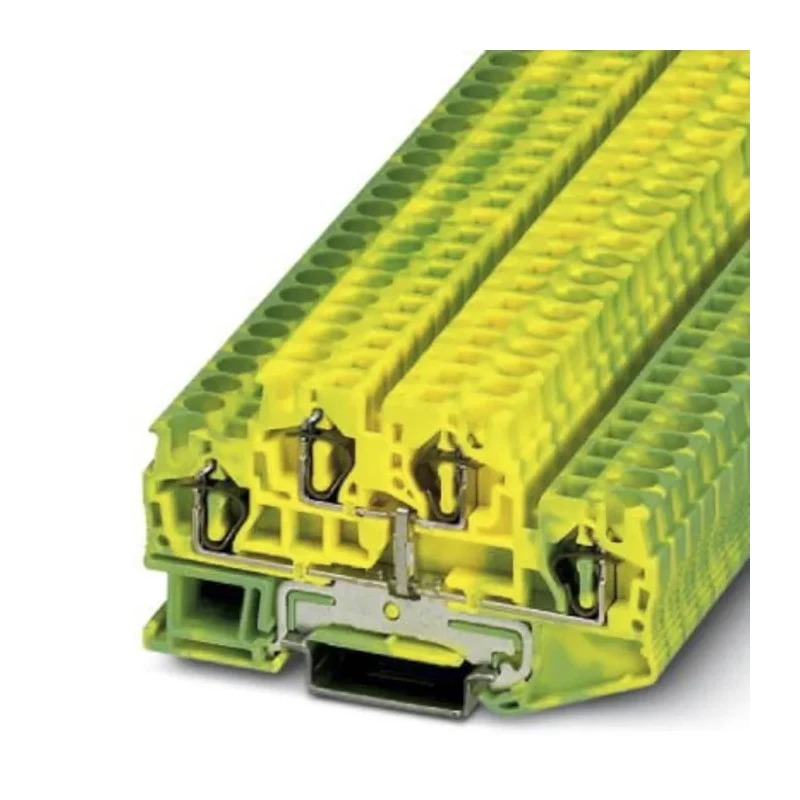

Phoenix Contact Feed Through Terminal Block STTB 4-PE Series 2-Level Spring Cage, 6kV, 0.08-6 mm², Green Yellow 3036039

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Feed Through Terminal Block STTB 4-PE Series 2-Level Spring Cage, 6kV, 0.08-6 mm², Green Yellow 3036039

Name: Phoenix Contact Feed Through Terminal Block STTB 4-PE Series 2-Level Spring Cage, 6kV, 0.08-6 mm², Green Yellow 3036039
Brand: PHOENIX CONTACT
SKU: 343631
Price: 14.93 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	6kV
Brand	Phoenix Contact
Colour	Green, Yellow
Model	3036039
Series	STTB 4-PE
Termination Type	Spring Cage
Maximum Operating Temperature	105°C
Number of Levels	2
Sub Type	PT Disconnect
Minimum Operating Temperature	-60°C
Hazardous Area Certification	ATEX, IECEx
Standards/Approvals	ATEX/IECEx, Bureau Veritas, CSA/cULus, GL, GOST, IEC 60947-7-2, IECEE CBScheme, INMETRO, KR, LR, NK, RS, VDE Gutachten mitFertigungsüberwachung
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	10AWG
Cable CSA	0.08, 6mm²
Cross-section	0.08mm² to 1.5mm²

Key Features

Double-level spring-cage terminal block allows connections of more than one conductor.
Compact design mounts on NS 35/7.5 and NS 35/15 DIN rails for space efficiency.
Supports wire sizes from AWG 28 to AWG 10 for versatile applications.
Operating temperature range from -60°C to 105°C ensures durability in harsh environments.
Contacts are copper-plated ensuring reliable electrical conduction.
Polyamide housing provides robust insulation and mechanical strength.
Certified to ATEX and IECEx standards for use in hazardous and explosive environments.
Non-fused design suitable for various industrial control wiring applications.

Product Description

Phoenix Contact 3036039 feed through terminal block from the STTB 4-PE series features a 2-level spring cage design enabling easy and secure connection of multiple conductors within a compact footprint. This terminal block supports wire cross-sections ranging from 0.08 mm² to 6 mm² and is rated for 6kV voltage applications, making it ideal for demanding electrical and electronic industrial installations.

The double-layer construction allows for space-saving installation on widely used NS 35/7.5 and NS 35/15 DIN rails. The spring cage termination technology facilitates quick and reliable wiring without the need for screws, thereby saving installation time and enhancing safety.

The terminal block's insulating housing is made from durable polyamide, providing excellent mechanical strength and electrical insulation. Contacts are copper plated to ensure superior conductivity and corrosion resistance. The operating temperature range from -60°C to 105°C ensures the block can operate reliably in harsh environments.

This product holds certifications for hazardous areas including ATEX and IECEx, enabling safe deployment in potentially explosive atmospheres. It also complies with multiple international standards such as Bureau Veritas, CSA/cULus, GL, GOST, IEC 60947-7-2, IECEE CBScheme, INMETRO, KR, LR, NK, RS, and VDE certifications, confirming high-quality manufacturing and safety compliance.

Typical applications include railway industry installations, plant engineering, machine building, and process industries where safe and compact electrical connections are critical.

The STTB series is part of Phoenix Contact's comprehensive portfolio designed to create complete control cabinet solutions, covering connections, switching, measuring, controlling, and supply.

Double-level spring-cage design enables multiple conductor connections. Compact DIN rail mounting for space-saving installations. Wide wire size range and high voltage rating for versatile use. Durable polyamide housing and copper-plated contacts ensure reliability.

Certified for hazardous areas with ATEX and IECEx approval. Explore more products in Phoenix Contact's range of DIN Rail Terminal Blocks and related components on EnvMart.
