Phoenix Contact ST 2.5-TG Series Disconnect Terminal Block, Grey, 16A, 400V, 1-Level, Spring Cage, Model 3038435

Free Delivery in India | Lowest Global Shipping Charges

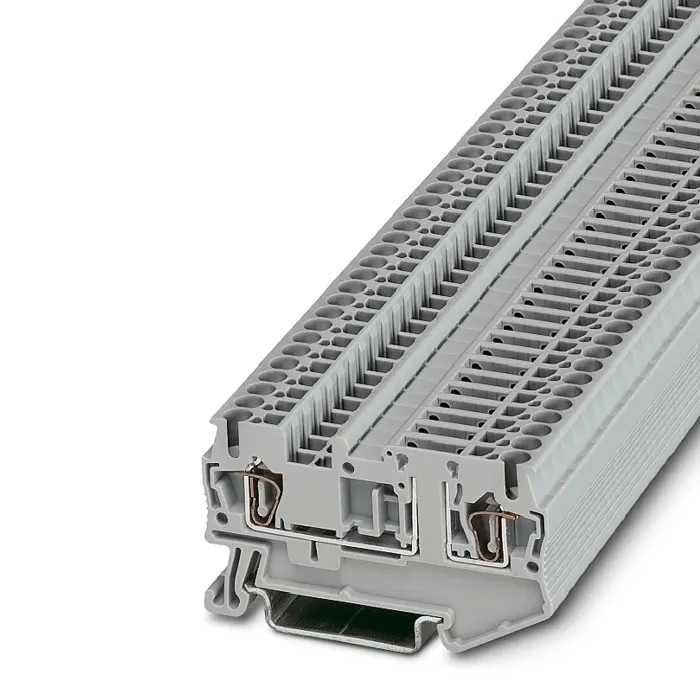

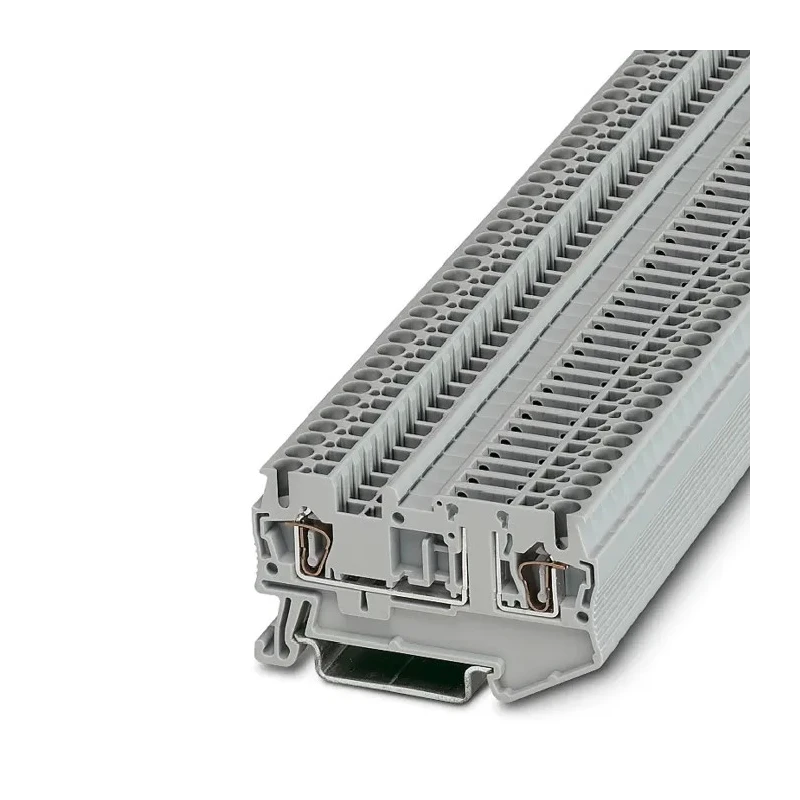

Phoenix Contact ST 2.5-TG Series Disconnect Terminal Block, Grey, 16A, 400V, 1-Level, Spring Cage, Model 3038435

Name: Phoenix Contact ST 2.5-TG Series Disconnect Terminal Block, Grey, 16A, 400V, 1-Level, Spring Cage, Model 3038435
Brand: PHOENIX CONTACT
SKU: 343623
Price: 3.58 USD
Availability: InStock



Category DIN Rail Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	400V
Brand	Phoenix Contact
Colour	Grey
Model	3038435
Series	ST 2.5-TG
Termination Type	Spring Cage
Maximum Operating Temperature	125°C
Number of Levels	1
Sub Type	Disconnect
Minimum Operating Temperature	-60°C
Standards/Approvals	IEC 60947-7-1, EAC, cULus, CSA
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	28AWG
Cable CSA	0.08, 4mm²
Terminal Block Current	16A

Key Features

Designed for industrial automation and control panels.
Supports conductor cross-sections from 0.08mm² to 4mm².
Features a secure spring-cage termination for stable wire retention.
Operates within a temperature range of -60°C to 125°C.
Compact 1-level grey housing for easy installation and identification.
Meets IEC 60947-7-1, EAC, cULus, and CSA standards.
Suitable for mounting on NS 35/7.5 and NS 35/15 rails.
Non-fused disconnect functionality ensures versatility.

Product Description

The Phoenix Contact 3038435 ST 2.5-TG Series Disconnect Terminal Block is engineered for dependable electrical connections in demanding industrial, automation, railway, and electronic applications. Rated at 16A current and 400V voltage, this terminal block ensures robust performance across a wide range of operational conditions.

Its grey polyamide housing supports seamless integration on standard DIN rails, suitable for NS 35/7.5 and NS 35/15 mounting systems. The one-level design coupled with a spring-cage termination type provides secure and vibration-resistant wire connections, accommodating conductor sizes from 0.08mm² to 4mm², including flexible conductors up to 2.5mm².

The device operates effortlessly within a temperature range of -60°C to 125°C. It is built according to strict IEC 60947-7-1, EAC, cULus, and CSA standards, meeting safety and performance requirements for both industrial automation and railway sectors.

Its disconnect feature offers operational safety without fusing, making it ideal for circuit isolation in control panels and electronic assemblies. The grey color aids in identifying and organizing wiring setups efficiently within complex configurations.

Applications include use in automation control systems, railway projects demanding rigorous certification compliance, and general electrical distribution networks requiring reliable disconnect terminals.

Designed for industrial automation and control panels. Supports conductor cross-sections from 0.08mm² to 4mm². Features a secure spring-cage termination. Operating temperature range from -60°C to 125°C. Compact 1-level design for DIN rail mounting.

Meets IEC 60947-7-1 and other international standards. Non-fused disconnect functionality. Compatible with NS 35/7.5 and NS 35/15 rails. Manufactured in Germany ensuring quality and reliability.

Choose the Phoenix Contact 3038435 disconnect terminal block for high-quality industrial electrical connections and expert compliance with international standards. Browse the Electronics & Electricals category for more DIN Rail Terminal Blocks and accessories.
