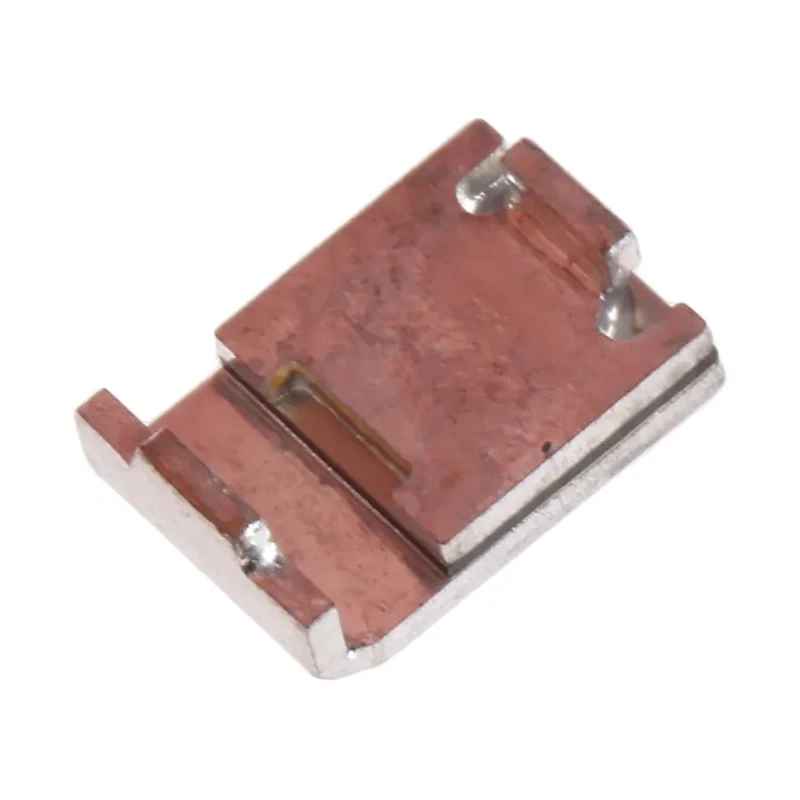

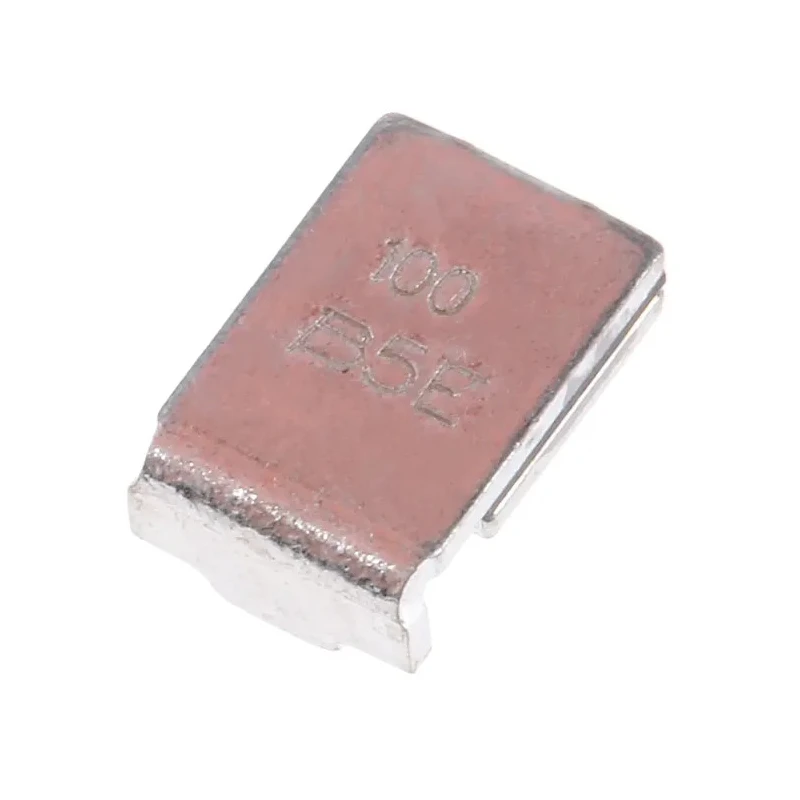

Bourns Resettable Fuse 1.1 A Hold Current 30V Voltage Surface Mount Technology MF-SM100-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Bourns |
| Height | 3mm |
| Length | 7.98mm |
| Model | MF-SM100-2 |
| Width | 5.44mm |
| Current Rating | 80A |
| Series | MF-SM |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 2920 |
| Trip Current | 2.2A |
| Power Dissipation | 1.7W |
| Terminal Material | Tin Plated Brass |
| Standards/Approvals | RoHS |
| Time to Trip | 0.5s |
| Hold Current | 1.1A |
| Minimum Resistance | 0.12Ω |
| Maximum Resistance | 480mΩ |
Key Features
- Self-resetting fuse designed for protection against excessive currents.
- Maintains low resistance during normal operation and switches to high resistance during faults.
- Supports surface mount technology for compact PCB integration.
- Withstands operating temperatures from -40°C to 85°C.
- Packaged per EIA 481-2 standards for efficient insertion.
- Suitable for security systems, automotive, medical, and telecommunications equipment.
- Maintenance free operation for thousands of reset cycles.
- Compact dimensions for space-saving electronic designs.
Product Description
The Bourns MF-SM100-2 is a high-quality resettable fuse engineered for circuit protection in electrical and electronic applications. It features a hold current of 1.1 A and is rated for 30V operation. This fuse utilizes surface mount technology enabling compact PCB assembly and space-saving designs.
It exhibits rapid transition from a low resistance state to a high resistance state during electrical overloads or short circuits and self-resets automatically when fault conditions clear, maintaining maintenance-free durability for thousands of cycles. It operates reliably over a temperature range from -40°C to 85°C.
Its compact size - with dimensions approximately 7.98mm length, 3mm height, and 5.44mm width - and tin-plated brass terminals ensure efficient conduction and ease of mounting. Compliance with RoHS and packaging conforming to EIA 481-2 standards make this fuse suitable for modern electronics manufacturing practices.
The MF-SM100-2 is ideal for protecting sensitive electronics in security systems, power supplies, transformers, automotive and medical devices, instrumentation, control systems, computers, peripherals, audio-visual, and telecommunications applications.
Self-resetting, eliminating the need for fuse replacement. Rapid trip time of 0.5 seconds for overcurrent protection. Low power dissipation at 1.7W, enhancing energy efficiency. Manufactured with tin-plated brass terminals for excellent conductivity.
Certified RoHS compliant for environmental safety. Package type: Reel, facilitating automated assembly. Compact size suitable for dense PCB layouts. Wide operating temperature range for harsh environments. Explore more from the Bourns MF-SM series for reliable Resettable Fuses optimized for industrial and consumer electronics applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this model is 1.1 A.
It can operate reliably at temperatures up to 85°C.
This resettable fuse is rated for a maximum voltage of 30V.
The dimensions are approximately 7.98mm in length, 5.44mm in width, and 3mm in height.
The trip current for the MF-SM100-2 is 2.2 A.
The time to trip during an overload is 0.5 seconds.
The power dissipation is 1.7W, which enhances energy efficiency.
The terminals are made of tin-plated brass, ensuring excellent conductivity.
Yes, this resettable fuse is certified RoHS compliant for environmental safety.
It is packaged per EIA 481-2 standards for efficient insertion.
This model is suitable for applications in security systems, automotive, medical, and telecommunications equipment.
The minimum operating temperature is -40°C.
