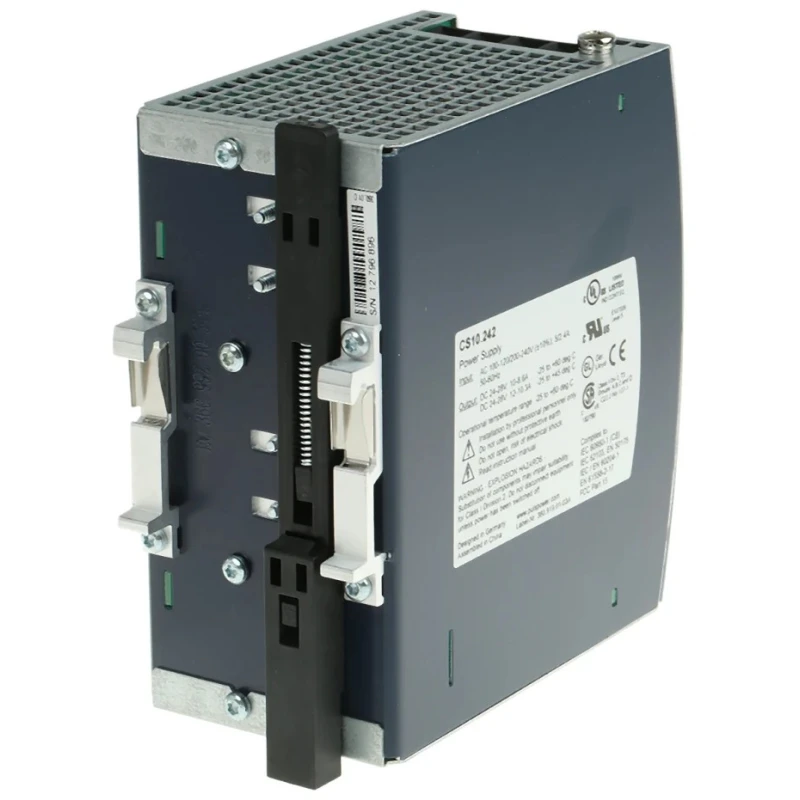

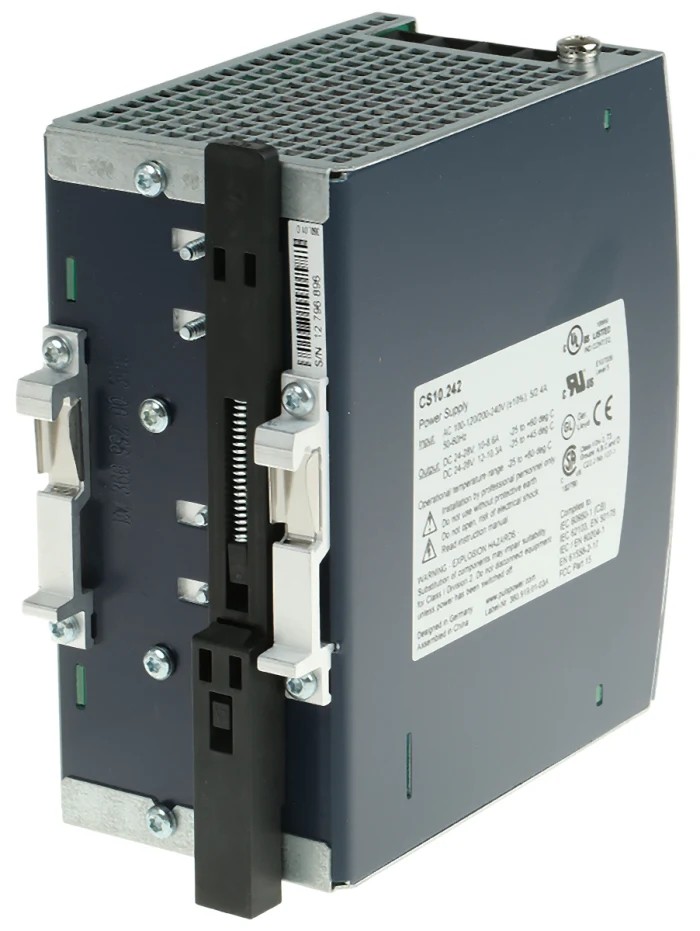

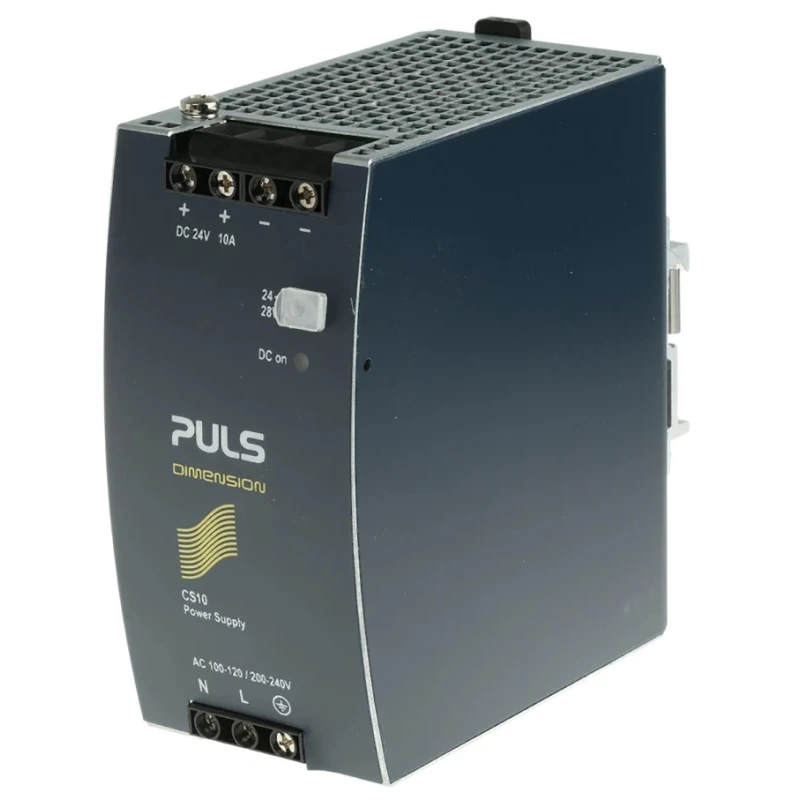

PULS DIMENSION Switched Mode DIN Rail Power Supply 120V AC Input 28V DC Output, 10A, 240W CS10.242

PULS CS10.242 DIMENSION is a switched mode DIN rail power supply designed for industrial and automation applications requiring stable 28V DC output at 10A with 240W power.

It features a robust wide-range AC input voltage from 100V to 120V with automatic switching between 115/230 V ranges to prevent operational faults. The unit includes a power boost capability of +20% for loads below 45°C ambient temperature or with forced ventilation, delivering high reliability for demanding conditions.

The power supply is constructed with an IP20 rated enclosure offering protection while installed inside electrical cabinets or control panels. Large screw terminals allow easy and secure wiring connections, supporting field installation and maintenance convenience.

Compact dimensions of 124mm height, 60mm width, and 117mm depth ensure compatibility with standard DIN rail mounting systems, saving panel space. It operates reliably in ambient temperatures ranging from -25°C minimum up to 70°C maximum, suitable for industrial and manufacturing environments.

This model complies with EN61000-3-2 for power factor correction, improving energy efficiency and reducing electrical disturbances. The electrolytic capacitors used have a life expectancy of approximately 50,000 hours, ensuring long service life and minimizing downtime.

Supports wide input voltage range with automatic 115/230 V switching for fault avoidance. Provides continuous power boost of +20% below 45°C or under forced ventilation. Equipped with DC-ok LED indicator for operational status monitoring.

Compact design fits standard DIN rail installations with space optimization. Operates reliably between -25°C and 70°C ambient temperature. IP20 enclosure rating protects against solid ingress and electrical contact. Power factor correction to EN61000-3-2 standard enhances efficiency.

Durable electrolytic capacitors with 50,000 hours life expectancy. Large screw terminals facilitate easy and secure wiring.

This switched mode DIN rail power supply is suited for applications in industrial automation, manufacturing assembly lines, control systems, HVAC control, and electrical panels requiring reliable DC power source under varying environmental conditions.
