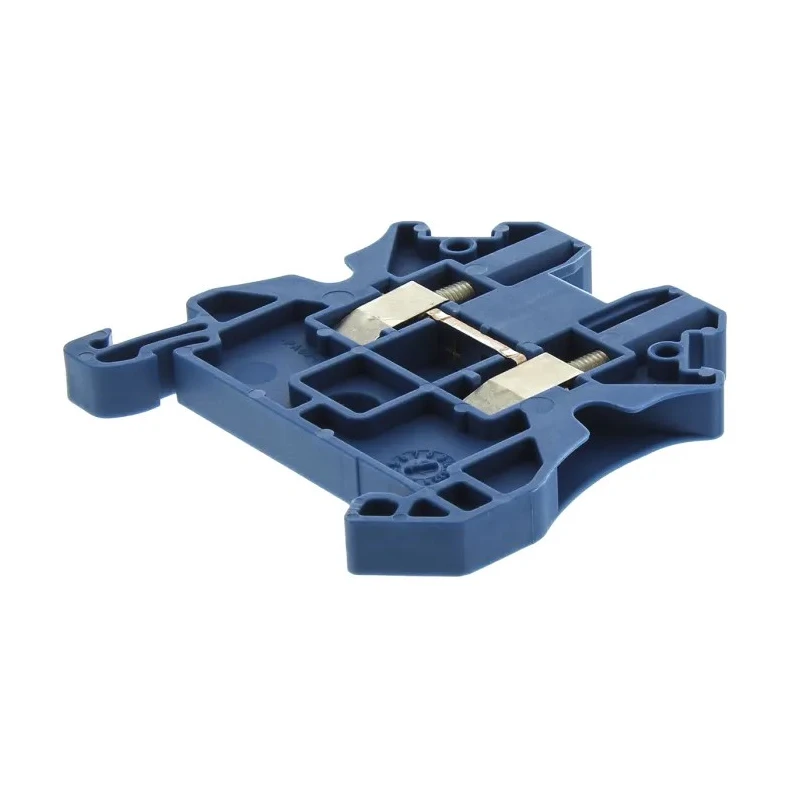

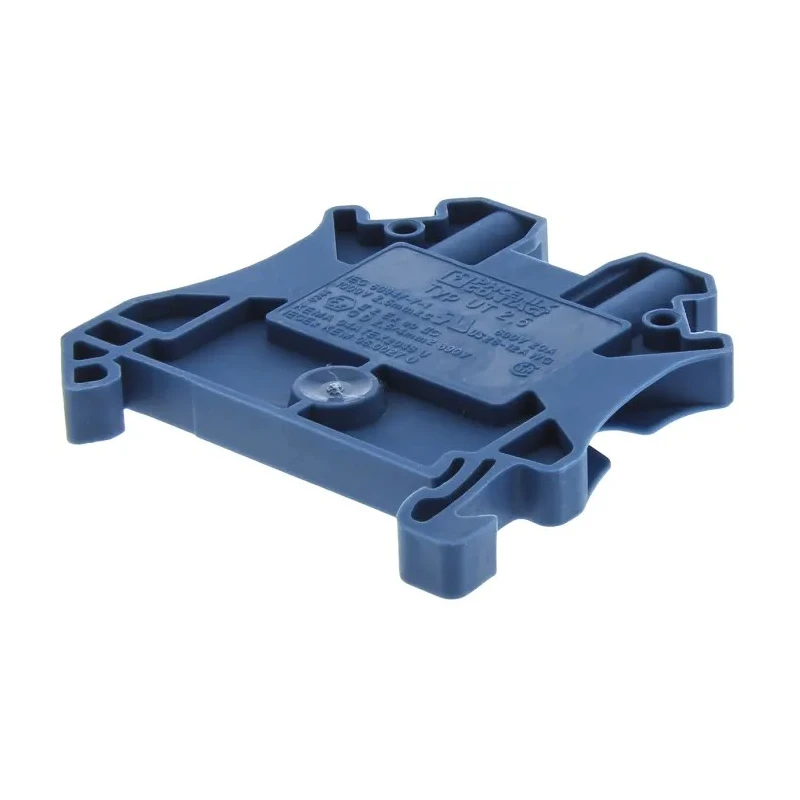

Phoenix Contact Feed Through Terminal Block Blue 0.14mm² to 4 mm² 1-Level Screw Termination ATEX Certified 3044089

Phoenix Contact 3044089 is a high-quality Feed Through Terminal Block designed for industrial electrical connection applications. This blue terminal block supports conductor sizes from 0.14mm² up to 4 mm², accommodating wire gauges from 26 AWG to 12 AWG in a single-level configuration with screw termination for secure, reliable connections.

The terminal block is rated for a current of 24A, making it well suited for high-power electrical systems such as machinery in manufacturing, railway engineering, and machine building. Its robust polyamide housing provides excellent electrical insulation and safeguards against electric shock with combined back-of-the-hand and finger protection features.

With operational temperature limits ranging from -50°C to 110°C, this product ensures reliable performance in harsh industrial and commercial environments. It carries the ATEX certification, allowing use in potentially explosive atmospheres, enhancing safety in hazardous zones.

The terminal block offers a rated surge voltage of 8kV, enabling it to withstand voltage spikes and surges without damage. Additionally, the UL 94-V0 flammability rating highlights its self-extinguishing capabilities, contributing to fire safety in electrical panels.

An open side panel design permits easy access and adjustment of wiring without removing the block entirely from the DIN rail or panel, facilitating maintenance and installation efficiency.

This product complies with multiple global approvals including IECEX, IECEE CB Scheme, UL Recognised, VDE, CSA, and others, ensuring compatibility with international regulatory requirements.

Manufactured in Germany by Phoenix Contact, the terminal block meets stringent quality and performance standards required in industrial automation, electrical installations, manufacturing, and water treatment sectors.

Key features such as wire size compatibility, current rating, termination type, and hazardous area certification make this terminal block a versatile and reliable choice for control panels and wiring applications.

Supports wire sizes from 26 AWG to 12 AWG. Rated current of 24A for robust electrical performance. Polyamide housing with electrical insulation and mechanical protection. Wide operating temperature range from -50°C to 110°C.

Certified for use in hazardous areas with ATEX approval. Rated surge voltage of 8kV for electrical surge protection. UL 94-V0 flammability rating for safety. Open side panel for easy wire adjustment. Compliant with multiple international safety and quality standards.

Manufactured in Germany ensuring high manufacturing quality. Explore more high-quality DIN Rail Terminal Blocks and related products in our Electronics & Electricals category on EnvMart for industrial and commercial applications.
