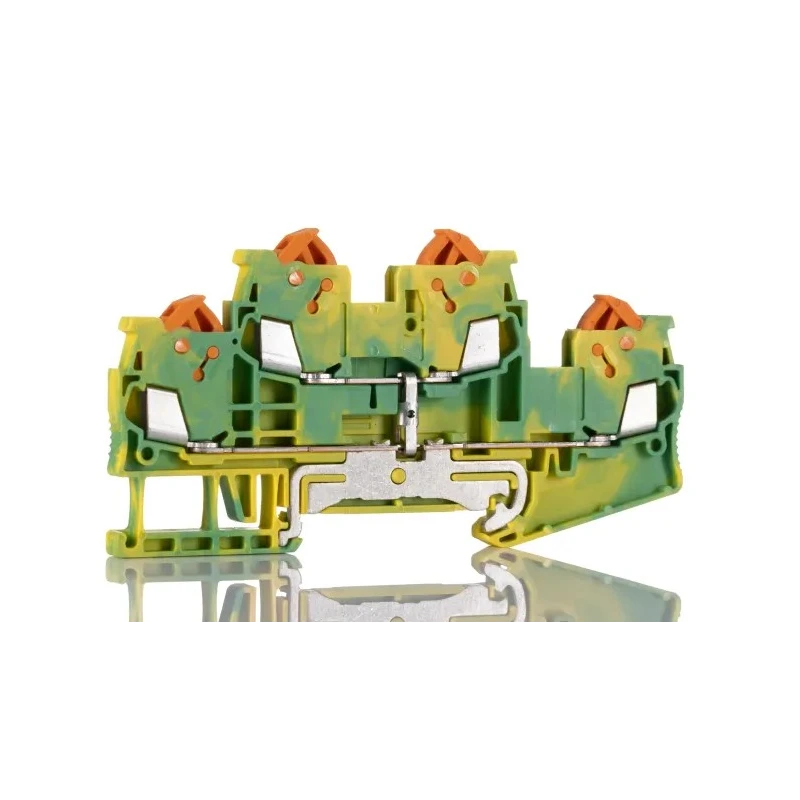

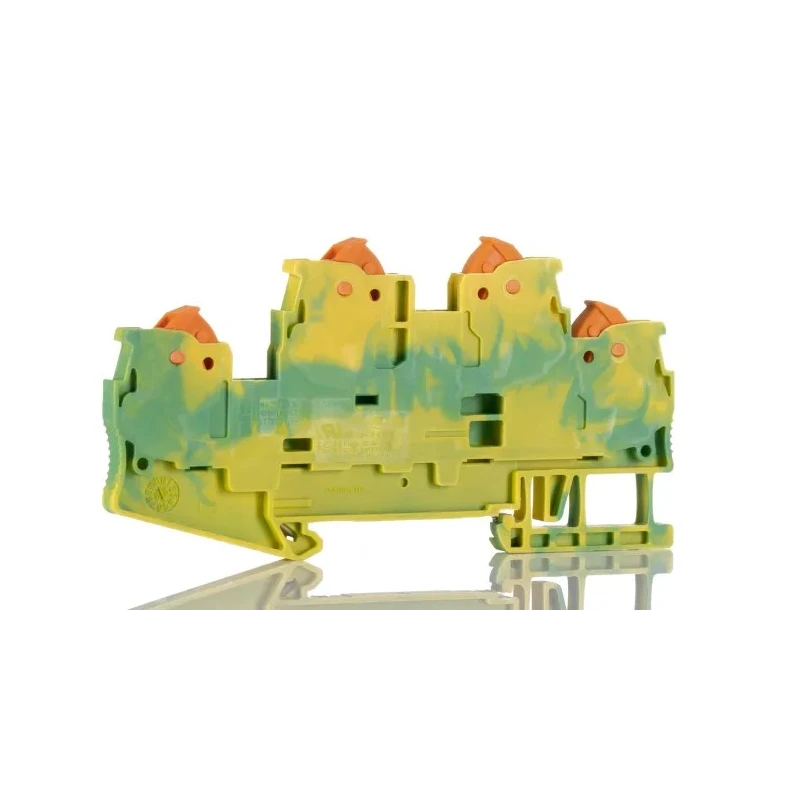

Phoenix Contact QTTCB 1.5-PE Series Earth Terminal Block Yellow Green 0.25-1.5 mm² 2-Level Quick Connect 3205132
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Yellow, Green |
| Model | 3205132 |
| Series | QTTCB 1.5-PE |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 2 |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | IECEx, EAC Ex, ATEX |
| Standards/Approvals | IEC |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
| Cable CSA | 0.25, 1.5mm² |
| Terminal Block Current | 27.5A |
Key Features
- Double-level design with 4 connections arranged in two rows for neat wiring management.
- Bright yellow and green color coding enhances earth identification and safety.
- Accommodates wire sizes from 24 AWG (0.25 mm²) to 16 AWG (1.5 mm²) for versatile use.
- Quick-connect termination enables fast and tool-free wire insertion.
- Maximum terminal block current rating is 27.5 A for reliable current handling.
- Operates in a wide temperature range from -60°C to 105°C, supporting harsh environments.
- Housing made from PA material provides excellent insulation and UL 94-V0 flammability rating.
- Certified for hazardous areas with IECEx, EAC Ex, and ATEX approvals.
Product Description
The Phoenix Contact 3205132 QTTCB 1.5-PE Series Earth Terminal Block is designed for high-performance industrial electrical systems requiring safe and organized earth wiring solutions. Its double-level configuration provides four connection points in two neat rows, enabling effective wire management and reduced wiring errors.
The terminal block is color-coded in yellow and green for immediate identification of earth connections, enhancing electrical safety. It accepts a wide range of wire sizes, from 0.25 mm² (24 AWG) up to 1.5 mm² (16 AWG), accommodating various conductor types and installation needs.
Featuring quick-connect termination, wiring is simplified and does not require specialized tools, reducing installation time and labor. The terminal block is rated for 800 volts and can safely carry currents up to 27.5 amperes, suitable for industrial power distribution applications.
The PA (polyamide) housing provides strong electrical insulation and complies with UL 94-V0 flammability standards, meaning it will extinguish flames within 10 seconds if ignited, enhancing safety in critical environments.
This product is built to withstand demanding environmental conditions, with an operating temperature range from -60°C to +105°C, making it suitable for a broad spectrum of industrial, manufacturing, and automation use cases.
It is certified for use in hazardous areas according to IECEx, EAC Ex, and ATEX standards, ensuring compliance with global safety requirements. Additionally, the terminal block offers protection against transient voltage spikes with a surge voltage rating of 6 kV, protecting downstream equipment.
Double-level terminal block with 4 connections for compact wiring. Yellow and green color coding for earth identification. Accepts 0.25 mm² to 1.5 mm² wire sizes (24 to 16 AWG). Quick-connect terminals for rapid and tool-free installation.
Rated for 800 V and 27.5 A current capacity. PA housing with UL 94-V0 flame rating. Wide operating temperature: -60°C to +105°C. IECEx, EAC Ex, and ATEX hazardous area certified. Surge voltage rating of 6 kV for electrical protection.
This terminal block is ideal for electrical panels, industrial automation systems, power distribution boards, and hazardous area manufacturing environments. Its robust design ensures a reliable earth connection, preventing electrical hazards and enhancing system safety.
Explore more Phoenix Contact DIN Rail Terminal Blocks and related products on EnvMart for comprehensive industrial electrical solutions.
