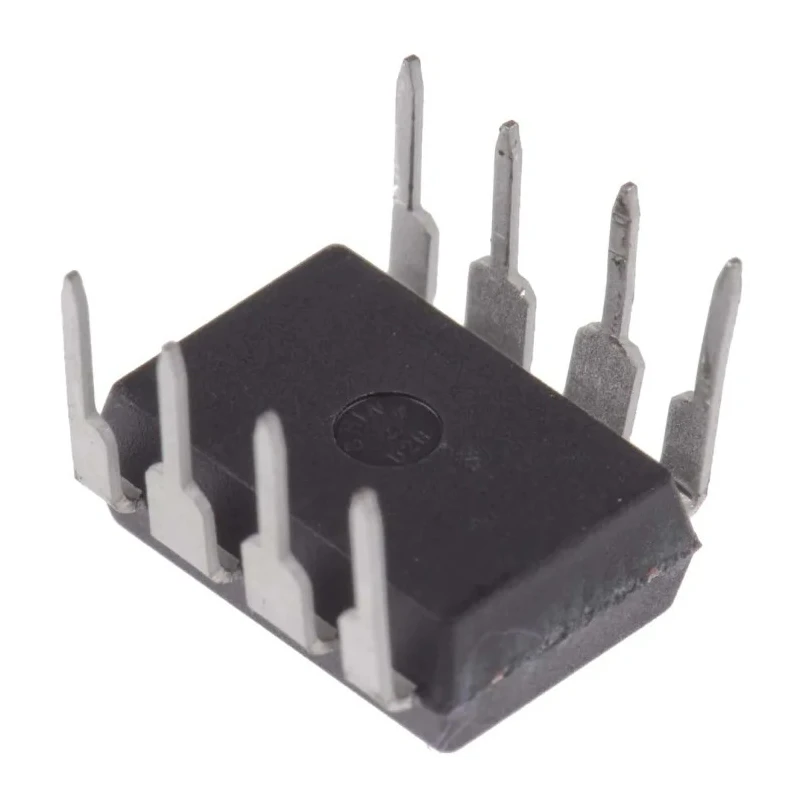

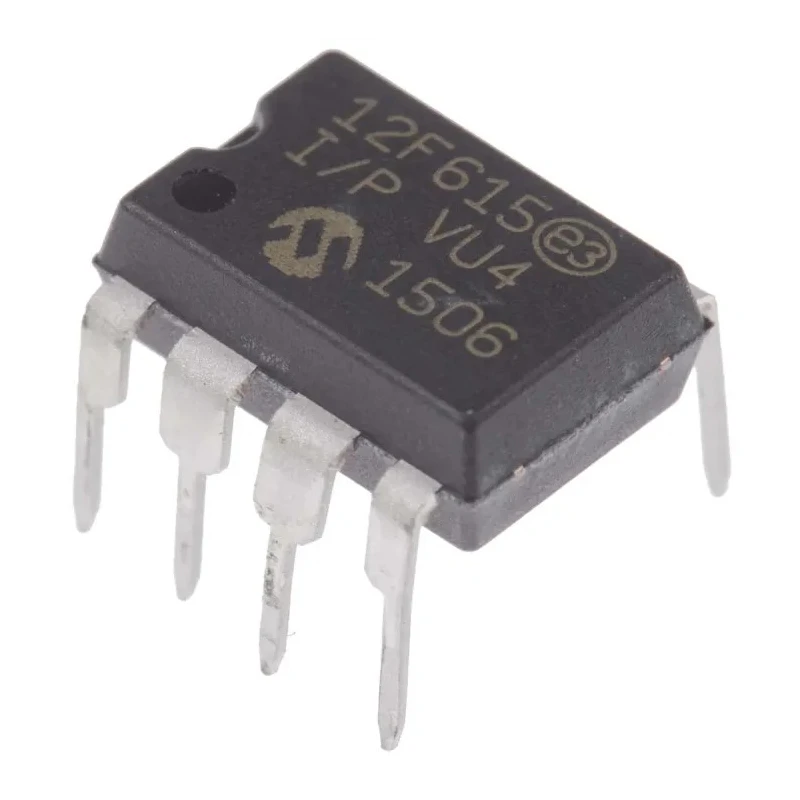

Microchip PIC12F615-I/P 8-Bit PIC Microcontroller, 20 MHz, 1.75 kB FLASH, 8-Pin PDIP

Microchip PIC12F615-I/P is an advanced 8-bit PIC microcontroller designed for efficient performance in embedded applications. Featuring a maximum clock frequency of 20 MHz and 1.75 kB of FLASH memory, it is housed in an 8-pin PDIP package allowing through-hole mounting. This microcontroller integrates a PIC device core with a data bus width of 8 bits and supports SPI interface for communication.

The device provides 64-bit RAM, 5 programmable I/Os, and 1 analogue comparator, making it suitable for a wide range of control and automation tasks. It features an in-circuit serial programming capability (ICSP) facilitating on-board programming and debugging.

Designed with reliability in mind, it complies with the automotive standard ISO/TS 16949 and operates within a temperature range of -40°C to 85°C. The microcontroller boasts 3 timers and a program memory type of FLASH, ensuring efficient task timing and program data retention.

Compact physical dimensions of 10.16 mm length, 7.11 mm width, and 4.95 mm height make it ideal for space-constrained designs. The maximum supply voltage is 5.5 V, while the minimum is 2 V, supporting flexible power requirements, with power dissipation capped at 800 mW.

Operates at a maximum clock frequency of 20 MHz for fast processing. 1.75 kB flash program memory provides ample space for embedded programs. 5 programmable input/output pins facilitate varied device interfacing. Includes a 10-bit ADC with 4 channels and 1 analogue comparator for sensor interfacing.

Designed to meet automotive standards ISO/TS 16949 ensuring durability. Supports through-hole PDIP mounting with 8 pins suitable for prototyping and production. Wide operating temperature range suitable for industrial environments.

This microcontroller is well-suited for applications in industrial control, automotive electronics, consumer devices, and embedded system prototyping. Its integrated features enable efficient real-time processing and versatile interfacing capabilities.
