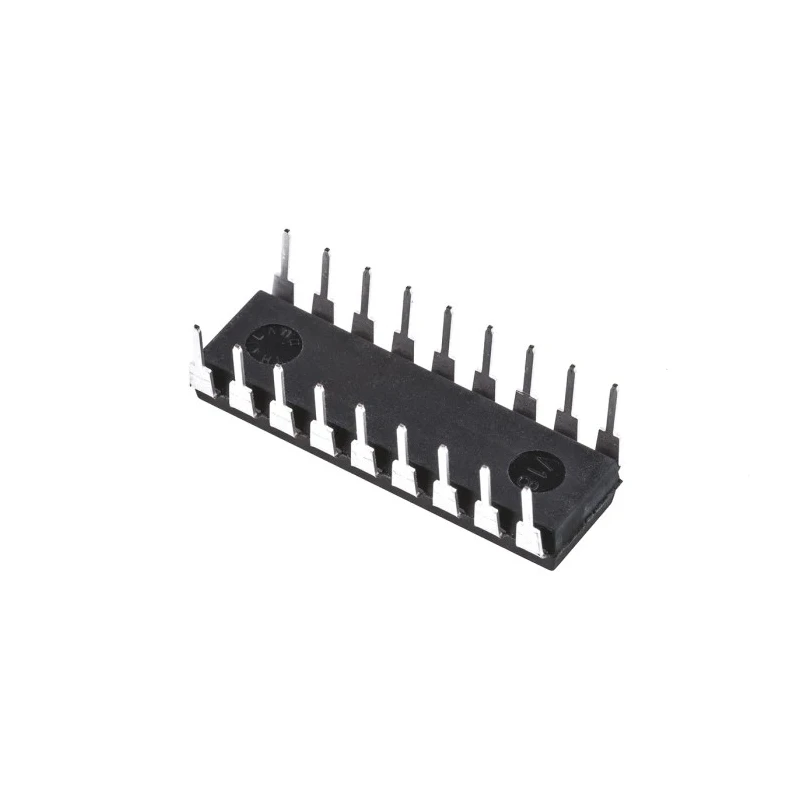

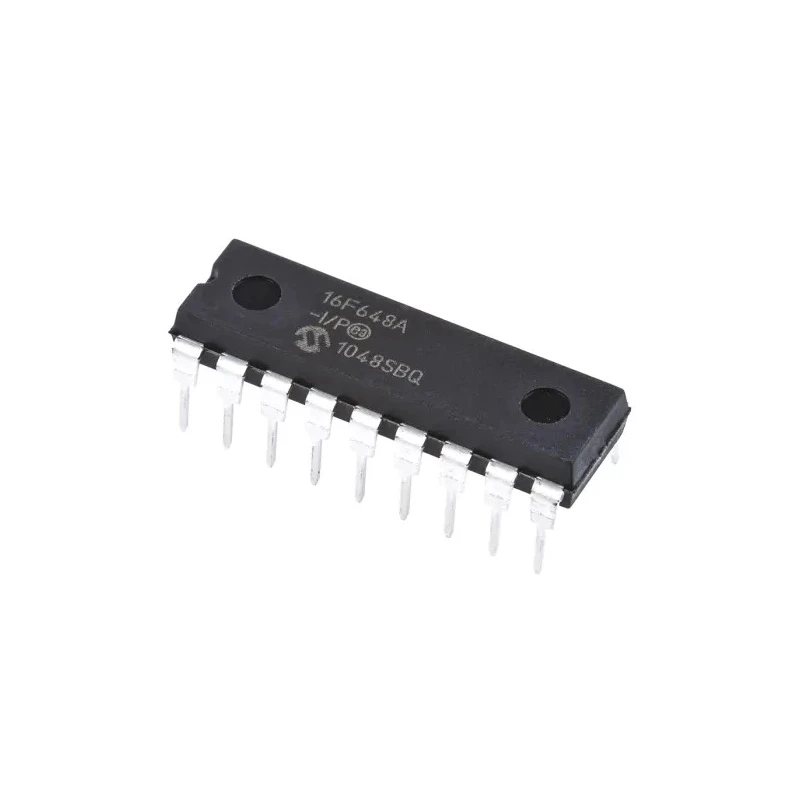

Microchip 8 bit PIC16F Microcontroller, 20 MHz, 7kB FLASH, 18-Pin PDIP PIC16F648A-I/P

Microchip PIC16F648A-I/P is a robust 8-bit PIC Microcontroller designed for versatile embedded system applications. It features a maximum clock frequency of 20 MHz and includes 7kB of flash program memory, making it ideal for moderate complexity control tasks. The device comes in an 18-pin PDIP package for easy through-hole mounting on prototypes and production boards.

This microcontroller incorporates Microchip's mid-range PIC architecture with an 8-level hardware stack and a 35-instruction set providing efficient performance with up to 5 MIPS. The 16 programmable I/O pins allow connection to external peripherals, while the UART interface supports serial communication.

The PIC16F648A-I/P includes integrated peripherals such as two analog comparators, two 8-bit timers, and one 16-bit timer ideal for timing and counting operations. It features power-saving capabilities including Power-On Reset (POR), Power-Up Timer (PWRT), Brown-Out Reset (BOR), and Watchdog Timer (WDT) for stability and safety in industrial and commercial applications.

Operating voltage ranges from 2V minimum to a maximum of 6V with a maximum power dissipation of 800mW. The device supports low voltage programming (LVP) and in-circuit serial programming (ICSP), simplifying firmware updates and production programming.

Its compact dimensions of 23.37mm length, 7.11mm width, and 4.95mm height make it suitable for space-constrained designs. With an operational temperature range of -40°C to 85°C, it is well-suited for industrial control, automotive electronics, and consumer device applications requiring reliable processing power.

This 18-pin PDIP microcontroller supports UART communication for easy interfacing. Features 7kB of Flash memory suitable for embedded application code. Includes hardware timers useful for precise event control. Integrated analog comparators enable sensor signal processing.

Robust operating temperature and voltage specifications for versatile use. Low voltage programming and in-circuit serial programming included. Explore the Microchip Microcontroller range at EnvMart for industrial, automotive, and consumer electronic design needs.
