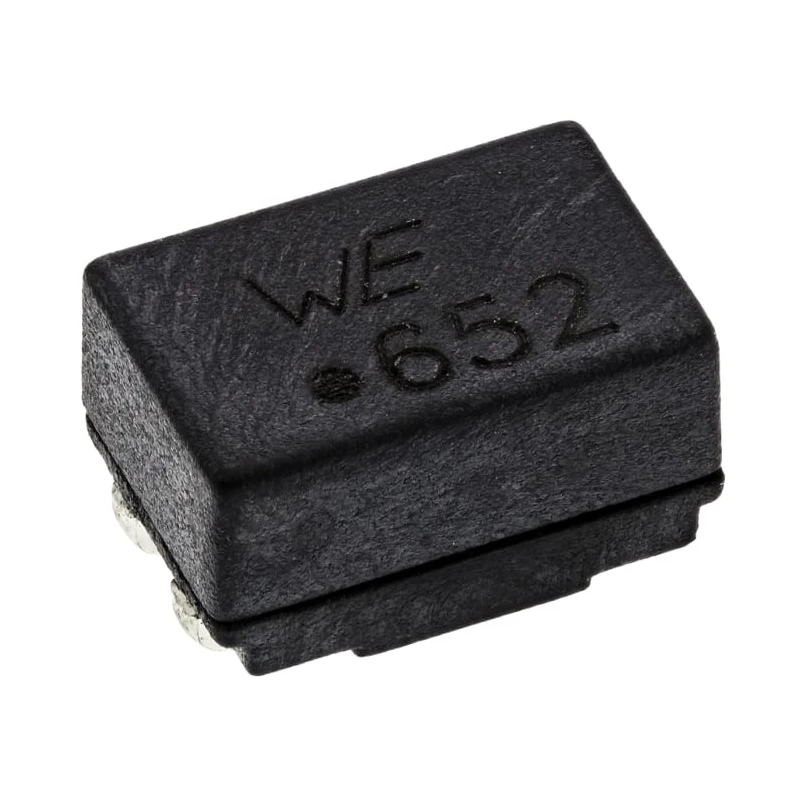

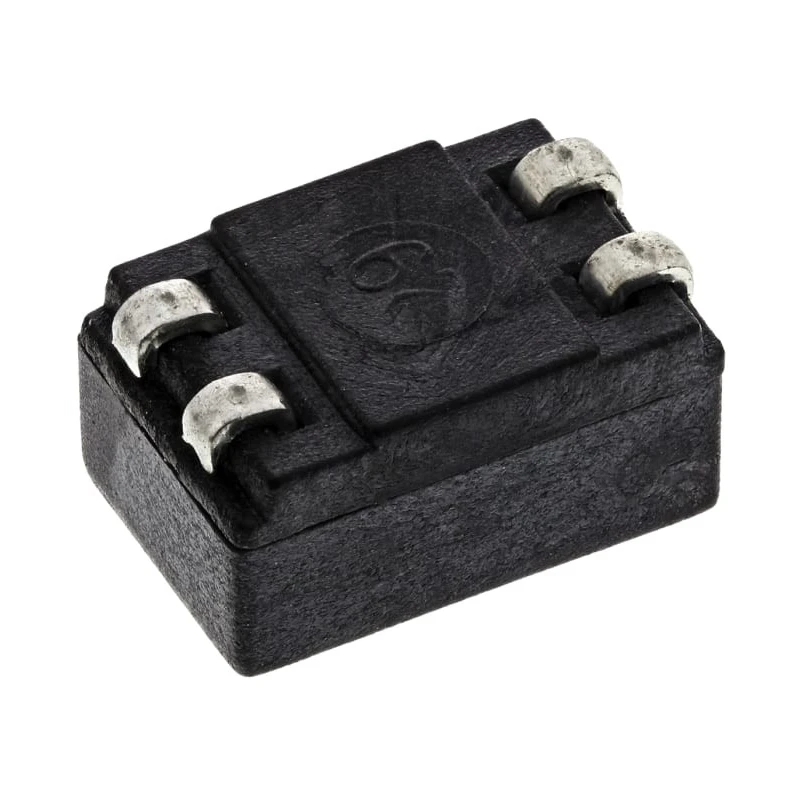

RS PRO Surface Mount Common Mode Line Filter with Ferrite Core 6.5μH Dual ±50% 400mA IDC, WE-SL2 744229
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Height | 5mm |
| Length | 9.2mm |
| Model | 744229 |
| Depth | 6mm |
| Packaging | Tape & Reel |
| Series | WE-SL2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, ISDN |
| Core Material | Ferrite |
| Inductance | 6.5μH |
| Standards/Approvals | UL-94 V-0, RoHS |
| Maximum DC Current | 400mA |
| Pin Count | 4 |
| Maximum DC Resistance | 950mΩ |
| Inductance Tolerance | ±50 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
| RS PRO 1 mH 500 mA Common Mode Choke 250 mΩBrand | RS PRO |
Key Features
- This is a surface mount device designed for line filtering in signal and power lines.

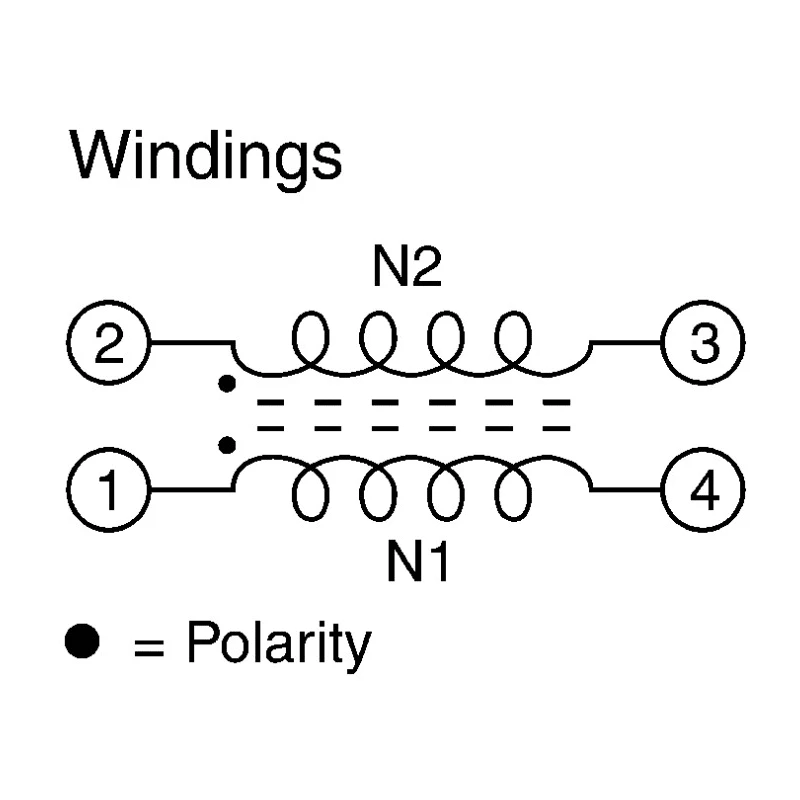

- The choke employs a dual current-compensated ring core for optimal noise suppression.
- Maximum DC resistance is 950 milliohms ensuring minimal power loss.
- Constructed with a ferrite core and offers UL-94 V-0 and RoHS certifications for safety and environmental compliance.
- Operates reliably across a temperature range of -40°C to 125°C with AEC-Q200 automotive standard certified quality.

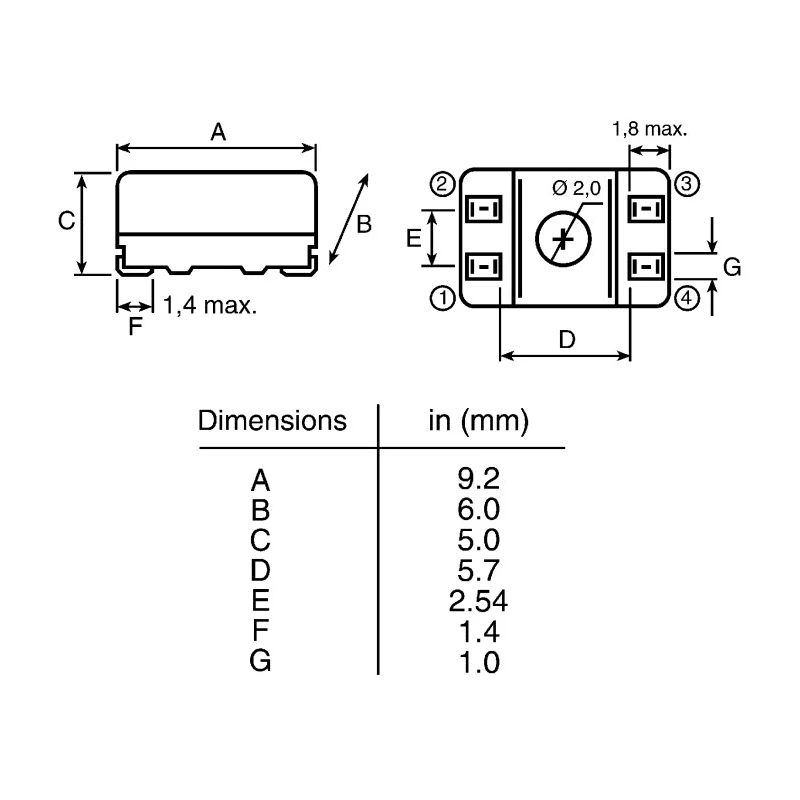

- Compact dimensions of 9.2mm length, 6mm depth, and 5mm height facilitate PCB space saving.
- Termination is surface mount type with 4 pins for robust mechanical and electrical connection.
- Suitable for filtering in bus systems like CAN, USB, and ISDN and applications requiring signal integrity and power supply noise reduction.
Product Description
Wurth Elektronik 744229 WE-SL2 Series Surface Mount Common Mode Line Filter features a ferrite core construction with a 6.5μH inductance, designed for effective noise suppression in industrial and automotive electronics.
This dual inductor choke handles a maximum DC current of 400mA with a tolerance of ±50%, making it ideal for filtering interference across data and power lines in sensitive environments.
The component supports surface mount technology with a compact 4-pin package having dimensions of 9.2mm in length, 6mm in depth, and 5mm in height, ensuring integration flexibility on compact PCB designs.
Built to automotive standard AEC-Q200, it withstands temperature extremes from -40°C to 125°C, and complies with UL-94 V-0 flammability rating and RoHS environmental directives.
This choke is highly suitable for bus systems such as CAN, USB, and ISDN, as well as signal filtering and power supply smoothing in industrial automation, laboratory instrumentation, and commercial electronic equipment.
This surface mount choke uses a Ferrite Core to enhance inductance and reduce electromagnetic interference. The dual inductor configuration compensates current to improve noise suppression performance. Low DC resistance at 950 milliohms minimizes insertion loss during operation.
RoHS compliant and UL-94 V-0 rated for reliable and safe applications. Compact dimensions allow efficient PCB layout and assembly with tape and reel packaging. Designed to meet automotive-grade reliability with AEC-Q200 certification.
Supports filtering in both data and power lines, enhancing signal integrity. Suitable for diverse industrial, automotive, and commercial electronics use cases. Explore more Wurth Elektronik inductors and related components within the EnvMart catalog for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 6.5μH.
It can handle a maximum DC current of 400mA.
The dimensions of this unit are 9.2mm in length, 6mm in depth, and 5mm in height.
It operates reliably across a temperature range of -40°C to 125°C.
This filter uses a surface mount termination style with 4 pins.
It complies with UL-94 V-0 and RoHS standards, ensuring safety and environmental compliance.
The unit is constructed with a ferrite core, which enhances its inductance and reduces electromagnetic interference.
It is suitable for filtering in bus systems like CAN, USB, and ISDN, as well as for power supply noise reduction.
The maximum DC resistance is 950 milliohms, which minimizes power loss during operation.
It meets the AEC-Q200 automotive standard, ensuring quality for automotive applications.
It is packaged in tape and reel format, facilitating efficient handling and assembly.
This common mode line filter supports interfaces such as USB and ISDN.
