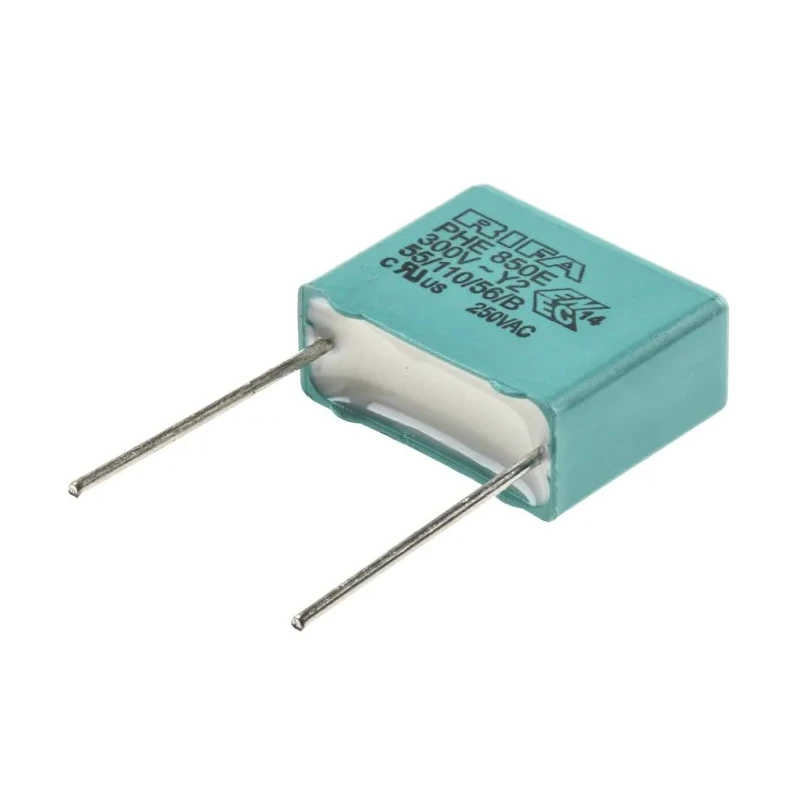

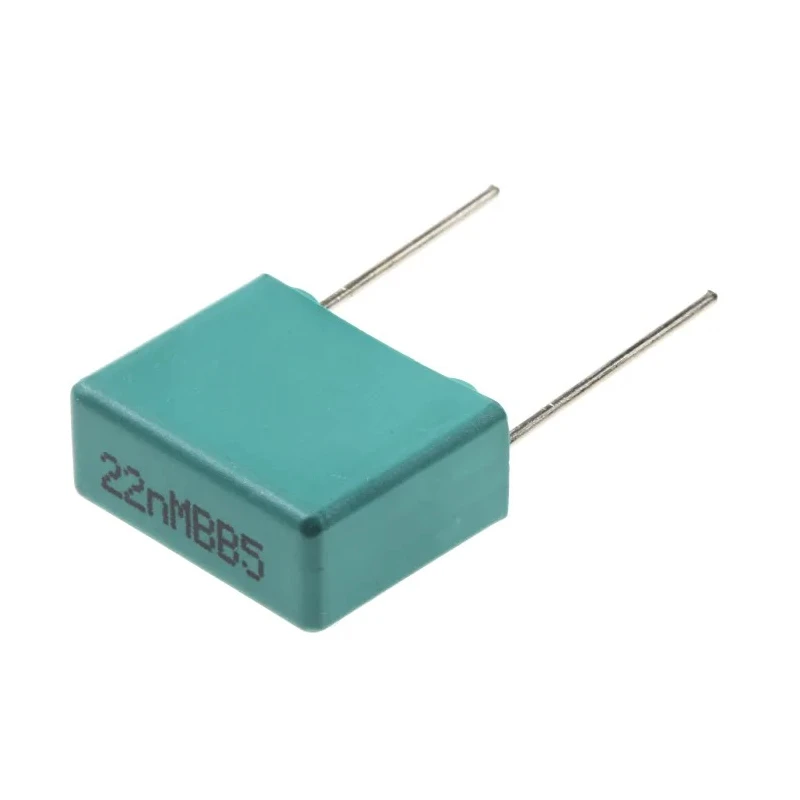

KEMET Film Capacitor Y2, ±20 %, 22 nF, 1.25 kV DC, 300V AC, Through Hole Mount PHE850

Name: KEMET Film Capacitor Y2, ±20 %, 22 nF, 1.25 kV DC, 300V AC, Through Hole Mount PHE850
Brand: KEMET
SKU: 342592
Price: 0.64 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	Indonesia
Brand	KEMET
Height	14.5mm
Length	18mm
Model	PHE850
Width	7.5mm
Mount Type	Through Hole
Series	PHE850
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.3%
Lead Length	17mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

The capacitor has a ±20 % tolerance ensuring reliable capacitance accuracy.
The PHE850 series uses metallised polypropylene film construction for stability.
It is encapsulated in self-extinguishing material complying with UL 94V-0 standards.
Designed for through-hole mounting with a radial terminal type and 15 mm lead pitch.
It operates between -55°C and 110°C suitable for harsh environments.
The component size is compact with dimensions 18 mm length, 7.5 mm width, and 14.5 mm height.
Lead diameter is 0.8 mm and lead length is 17 mm for standard insertion in PCBs.
The device is RoHS compliant and made in Indonesia.

Product Description

KEMET PHE850 Film Capacitor Y2, model PHE850, is a high-quality 22 nF film capacitor with a voltage rating of 1.25 kV DC and 300V AC, widely used for EMI suppression in electronic and electrical equipment. This capacitor is constructed from winding metallised polypropylene film, providing high stability and reliability for industrial and commercial applications.

Encapsulated in a self-extinguishing material that meets UL 94V-0 fire safety requirements, the PHE850 series ensures operational safety in various demanding environments. Its through-hole mount design with radial terminals and a 15 mm pitch facilitates easy PCB integration.

Designed for Y2 suppression class applications, it offers ±20 % capacitance tolerance and operates safely across a temperature range from -55°C to 110°C, making it suitable for EMI filtering and noise suppression in power supplies, lighting ballasts, and industrial controls.

The capacitor dimensions are 18 mm length, 7.5 mm width, and 14.5 mm height with a 0.8 mm lead diameter and 17 mm lead length, providing a low profile suitable for tight PCB layouts. Its dissipation factor is 0.3%, contributing to efficient performance with minimal losses.

KEMET PHE850 capacitors are RoHS compliant, supporting environmental safety and regulatory requirements. Manufactured in Indonesia, they meet quality standards needed for reliable industrial electronics.

±20 % capacitance tolerance for accuracy. Metallised polypropylene film for stability. Self-extinguishing encapsulation per UL 94V-0. Through-hole radial mounting with 15 mm pitch. Operating temperature range: -55°C to 110°C.

Compact size: 18 x 7.5 x 14.5 mm. Dissipation factor of 0.3% for efficiency. RoHS compliant and made in Indonesia.

This film capacitor is ideal for use in industrial, electronics manufacturing, power supplies, and EMI suppression tasks. For related components and further technical details, browse more Film Capacitors in the EnvMart catalog.
