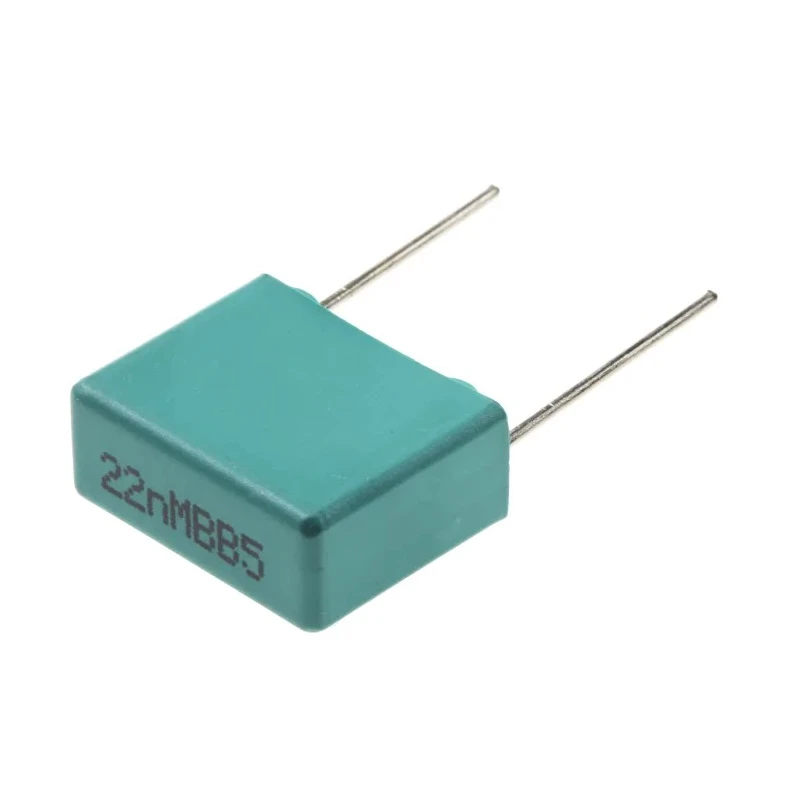

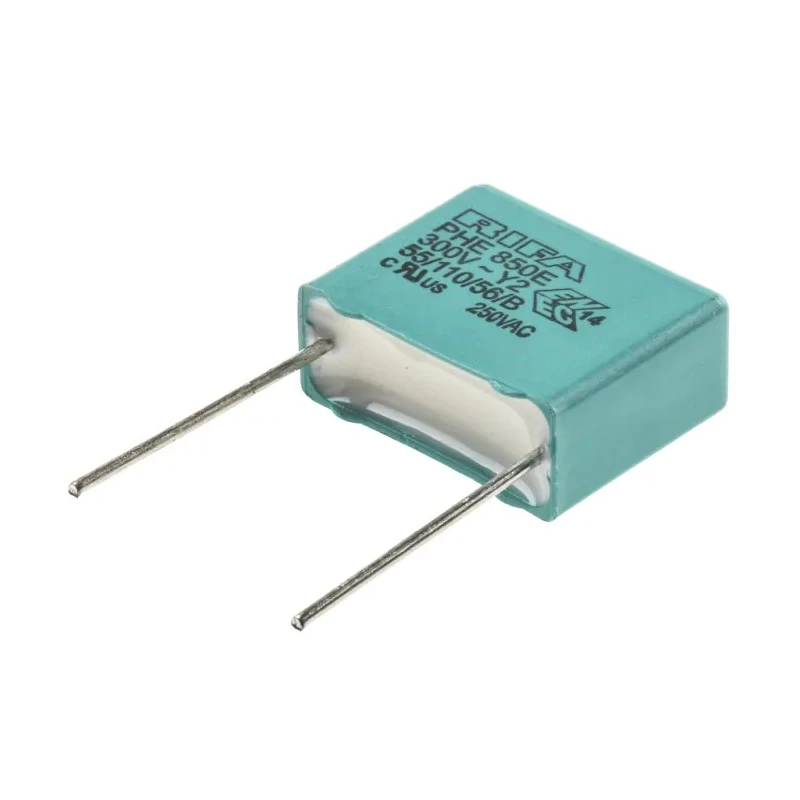

KEMET Film Capacitor Y2, Metallised Polypropylene, 22 nF ±20%, 1.25 kV DC 300 V AC, Through Hole Radial Terminal PHE850

KEMET PHE850 Film Capacitor Y2 model PHE850 is a high-quality film capacitor designed for EMI suppression applications in electronics and electrical devices. It features a metallised polypropylene film construction encapsulated in a flame-retardant housing meeting UL 94V-0 standards, ensuring safety and durability. The capacitor is rated for a capacitance of 22 nF with a tolerance of ±20% and supports a rated DC voltage of 1.25 kV and an AC voltage of 300 V, making it suitable for challenging operating conditions and reliable noise filtering.

This capacitor is tailored for through hole mounting with radial terminal leads spaced at 15 mm pitch, providing robust mechanical stability on printed circuit boards. It operates effectively across a wide temperature range from -55°C to 110°C, accommodating industrial and commercial temperature demands. The compact size (18 mm length, 7.5 mm width, and 14.5 mm height) enables integration into various device layouts with space constraints.

The PHE850 series is engineered for safety with self-extinguishing material that reduces fire risk and includes EMI suppression class Y2, designed specifically for line-to-earth noise filtering. Its low dissipation factor of 0.3% highlights efficiency and minimal energy loss during operation. The capacitor has a lead diameter of 0.8 mm and lead length of 17 mm to facilitate secure board attachment.

Applications for this capacitor include interference suppression in power supplies, electrical equipment, and industrial machinery where electromagnetic noise reduction is critical to maintain device performance and compliance with electromagnetic compatibility standards.

Metallised polypropylene film construction ensures electrical stability and low losses. Self-extinguishing UL 94V-0 compliant encapsulation enhances safety. Through hole radial terminal mounting offers mechanical durability and easy integration.

EMI suppression class Y2 suitable for line-to-earth interference applications. Wide operating temperature range supports diverse industrial environments. Compact size for flexible design integration in electronic assemblies.

RoHS compliant, meeting environmental regulations. Manufactured in Indonesia, ensuring consistent quality standards.
