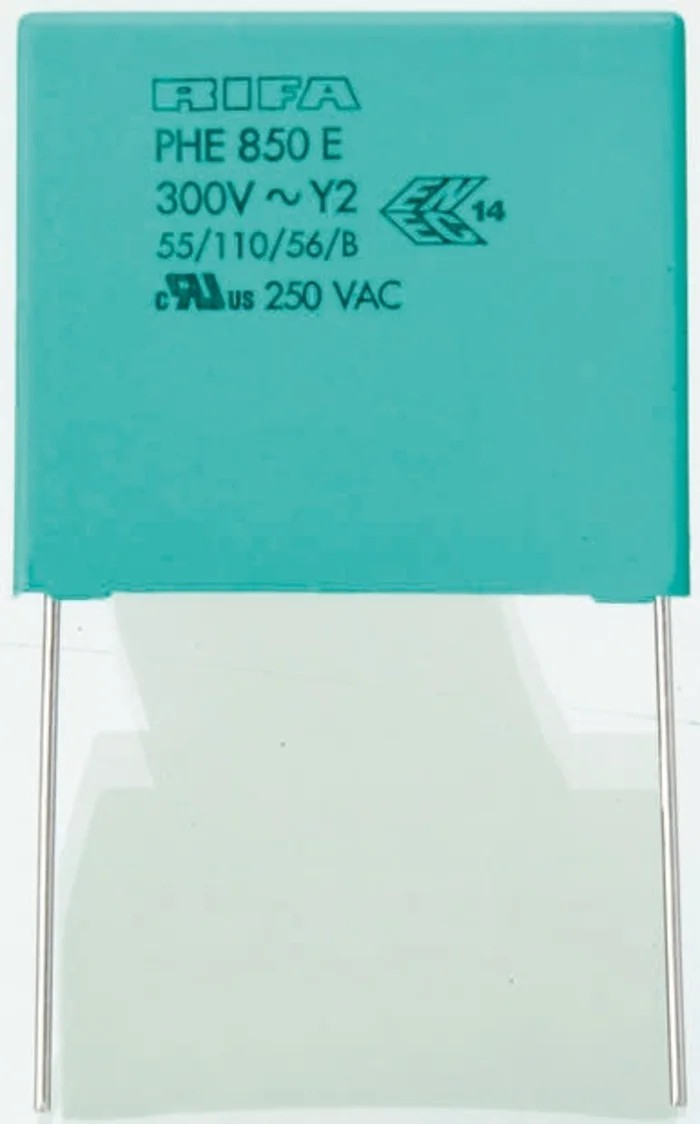

KEMET PHE850 Film Capacitor Y2, ±20% Tolerance, 470 nF Capacitance, 1.25 kV DC, 300V AC Through Hole Mount PHE850

Free Delivery in India | Lowest Global Shipping Charges

KEMET PHE850 Film Capacitor Y2, ±20% Tolerance, 470 nF Capacitance, 1.25 kV DC, 300V AC Through Hole Mount PHE850

Name: KEMET PHE850 Film Capacitor Y2, ±20% Tolerance, 470 nF Capacitance, 1.25 kV DC, 300V AC Through Hole Mount PHE850
Brand: KEMET
SKU: 342589
Price: 1.76 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	India
Brand	KEMET
Height	28mm
Length	31.5mm
Model	PHE850
Width	17.5mm
Mount Type	Through Hole
Series	PHE850
Maximum Operating Temperature	110°C
Tolerance	±20 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Terminal type	Radial
Dissipation Factor	0.3%
Lead Length	6mm
Standards/Approvals	RoHS
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	1.25kV dc
Lead Pitch	27.5mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

Constructed with metallised polypropylene film ensuring high reliability.
Encapsulated in self-extinguishing material meeting UL 94V-0 standards.
Designed for EMI suppression in Y2 (line-to-earth) applications.
Compact dimensions with low profile and radial terminal type.
Operational temperature ranges from -55°C to 110°C.
Lead pitch of 27.5 mm and lead length of 6 mm ensures secure mounting.
Capacitor pin count is 2 with lead diameter of 0.8 mm.
Complies with RoHS environmental standards.

Product Description

KEMET PHE850 Film Capacitor Y2 Model features a 470 nF capacitance with ±20% tolerance, rated at 1.25 kV DC and 300V AC. This through hole mounted capacitor offers enhanced EMI suppression and is built with metallised polypropylene film encapsulated in a UL 94V-0 compliant, self-extinguishing housing.

Its compact size with dimensions of 31.5 mm length, 17.5 mm width, and 28 mm height allows for versatile installation in various electronic circuits. The radial terminal type with a lead pitch of 27.5 mm and lead length of 6 mm provides reliable electrical connections.

Designed for use in Y2 safety class line-to-earth applications, this capacitor withstands operating temperatures from -55°C up to 110°C, making it suitable for industrial, laboratory, and commercial electronic component designs requiring compliance with RoHS standards.

The capacitor features a low dissipation factor of 0.3%, ensuring minimal power loss, while its construction ensures it meets EMI suppression requirements effectively. It consists of 2 pins with lead diameters of 0.8 mm for secure mounting in through hole applications.

Metallised polypropylene film construction. Self-extinguishing encapsulation meeting UL 94V-0. Supplies EMI suppression in Y2 safety class applications. Designed for series connection with the mains supply, not for direct exposure to electric shock risk.

Compliant with RoHS environmental directives for safe use. Ideal for electronics manufacturing, industrial control, and power supply modules. Radial terminal type provides stable and secure mounting. Compact and robust design supports long-term reliability.

Operational over a broad temperature range to ensure versatility. Supports electrical interference mitigation in sensitive circuits.

This capacitor is suitable for electronic component assemblies in industrial automation, power supply smoothing, and EMI noise reduction scenarios. Use the KEMET PHE850 for dependable performance in demanding electrical environments.
