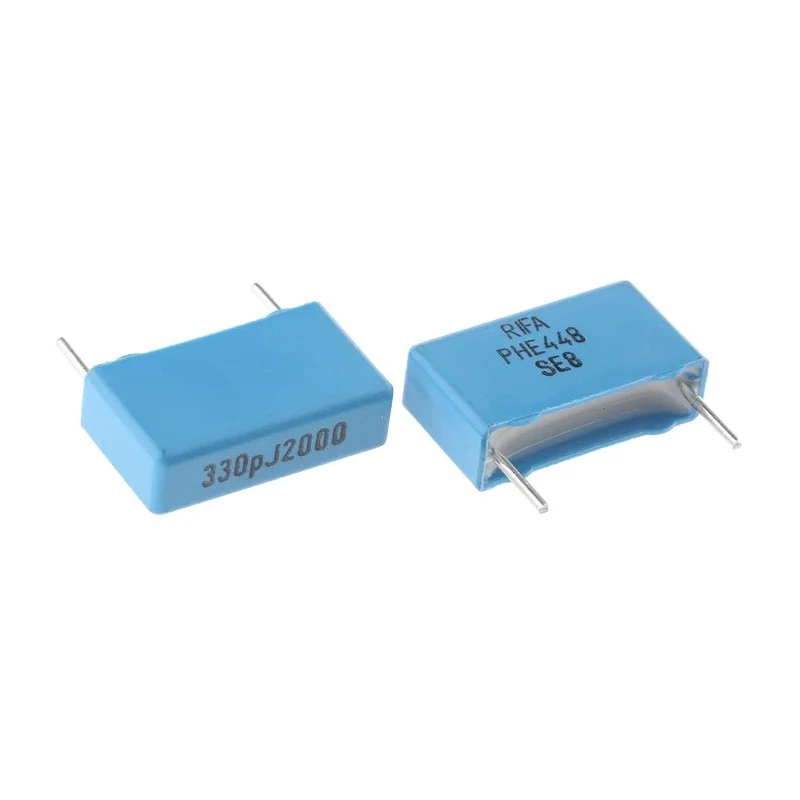

KEMET Film Capacitor, ±5 % Tolerance, 330 pF Capacitance, 2 kV DC, 700 V AC, Through Hole Mount, PHE448

KEMET PHE448 Film Capacitor, model PHE448, is a precision polypropylene film capacitor with capacitance of 330 pF and tolerance of ±5 %. It is rated for high voltage operation at 2 kV DC and 700 V AC, making it suitable for demanding electronic applications. This capacitor is designed for through hole mounting, featuring radial terminals with a 15 mm lead pitch and 6 mm lead length, ideal for PCB insertion.

Constructed using self-extinguishing UL94V-0 encapsulation material, the capacitor provides enhanced safety and durability in electrical circuits. It supports high frequency and pulse applications, including snubber and pulse circuits, thanks to its low dissipation factor of 0.001 % and robust operational temperature range of -55°C to 105°C. The device is manufactured in Finland and meets industrial quality standards, although it carries no specific certifications.

Mechanically, the capacitor measures 18 mm in length, 10.5 mm in height, and 5.5 mm in width, with a radial lead terminal diameter of 0.8 mm, ensuring compatibility with standard PCB holes. The device is typically supplied in tape & reel packaging optimizing automated assembly line efficiency.

Precision 330 pF capacitance with ±5 % tolerance for reliable performance. Rated DC voltage of 2 kV and AC voltage of 700 V allows use in high voltage circuits. Polypropylene film construction suitable for high-frequency, high-voltage applications.

Encapsulated in self-extinguishing UL94V-0 material for enhanced safety. Radial through hole mounting with 15 mm lead pitch and 6 mm lead length. Wide operating temperature range from -55°C to 105°C for versatile conditions.

Low dissipation factor of 0.001 % reduces energy loss. Compact dimensions facilitate PCB space management. Supplied in tape & reel packaging for automated assembly efficiency.

This KEMET film capacitor is ideal for industrial electronics, power supplies, signal filtering, snubber circuits, and pulse applications in manufacturing and electronic design. It delivers dependable performance in laboratory, industrial, and commercial environments where high voltage and frequency stability are required.
