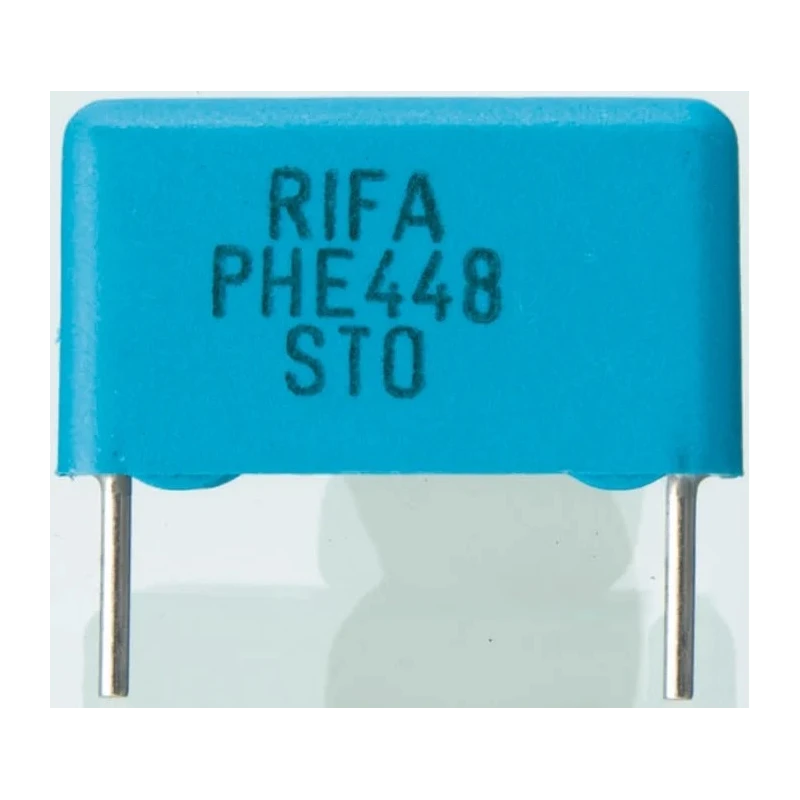

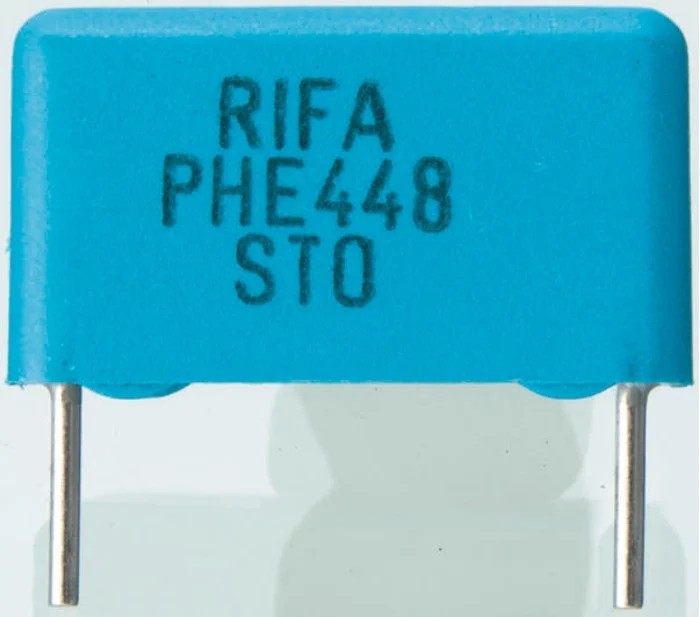

KEMET PHE448 Film Capacitor ±5% 100pF 2kV DC 700V AC Through Hole Radial Lead
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 10.5mm |
| Length | 18mm |
| Model | PHE448 |
| Packaging | Tape & Reel |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | PHE448 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 100pF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.001% |
| Lead Length | 6mm |
| Pin Count | 2 |
| Rated AC Voltage | 700V ac |
| Rated DC Voltage | 2kV dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
Key Features
- Encapsulated in self-extinguishing material meeting UL94V-0.
- Suitable for high frequency and high voltage pulse applications.
- Radial lead with 15mm pitch and 6mm lead length.
- Operates at temperatures from -55°C to 105°C.
- Low dissipation factor of 0.001% for efficient performance.
- Non-automotive standard, ideal for industrial electronic circuits.
- Pin diameter of 0.8mm ensures robust mounting.
Product Description
KEMET PHE448 Film Capacitor PHE448SB3100JR06 is a precision polypropylene film capacitor designed for demanding electronic applications requiring high voltage and high frequency capability. This capacitor features a capacitance of 100pF with a ±5% tolerance, enabling reliable performance in pulse and snubber circuits.
It is rated for a DC voltage of 2kV and an AC voltage of 700V, suitable for high voltage electronic designs. The through-hole mount type with radial lead terminals ensures strong mechanical stability and ease of installation on printed circuit boards with a standard 15mm lead pitch.
The capacitor is encapsulated in a UL94V-0 rated self-extinguishing material, enhancing safety and durability under electrical stress. It operates reliably in a temperature range from -55°C to 105°C, making it suitable for various industrial and commercial applications. The low dissipation factor of 0.001% reduces energy loss, improving circuit efficiency.
Compact in size, the capacitor measures 18mm in length, 10.5mm in height, and 5.5mm in width, with a lead diameter of 0.8mm for secure mounting. This product is ideal for applications such as snubber circuits and pulse handling in industrial, laboratory, and manufacturing environments.
Encapsulated in self-extinguishing UL94V-0 material for enhanced safety. High frequency and high voltage pulse application compatibility. Precision capacitance with ±5% tolerance for accuracy. Radial lead through-hole mounting with 15mm pitch.
Wide operating temperature range from -55°C to 105°C. Low dissipation factor ensures efficient energy performance. Compact form factor suitable for dense PCB layouts. Robust terminal design with 0.8mm pin diameter.
Used widely in electronic circuit design, this capacitor supports industrial automation, power electronics, telecommunications, and instrumentation applications. Its combination of electrical robustness and mechanical stability makes it essential for reliable circuit performance in harsh environments.
Explore the wide range of Film Capacitors and electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100pF with a tolerance of ±5%.
It is rated for a DC voltage of 2kV and an AC voltage of 700V.
This unit operates reliably within a temperature range of -55°C to 105°C.
The lead pitch is 15mm, and the lead length is 6mm, suitable for through-hole mounting.
It has a low dissipation factor of 0.001%, which helps improve circuit efficiency.
The capacitor measures 18mm in length, 10.5mm in height, and 5.5mm in width.
This model features a through-hole mount type with radial lead terminals.
It is encapsulated in a self-extinguishing material that meets UL94V-0 standards for enhanced safety.
This capacitor is suitable for high frequency and high voltage pulse applications, such as snubber circuits and industrial electronic circuits.
The pin diameter is 0.8mm, ensuring robust mounting on printed circuit boards.
The KEMET PHE448 is packaged in Tape & Reel format.
This model belongs to the PHE448 series of film capacitors.
