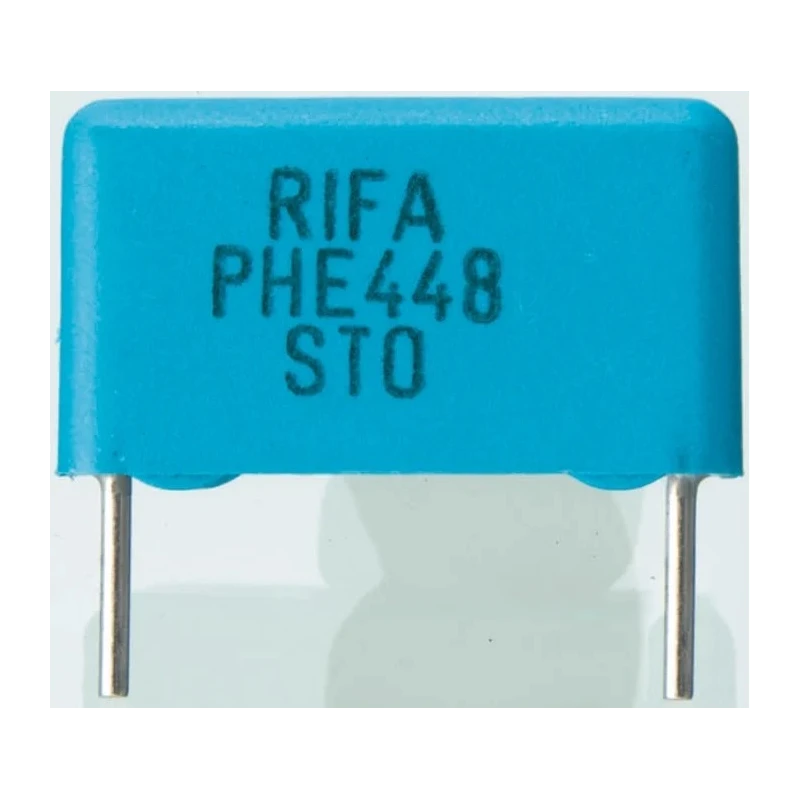

KEMET Film Capacitor 10 nF ±5% 1.6 kV DC 700 V AC Through Hole Radial Lead PHE448

KEMET PHE448 film capacitor model PHE448RB5100JR06 features a capacitance of 10 nF with ±5% tolerance, suitable for high voltage and high frequency applications. It operates at a DC voltage rating of 1.6 kV and an AC voltage rating of 700 V, ensuring reliable performance in demanding electronic circuits.

This capacitor employs polypropylene film technology encapsulated in a UL94V-0 self-extinguishing material that enhances safety. Its through hole radial lead mounting with a 15 mm lead pitch and 6 mm lead length facilitates straightforward PCB assembly.

With an operational temperature range from -55°C to 105°C, the capacitor is engineered to withstand harsh industrial and commercial environments. The dissipation factor of just 0.001% ensures minimal energy loss, providing efficient circuit operation.

The physical dimensions are 16 mm height, 18 mm length, and 8.5 mm width with a lead diameter of 0.8 mm, balancing compact form factor with electrical performance. It is RoHS compliant and manufactured in Finland, reflecting adherence to international quality and environmental standards.

This film capacitor belongs to the PHE448 series, recognized for pulse and snubber circuit suitability, commonly used in power electronics, industrial manufacturing equipment, and high frequency electronic assemblies.

Capacitance of 10 nanofarads with ±5% tolerance. Rated at 1.6 kV DC and 700 V AC voltage. Through hole radial lead mount with 15 mm lead pitch. Temperature rating from -55°C up to 105°C. Encapsulated in UL94V-0 self-extinguishing polypropylene film.

Dissipation factor 0.001% for high efficiency. Compliance with RoHS standards. Dimensions: 16x18x8.5 mm (H×L×W). Lead diameter 0.8 mm and lead length 6 mm. Manufactured in Finland.

Suitable for industrial, laboratory, power electronics, and high frequency applications. This component enhances design reliability for pulse and snubber circuits. Explore EnvMart’s comprehensive range of Film Capacitors for electronics manufacturing and assembly solutions.
