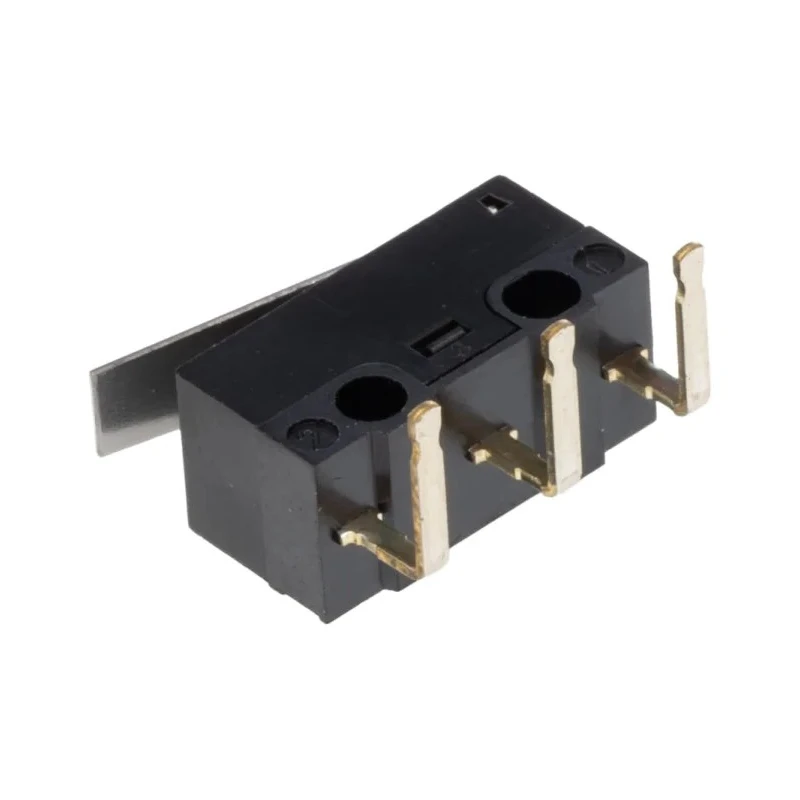

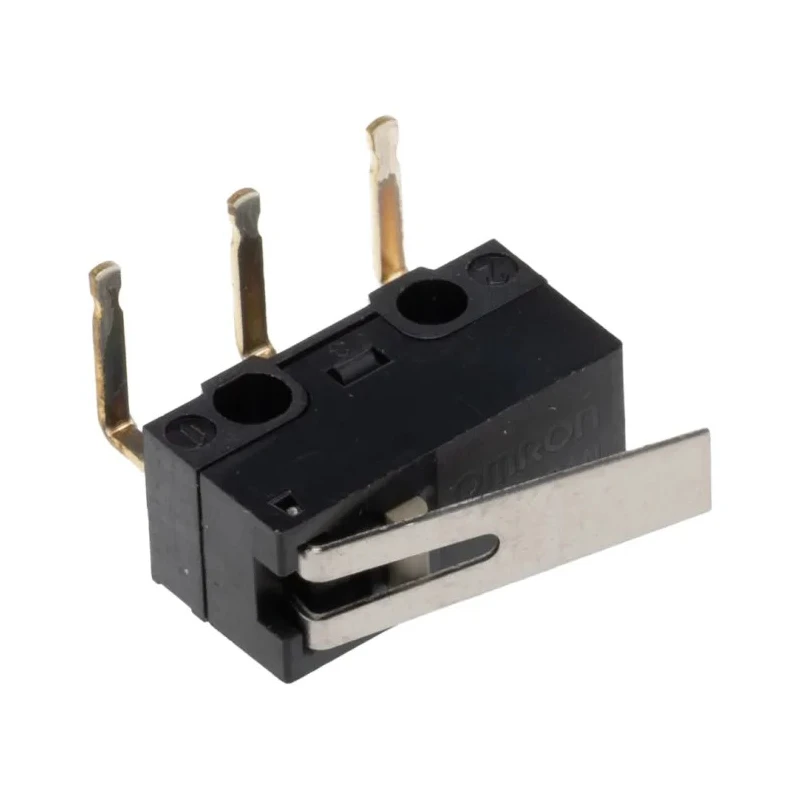

Omron Ultra Subminiature Hinge Lever Micro Switch, SPDT, 100mA, 30V dc, Right Angle PCB Terminal, IP40 D2F-01L-A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01L-A |
| IP Rating | IP40 |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Right Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.78N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- The switch features a SPDT contact configuration supporting a current rating of 100mA at 30V dc.
- Actuator type is a hinge lever suitable for precise mechanical control.
- Operating force is 0.78 Newton ensuring reliable actuation.
- The microswitch is rated for a mechanical life of one million operations for long-term durability.
- Operating temperature range is -25°C to 65°C, supporting various environmental conditions.
- The switch is RoHS compliant and made in Japan for quality assurance.
- Right angle PCB terminals provide secure and easy board mounting installation.
- Ideal for use in household appliances, office machines, telecommunications, and audio equipment.
Product Description
The Omron D2F-01L-A ultra subminiature hinge lever micro switch is engineered for precise switching applications on printed circuit boards. Featuring a right angle PCB terminal, it facilitates space-saving and reliable electrical connections with an IP40 ingress protection rating.
This microswitch carries a SPDT contact configuration rated for 100mA current at 30V dc, making it suitable for low power control circuits. With a hinge lever actuator, it offers sensitive mechanical responsiveness with an operating force of 0.78N.
Constructed for durability, the switch features a mechanical life expectancy of 1,000,000 operations, supported by a design including two highly precise split springs. The terminals are insertion moulded to prevent flux penetration during soldering, enhancing reliability in manufacturing processes.
Operating temperature ranges from -25°C to 65°C allow use in various industrial, commercial, and consumer environments. The product complies with RoHS environmental standards and is manufactured in Japan, assuring quality and compliance.
This micro switch is ideal for applications in household appliances, office machines, telecommunications devices, and audio equipment, offering dependable switching performance in compact spaces.
The switch features a SPDT contact configuration supporting a current rating of 100mA at 30V dc. Actuator type is a hinge lever suitable for precise mechanical control. Operating force is 0.78 Newton ensuring reliable actuation.
The microswitch is rated for a mechanical life of one million operations for long-term durability. Operating temperature range is -25°C to 65°C, supporting various environmental conditions. The switch is RoHS compliant and made in Japan for quality assurance.
Right angle PCB terminals provide secure and easy board mounting installation. Ideal for use in household appliances, office machines, telecommunications, and audio equipment. Explore more in the Electronics & Electricals category on EnvMart for a comprehensive range of high-quality Micro Switches and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a Single Pole Double Throw (SPDT) contact configuration.
It is rated for a maximum current of 100mA at a voltage of 30V DC.
The operating force required for actuation is 0.78 Newtons.
The switch has a mechanical life expectancy of one million operations.
It operates within a temperature range of -25°C to 65°C.
This model uses a hinge lever actuator for precise mechanical control.
It features right angle PCB terminals for secure and easy board mounting installation.
Yes, it is RoHS compliant, ensuring it meets environmental standards.
The switch has an IP40 ingress protection rating.
It is manufactured in Japan, assuring quality and compliance.
It is suitable for applications in household appliances, office machines, telecommunications, and audio equipment.
The length of this micro switch is 12.8mm.
