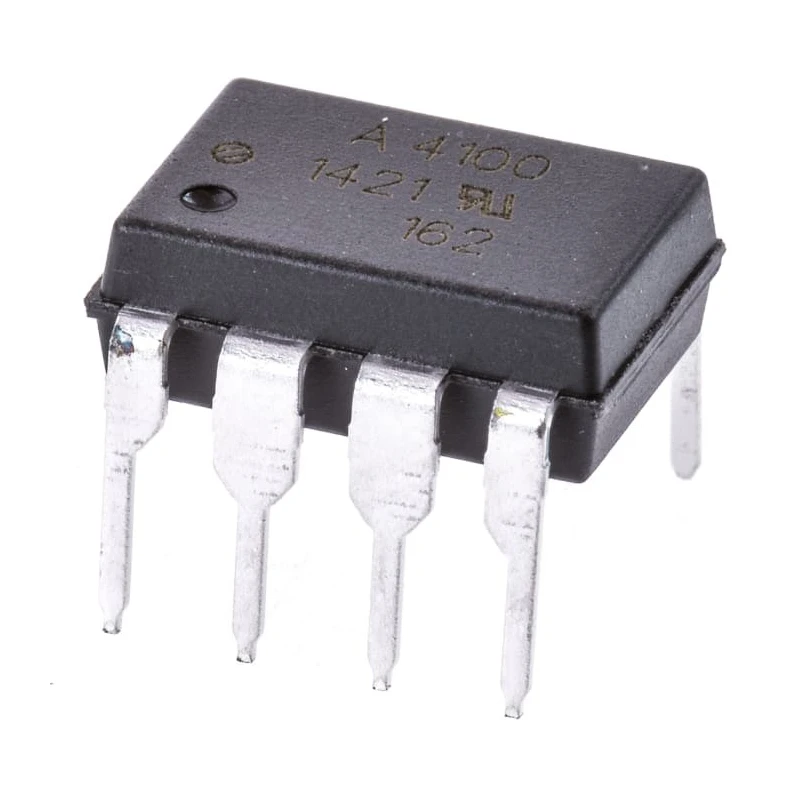

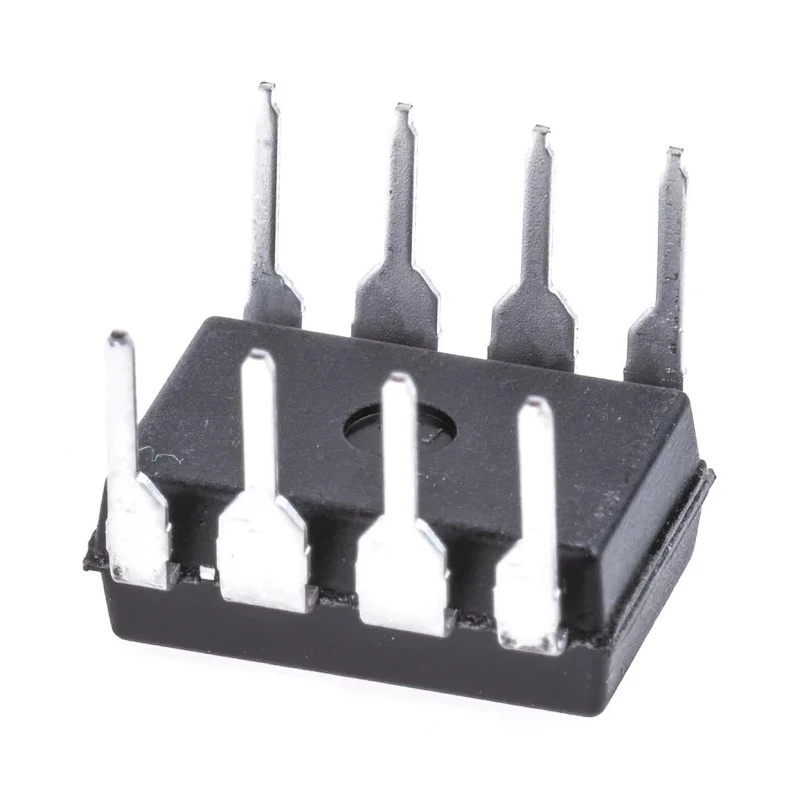

Broadcom DC Input Transistor Output Optocoupler Through Hole 8-Pin DIP HCPL-4100-000E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-4100-000E |
| Mount Type | Through Hole |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 250μA |
| Standards/Approvals | CSA, UL 1577 |
| Maximum Forward Voltage | 20V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Typical Rise Time | 16ns |
| Typical Fall Time | 23ns |
| Isolation Voltage | 3750V ac |
Key Features
- Designed for 4mA-to-20mA current-loop communication in industrial environments.
- Provides high noise immunity and supports data line transmission up to 9km.
- Through hole mount type with DIP package ensuring easy PCB integration.
- Maximum forward voltage of 20V and isolation voltage of 3750V ac for safety.
- Operates reliably between -40°C to 85°C for industrial applications.
- Typical rise and fall times of 16ns and 23ns respectively for fast signal response.
- Complies with CSA and UL 1577 standards ensuring quality and safety.
- Logic output with DC input current type supports precise analog sensor data transmission.
Product Description
Broadcom HCPL-4100-000E is a DC input optocoupler featuring a transistor output in a through-hole 8-pin DIP package, designed for industrial electronic systems requiring robust electrical isolation and reliable data transmission.
This optocoupler is specially built for 4mA-to-20mA current-loop communication, widely used in electrically noisy environments to send analog sensor signals over distances up to 9 kilometers, thus improving signal integrity in industrial automation and process control applications.
The device supports a maximum forward voltage of 20V and a maximum input current of 250µA, ensuring minimal power consumption. It provides an isolation voltage of 3750 V AC, which safeguards equipment and operators from high voltage spikes.
With typical rise and fall times of 16ns and 23ns respectively, it enables fast signal switching, suitable for data line transmission with high noise immunity. Its operating temperature range from -40°C to 85°C makes it suitable for harsh industrial conditions.
The item conforms to CSA and UL 1577 safety certifications, which reflect stringent quality and reliability standards. It is not designed for automotive standards. Designed for precise current-loop communication in industrial automation.
Ensures high noise immunity and long-distance signal transmission. Robust through-hole DIP package for straightforward PCB mounting. High isolation voltage for electrical safety and reliability. Wide operating temperature suitable for harsh environments.
Fast switching times ensure quick signal response. Certified by CSA and UL for enhanced safety compliance. DC input current type with logic transistor output for versatile signal interfacing.
This optocoupler is ideal for applications in industrial control systems, manufacturing equipment, and other electronics requiring reliable isolation and accurate analog signal transfer. Explore more products in the Optocoupler category for varied industrial and electronic requirements on EnvMart.
