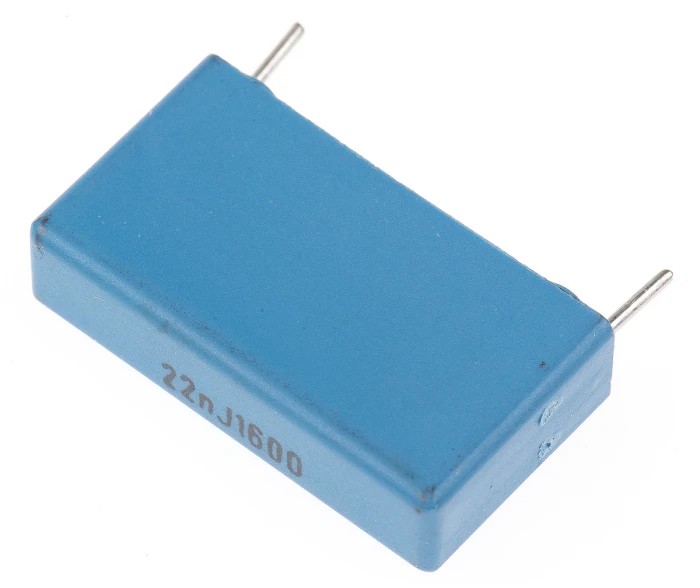

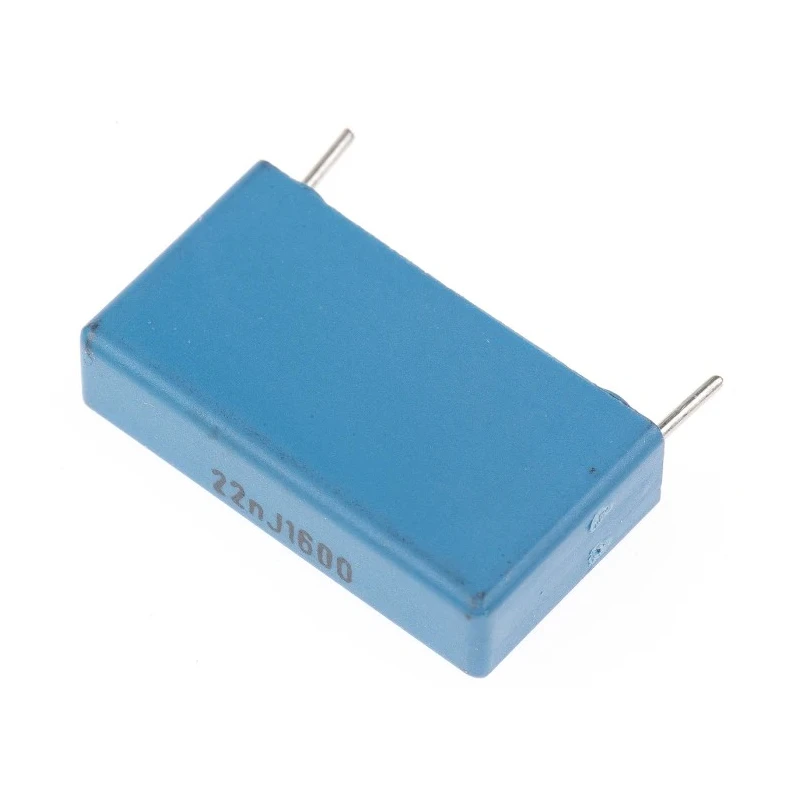

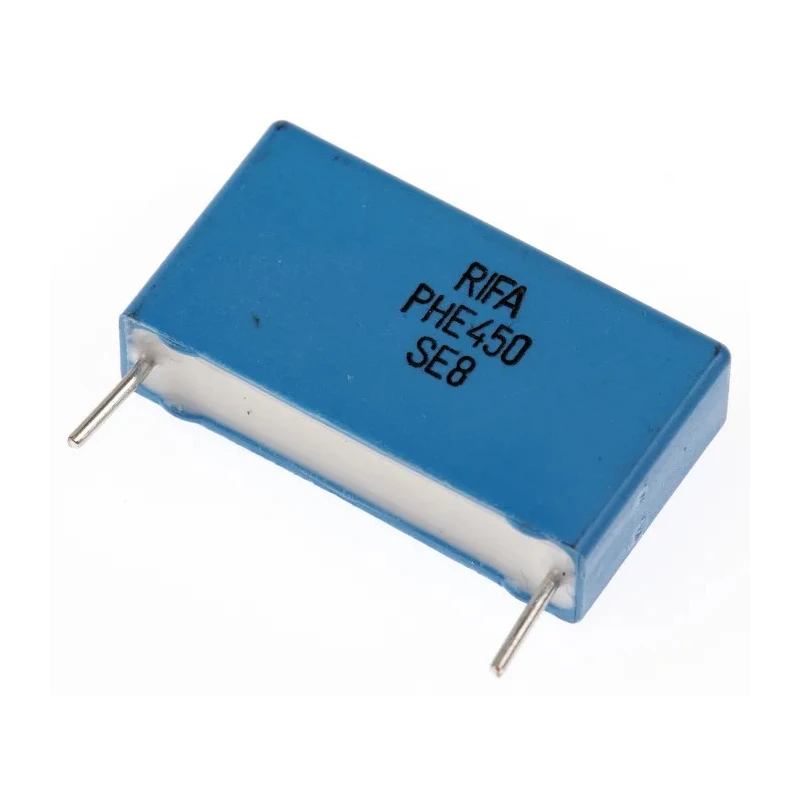

KEMET Film Capacitor Through Hole 22 nF ±5% 1.6 kV DC 180 V AC Radial Lead PHE450

KEMET PHE450 Film Capacitor is a high-quality metallized polypropylene film capacitor model PHE450, engineered for robust electrical performance. It features a capacitance of 22 nF with a tolerance of ±5%, suitable for applications demanding precise capacitance values. Rated at 1.6 kV DC and 180 V AC, this capacitor is designed for usage in environments with high current stress, such as protection circuits in switch mode power supplies and deflection circuits in televisions.

The capacitor uses double metallized polypropylene film encapsulated within a self-extinguishing resin that meets UL 94 V-0 flammability standards, ensuring enhanced safety and durability. It is mounted through-hole with radial leads, having a lead pitch of 22.5 mm, lead length of 6 mm, and lead diameter of 0.8 mm, facilitating straightforward PCB installation.

Operating temperature ranges from -55°C to 105°C, making it suitable for a wide range of industrial and electronic applications. It comes packaged in Tape & Reel format, ideal for automated pick and place manufacturing processes.

Key features include its low dissipation factor of 0.0003%, compact dimensions of 26 mm length, 14.5 mm height, and 6.5 mm width, and compliance with RoHS directives. These capacitors support pulse and snubber designs, providing reliable performance in power electronics and TV circuits.

The KEMET PHE450 series is widely used across industrial electronic components, manufacturing equipment, telecommunications, and consumer electronics industries. This makes it a reliable choice for engineers and designers requiring robust and precise film capacitors.

Double metallized polypropylene film pulse capacitor construction. Rated voltage range from 250 V DC to 3000 V DC with corresponding AC voltage ratings. Leads spaced from 7.5 mm to 37.5 mm among series variants. Encapsulated in self-extinguishing thermoset resin meeting UL 94 V-0.

Compatible with automated PCB assembly due to radial lead configuration and tape & reel packaging. Explore more KEMET Film Capacitor solutions and other electronic components at EnvMart to support your industrial and commercial electronics projects.
