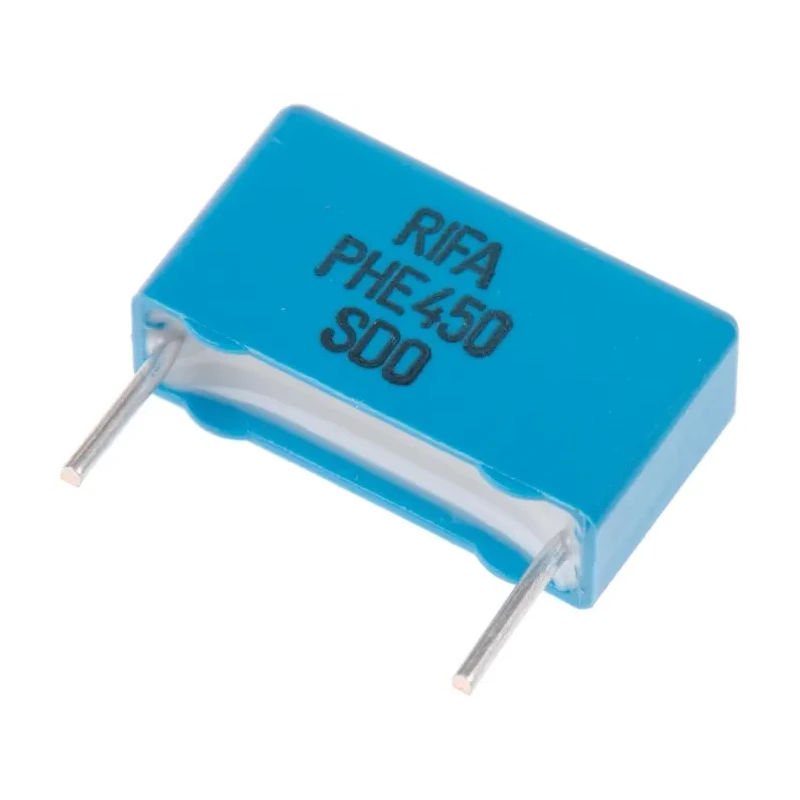

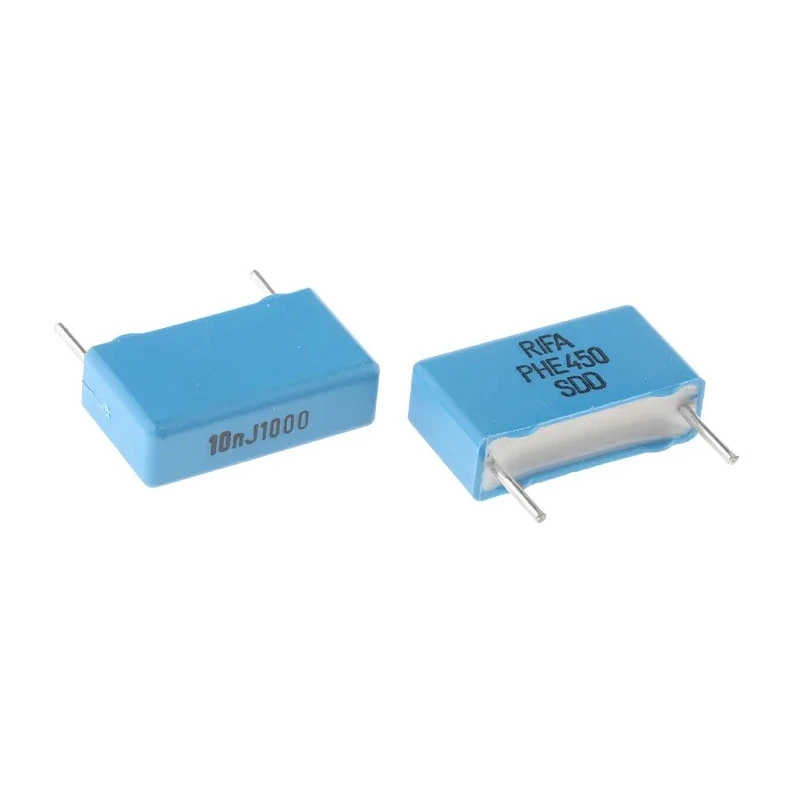

KEMET Film Capacitor 10 nF ±5 % 1 kV DC 180 V AC Through Hole Radial Lead PHE450

KEMET PHE450 Film Capacitor is a high-quality double metallized polypropylene film capacitor tailored for demanding electronic applications requiring stable performance and reliability. The capacitor features a capacitance of 10 nF with a precise tolerance of ±5 %, rated for 1 kV DC voltage and 180 V AC voltage, making it suitable for circuits subjected to both DC and AC stresses.

Encapsulated in a self-extinguishing resin compliant with UL 94 V-0 fire safety standards, this capacitor offers robustness in various industrial environments. It includes a radial lead configuration with a 15 mm lead pitch, 0.8 mm lead diameter, and 6 mm lead length, facilitating through-hole mounting on printed circuit boards.

Its operating temperature range from -55°C to 105°C ensures dependable function in harsh and fluctuating conditions. The component's physical dimensions of 18 mm in length, 5.5 mm in width, and 10.5 mm in height enable compact integration in electronic assemblies.

With a very low dissipation factor of 0.0003 %, the PHE450 capacitor efficiently minimizes energy losses, enhancing circuit efficiency. This product complies with RoHS directives and is manufactured in Finland, reflecting strict quality and environmental standards.

Commonly applied in snubber, pulse, and protection circuits within switch mode power supplies and television deflection circuits, it addresses the needs of industrial electronics, telecommunications, and consumer electronics sectors with high current and voltage demands.

Double metallized polypropylene film construction for enhanced durability. Encapsulation meets UL 94 V-0 for fire resistance. Precision capacitance and voltage ratings for versatile usage. Compliant with RoHS environmental regulations.

Compact dimensions support space-constrained designs. High reliability in pulse and snubber circuit applications. Designed and manufactured in Finland ensuring quality assurance.

This product is available for purchase with tape and reel packaging, optimized for automated manufacturing processes. Explore more Film Capacitors and electronic components in the Electronics & Electricals category on EnvMart.
