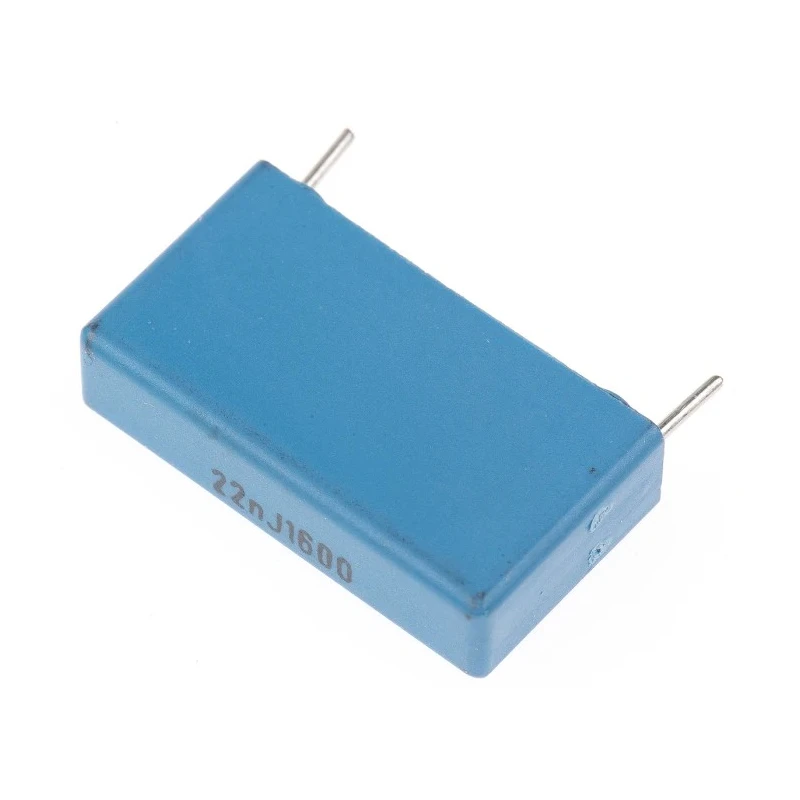

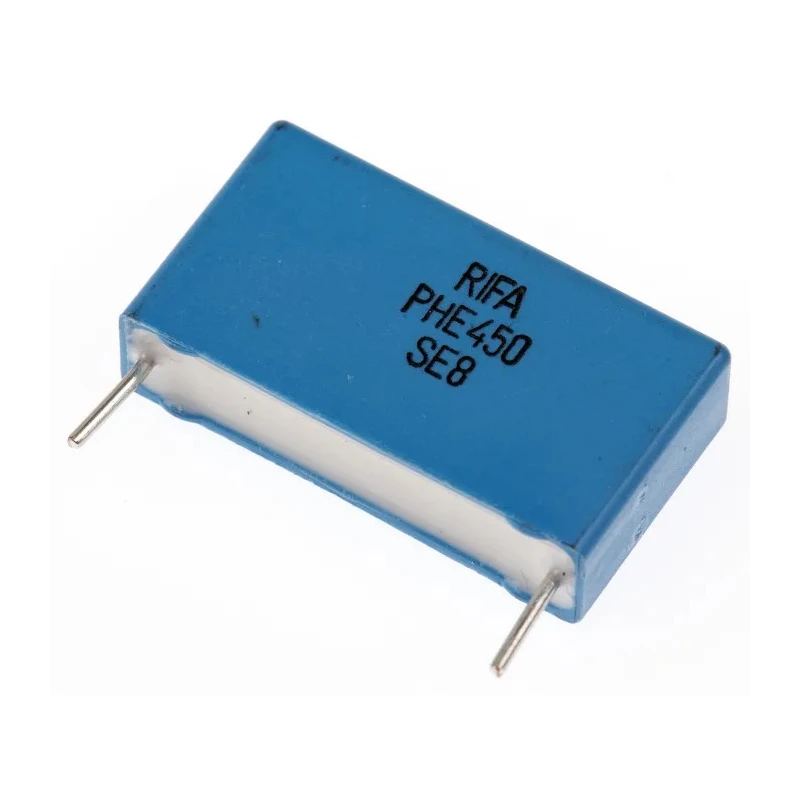

KEMET PHE450 Film Capacitor, 22 nF, ±5 % Tolerance, 1.6 kV DC 180V AC Rated Through Hole Radial Lead

KEMET PHE450 Film Capacitor, model PHE450, offers 22 nF capacitance with ±5 % tolerance, rated at 1.6 kV DC and 180V AC for reliable electronic circuit protection in pulse and snubber applications.

This film capacitor is manufactured using double metallized polypropylene film technology encapsulated in a high-quality, self-extinguishing resin housing that meets UL 94 V-0 requirements, ensuring safety and durability under high current stresses.

The through hole mount type with radial leads and a pitch of 22.5 mm facilitates robust mechanical and electrical connections, ideal for insertion into printed circuit boards.

Operating from a minimum temperature of -55°C up to a maximum of 105°C, this capacitor suits a broad range of industrial, consumer electronics, power supply, and television deflection circuit applications.

Lead length of 6 mm and lead diameter of 0.8 mm support secure soldering and mechanical stability. The device is also RoHS compliant, supporting environmental sustainability. Double metallised polypropylene film pulse capacitor construction ensures high reliability.

Rated voltage range up to 3000 V DC enhances versatility for different voltage requirements. Encapsulation in UL 94 V-0 compliant resin ensures flame retardancy. Precise capacitance tolerance of ±5 % guarantees performance consistency.

Supplied in tape & reel packaging efficient for automated assembly lines. Designed with 2 pins and radial terminals for secure PCB mounting. Operating temperature range from -55°C to 105°C supports diverse environments. Capable of handling high current stress in protection circuits and power supplies.

This KEMET PHE450 Film Capacitor is ideal for industrial manufacturers, electronics assembly, and maintenance professionals seeking high-quality, durable capacitors for their circuit designs. Explore more Film Capacitors on EnvMart for varied capacitance and voltage ratings.
