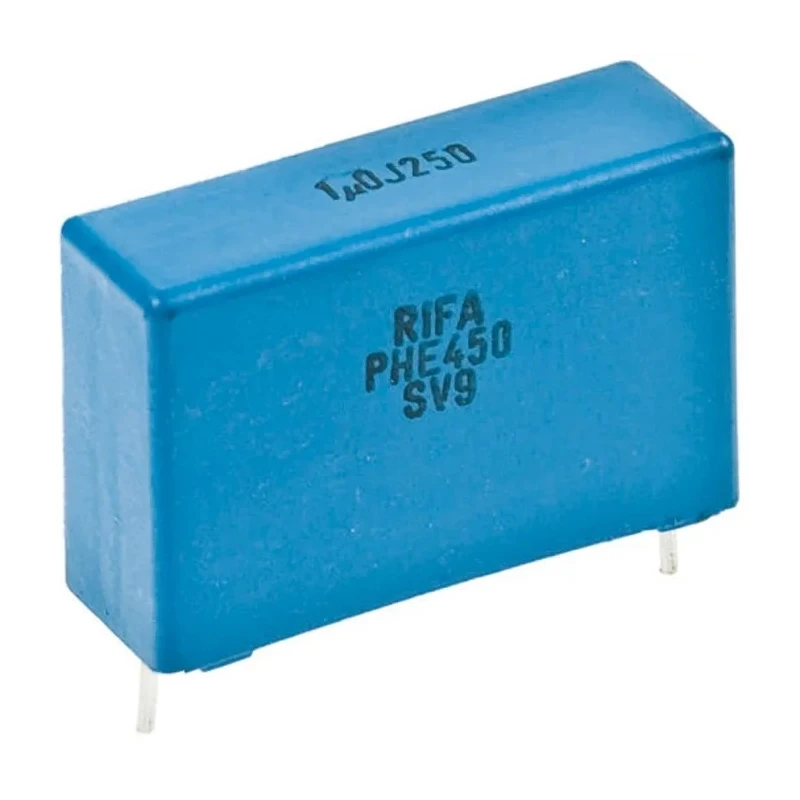

KEMET PHE450 Film Capacitor, 10 nF, ±5 % Tolerance, 630 V DC, 180 V AC, Through Hole Mount
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Height | 10.5mm |
| Length | 18mm |
| Model | PHE450 |
| Packaging | Tape & Reel |
| Width | 5.5mm |
| Mount Type | Through Hole |
| Series | PHE450 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±5 % |
| Capacitance | 10nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0003% |
| Rated Voltage | 250 V dc to 3000 V dc |
| Lead Length | 6mm |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 180V ac |
| Rated DC Voltage | 630V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, other tolerances on request |
| Lead Spacing | 7.5 mm to 37.5 mm |
Key Features
- Constructed with double metallized polypropylene film for high pulse stress tolerance.
- Encapsulated in a UL94 V-0 self-extinguishing resin for safety and durability.
- Lead pitch measures 15 mm with radial terminals and 0.8 mm lead diameter.
- Operates in temperature range from -55°C to 105°C for robust performance.
- Ideal for pulse, snubber, and high current stress circuits in power supply and television deflection applications.
- Packaged in tape and reel format for efficient assembly line use.
- Complies with RoHS standards ensuring environmental compliance.
Product Description
The KEMET PHE450 film capacitor, model PHE450MB5100JR06, is a precision passive electronic component designed to deliver reliable performance in demanding industrial and electronic applications. Featuring a capacitance of 10 nF with a ±5 % tolerance, this capacitor is rated for a maximum DC voltage of 630 V and an AC voltage of 180 V, making it suitable for high voltage protection circuits and pulse applications.
Constructed from metallized polypropylene film, the capacitor offers excellent stability and low dissipation factor of 0.0003 %, ensuring minimal energy loss. The device is encapsulated in a UL94 V-0 self-extinguishing resin-compliant box, providing enhanced safety against fire hazards.
This through-hole mounted component comes with radial terminals, a 15 mm lead pitch, and a 0.8 mm lead diameter, designed for ease of assembly on printed circuit boards. The operating temperature range of -55°C to 105°C allows it to perform reliably in harsh environments.
Suitable for pulse circuits, snubber circuits, and applications involving high current stress such as switch mode power supplies and television deflection circuits. The product is supplied in tape and reel packaging, optimized for automated insertion machines, improving manufacturing efficiency.
Double metallized polypropylene film construction provides excellent pulse capability and stability. Encapsulated in self-extinguishing resin meeting UL94V-0 requirements. Rated DC voltage of 630 V and AC voltage of 180 V with ±5 % capacitance tolerance.
Radial lead design with 15 mm pitch for through-hole mounting. Operating temperature range from -55°C to 105°C. Dissipation factor as low as 0.0003 % ensuring energy efficiency. Packaging in tape and reel format for efficient automated assembly.
RoHS compliant for environmental safety standards.
Excellent for industrial electronics, power supplies, and television manufacturing industries, this KEMET PHE450 capacitor provides robust, long-lasting performance. Explore more Film Capacitors and related passive components at EnvMart for your project and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET PHE450 film capacitor has a capacitance value of 10 nF with a tolerance of ±5 %.
This model is rated for a maximum DC voltage of 630 V and an AC voltage of 180 V.
It operates within a temperature range of -55°C to 105°C.
The capacitor features a through-hole mounting design with radial terminals.
The lead pitch measures 15 mm, and the lead diameter is 0.8 mm.
The dissipation factor is as low as 0.0003 %, ensuring minimal energy loss.
It is packaged in tape and reel format, optimized for efficient assembly line use.
This model is ideal for pulse circuits, snubber circuits, and high current stress applications such as power supplies and television deflection circuits.
It complies with RoHS standards, ensuring environmental safety.
The dimensions of the capacitor are 10.5 mm in height, 18 mm in length, and 5.5 mm in width.
This capacitor has a pin count of 2.
The country of origin for this capacitor is India.
