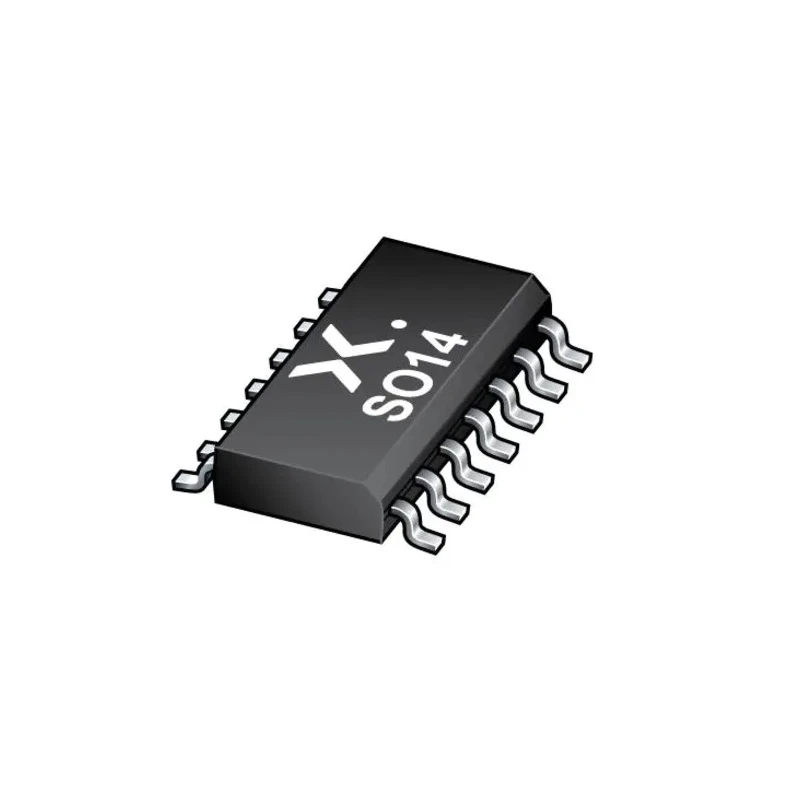

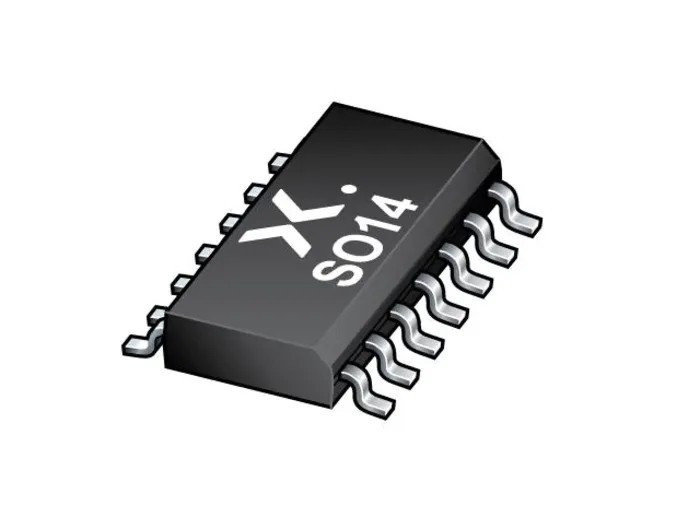

Nexperia Flip Flop IC HC CMOS 14-Pin SO-14 Dual Negative Edge Triggered JK Type 2-6V 74HC73D-Q100J
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | 74HC73D-Q100J |
| Mount Type | Surface |
| Output type | CMOS |
| Series | 74HC73-Q100 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-14 |
| Minimum Operating Temperature | -40°C |
| Polarity | Negative |
| Trigger Type | Negative Edge |
| Standards/Approvals | HBM JESD22-A114F, AEC-Q100 (Grade 1), JEDEC Standards JESD8C (2.7 V to 3.6 V), JESD7A (2.0 V to 6.0 V), MM JESD22-A115-A |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 Grade 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | HC |
| Minimum Supply Voltage | 2V |
| Flip-Flop Type | JK Type |
Key Features
- Operates from a wide supply voltage range of 2V to 6V.
- Features dual negative edge triggered JK flip-flops with individual J, K, clock (nCP), and asynchronous reset (nR) inputs.
- Includes complementary nQ and nQ outputs for versatile applications.
- Minimum operating temperature of -40°C and maximum up to 125°C, supporting harsh conditions.
- Surface mount package type SO-14 with 14 pins suitable for compact PCB designs.
- CMOS logic family ensures low power dissipation and high noise immunity.
- Schmitt-trigger clock input enables tolerance to slower clock rise and fall times.
- Robust latch-up performance exceeding 100 mA per JEDEC standards for reliability.
Product Description
Nexperia 74HC73D-Q100J Flip Flop IC HC CMOS 14-Pin SO-14 is a dual negative edge triggered JK type flip-flop IC designed to perform precise logic operations. This device includes individual inputs for J, K, clock (nCP), and asynchronous reset (nR), enabling versatile control in digital circuits.
The complementary outputs nQ and nQ provide flexible output signaling options. The device is fabricated using CMOS technology, providing low power dissipation and wide operating voltage from 2V to 6V.
It supports a broad temperature range from -40°C to +125°C, making it suitable for automotive and industrial applications.
The input uses a Schmitt-trigger to tolerate slower clock rise and fall times and includes clamp diodes facilitating the use of current limiting resistors for input voltage protection.
This flip-flop IC meets automotive qualification standards AEC-Q100 Grade 1 and complies with JEDEC standards JESD8C, JESD7A, and JESD22 for reliability. Applications include automotive electronics, industrial control systems, digital logic circuits, and embedded systems requiring robust, low power flip-flop solutions.
Operates on a supply voltage range of 2 to 6 V. Surface mount SO-14 package with 14 pins for compact integration. High noise immunity and low power consumption thanks to CMOS technology. Reliable performance over operating temperatures from -40°C to 125°C.
Automotive grade for use in harsh environments and critical systems. Explore more semiconductor devices and flip-flop ICs from Nexperia and enhance your electronic designs with trusted quality and performance on EnvMart.
Explore more products in our Flip Flop ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 2V to 6V.
The maximum operating temperature is 125°C.
It comes in a surface mount package type SO-14 with 14 pins.
This model features a negative edge trigger type.
It has individual inputs for J, K, clock (nCP), and asynchronous reset (nR).
It meets automotive qualification standards AEC-Q100 Grade 1 and complies with several JEDEC standards.
The minimum operating temperature is -40°C.
It belongs to the HC logic family, which ensures low power dissipation.
It includes complementary nQ and nQ outputs for versatile applications.
It is suitable for automotive electronics, industrial control systems, and digital logic circuits.
The inputs have a negative polarity.
The clock input utilizes a Schmitt-trigger design to tolerate slower clock rise and fall times.
