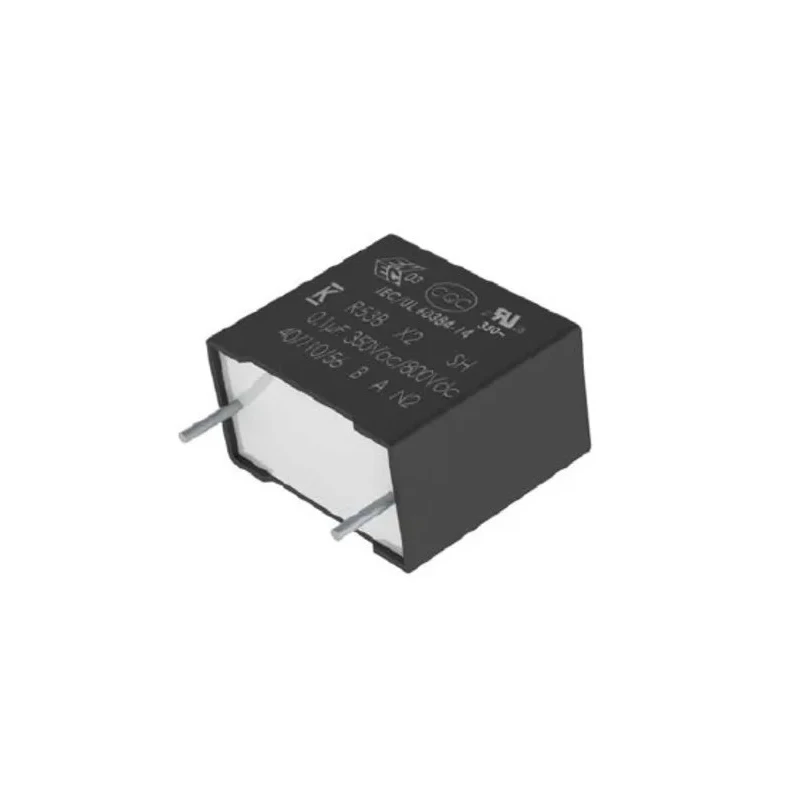

KEMET R53B Film Capacitor 680 nF ±10 % 800 V dc 350 V ac Through Hole R53BN36805000K

KEMET R53BN36805000K is a high-quality film capacitor designed for demanding electrical and automotive applications. This capacitor features a capacitance of 680 nF with ±10% tolerance, rated at 800 V dc and 350 V ac, making it suitable for high-voltage and high-reliability circuits requiring through hole mounting.

The capacitor utilizes metallized polypropylene film encapsulated with self-extinguishing resin compliant with UL 94 V - 0, ensuring excellent safety against fire hazards in electronic systems. Its robust construction allows operation in extreme temperature conditions from −40°C to +125°C, fulfilling stringent automotive electrical standards such as AEC-Q200.

With a 22.5 mm lead pitch and plastic package case, this component is fit for integration into standard PCB layouts using through hole technology. Its rated AC voltage is 350 V and DC voltage is 800 V, with 0.3% dissipation factor enabling efficient performance with minimal energy loss. The capacitor also meets IEC 60384-14 approval, classified as X2 grade, confirming compliance with international safety and quality standards.

The product undergoes 100% automated factory screening tested at 1900 VDC, ensuring reliability and consistent performance. Its self-healing properties enhance durability under electrical stress. Dimensionally, the capacitor is 26.5 mm long, 11 mm wide, and 20 mm high, compact for space-conscious electronic assemblies.

Constructed of metallized polypropylene film for stable electrical characteristics. Encapsulated in a flame-retardant plastic case providing UL 94 V - 0 compliance. Qualified to automotive AEC-Q200, suitable for harsh automotive environments.

Temperature range from −40°C to +125°C for diverse applications. Lead pitch of 22.5 mm, ideal for through hole PCB mounting. 100% screening factory test at 1900 VDC for enhanced reliability. Meets IEC 60384-14 standard and classified as X2 safety class.

Self-healing capabilities promote longevity and stability. Tape and reel packaging for automated manufacturing efficiency. Compact dimensions: 26.5 mm (L) × 11 mm (W) × 20 mm (H).

This Film Capacitor is ideal for industrial, automotive, power supply, and electronic control applications where durability, safety, and performance are paramount. Its compliance with multiple standards makes it suitable for laboratories, manufacturing facilities, HVAC systems, and automotive electronics circuits.
