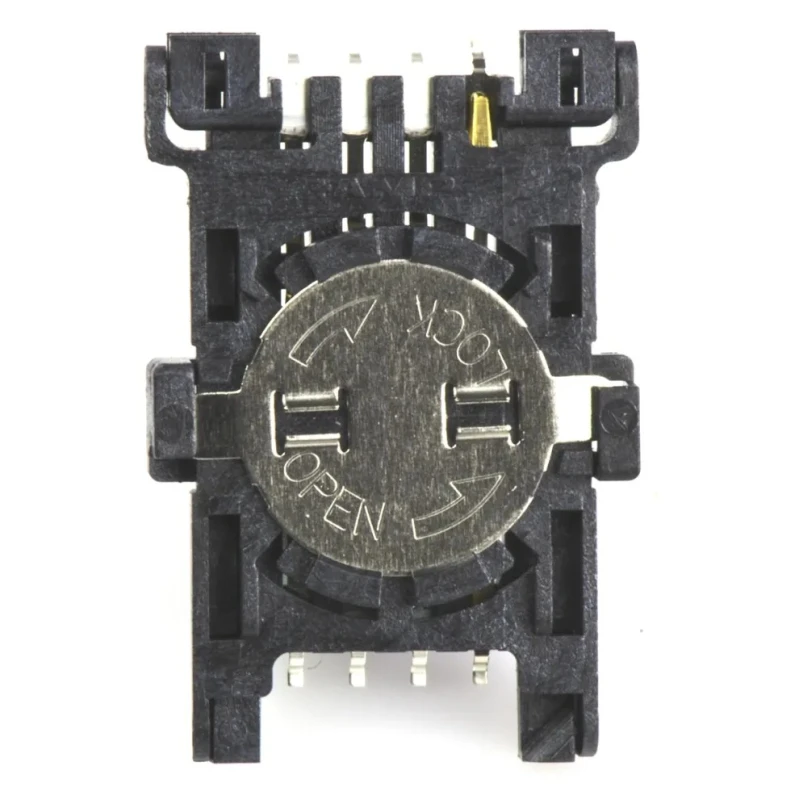

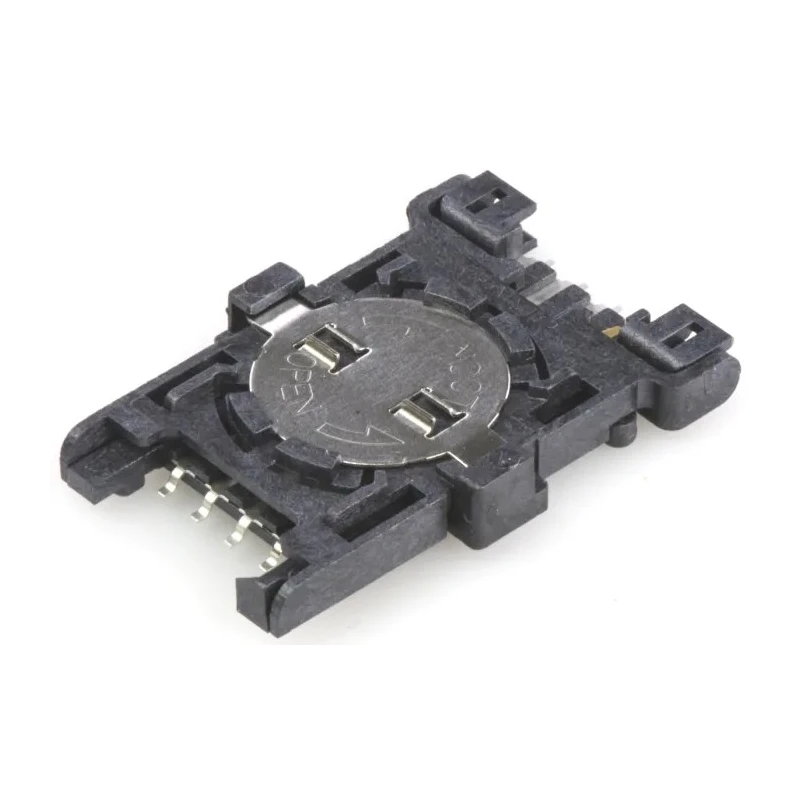

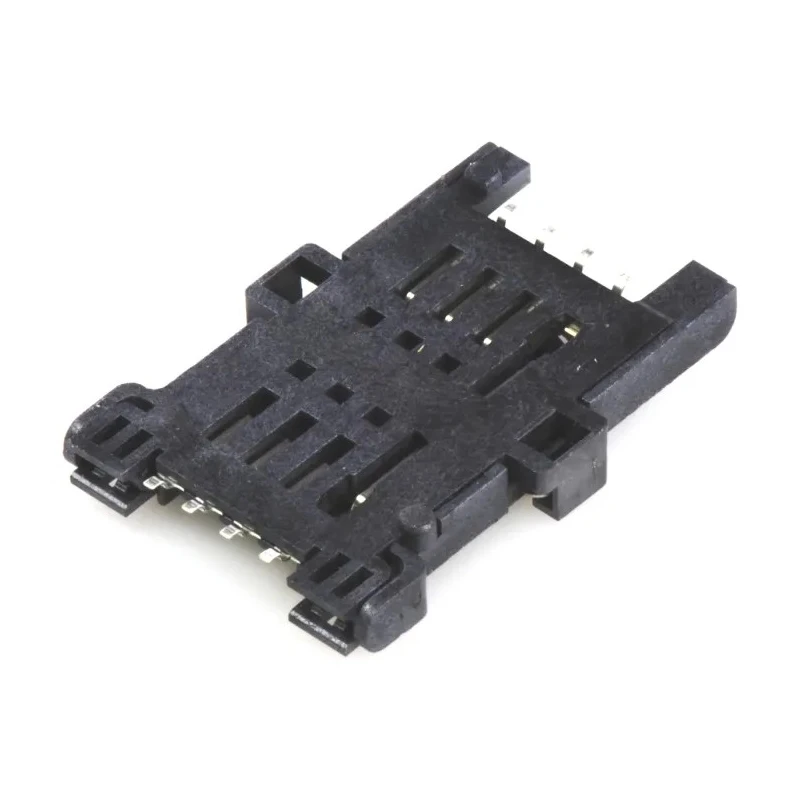

TE Connectivity 6 Way SIM, SAM Memory Card Connector, Solder Termination 5145299-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Termination Type | Solder |
| Maximum Operating Temperature | 90°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Card Type | SIM, SAM |
| Mini SmartCard 6-pin holder SMTBrand | C & K |
| ITT Cannon 6 Way SAM, SIM SIM Card Connector With Solder TerminationBrand | ITT Cannon |
| Amphenol 6 Way SAM, SIM SIM Card Connector With Solder TerminationBrand | Amphenol |
Key Features
- The connector features 6 contacts arranged in 2 rows with a 2.54mm pitch.
- It has phosphor bronze contacts plated with gold over nickel for reliable connectivity.
- The housing is made of high temperature thermoplastic to withstand up to 90°C operating temperature.
- Designed with a straight orientation and a stainless steel twist-lock locking disk for secure card retention.
- Suitable for SMT mounting in electronic devices requiring memory card interfacing.
- Operating temperature range from -40°C to 90°C ensures durability in varied environments.
- The connector meets ISO7816-7813 standards for IC card interfaces.
Product Description
TE Connectivity 5145299-1 6 Way SIM, SAM Memory Card Connector is a high-quality male Memory Card Connector designed for SMT solder mounting. It features 6 phosphor bronze contacts plated with gold over nickel, providing excellent conductivity and resistance against corrosion. The connector's housing is composed of durable high temperature thermoplastic material, rated for a maximum operating temperature of 90°C, making it suitable for various industrial and electronic applications involving SIM and SAM cards.
This connector supports GSM 11.11 SIM cards with a twist-lock stainless steel locking disk mechanism that securely holds the card in place while providing ease of use. With a contact pitch of 2.54mm arranged in 2 rows and a straight orientation, it fits compact PCB layouts without compromising reliability.
Its design aligns with ISO7816-7813 standards for smart card interfaces, making it ideal for communication, security, and embedded applications requiring secure memory card interfacing. The connector's specifications allow use across industrial control systems, telecommunications equipment, and embedded computing modules.
The connector includes solder termination suitable for SMT PCB assembly processes. Phosphor bronze contacts ensure mechanical strength and electrical integrity. Gold over nickel plating on contacts enhances durability and signal quality.
Operating temperature range from -40°C to 90°C supports broad environmental conditions. Stainless steel locking disk provides a reliable card retention mechanism.
This TE Connectivity smart card connector is designed to meet the demands of industrial, laboratory, and commercial applications requiring robust and standard-compliant SIM and SAM card connections. It facilitates easy integration into modern electronic designs while maintaining conformity with established card interface standards.
Explore the wide selection of connectors and electronic components available at EnvMart to find the best fit for your technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 90°C.
It is designed to support SIM and SAM cards.
This model features 6 contacts arranged in 2 rows.
The contact pitch is 2.54mm.
The housing is made of high temperature thermoplastic, while the contacts are made of phosphor bronze plated with gold over nickel.
The connector has a straight orientation.
It uses solder termination suitable for SMT PCB assembly processes.
The minimum operating temperature is -40°C.
Yes, it features a stainless steel twist-lock locking disk for secure card retention.
Yes, it meets ISO7816-7813 standards for IC card interfaces.
The connector is male gendered.
The country of origin for this connector is India.
