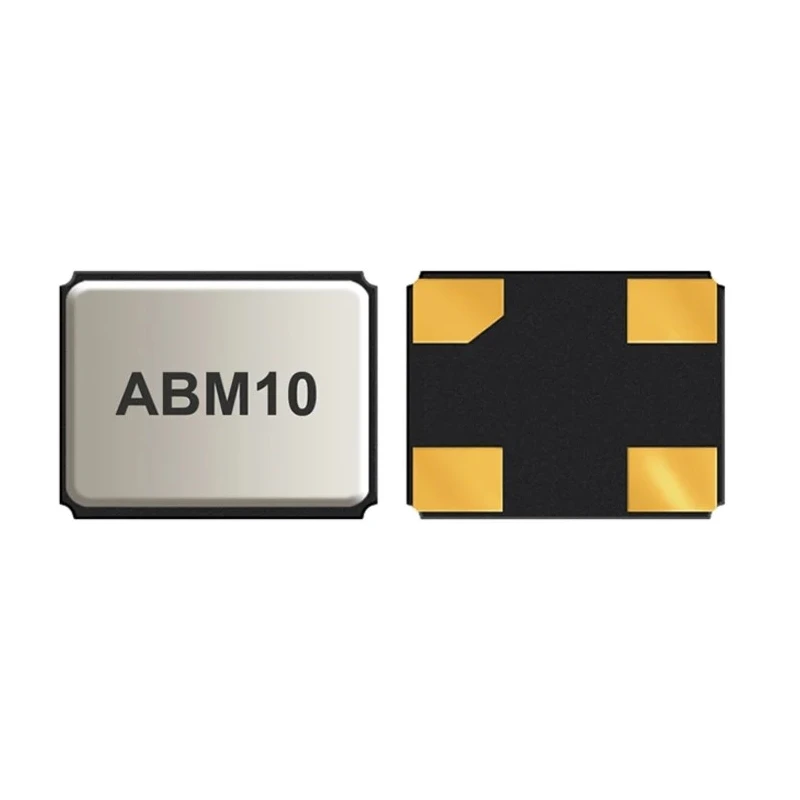

Abracon 19.2 MHz Crystal ±20 ppm Surface Mount 4-Pin 2.5 x 2.0 x 0.5mm ABM10-19.200MHZ-D30-T3

Free Delivery in India | Lowest Global Shipping Charges

Abracon 19.2 MHz Crystal ±20 ppm Surface Mount 4-Pin 2.5 x 2.0 x 0.5mm ABM10-19.200MHZ-D30-T3

Name: Abracon 19.2 MHz Crystal ±20 ppm Surface Mount 4-Pin 2.5 x 2.0 x 0.5mm ABM10-19.200MHZ-D30-T3
Brand: Abracon
SKU: 341032
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.5mm
Length	2.5mm
Model	ABM10-19.200MHZ-D30-T3
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ABM10
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	19.2MHz
Load Capacitance	10pF
Series Resistance	150Ω

Key Features

The crystal operates at a standard frequency of 19.2 MHz.
It has a load capacitance of 10 pF and frequency stability of ±30 ppm.
The package size is ultra miniature with dimensions of 2.5 mm length, 2.0 mm width, and 0.5 mm height.
Operating temperature ranges from -10°C to 60°C, suitable for various electronic applications.
Series resistance is specified at 150 Ω ensuring reliable oscillation performance.
The crystal is RoHS compliant and presented in tape and reel packaging for easy automated assembly.
Designed for surface mount technology with 4 pins to accommodate compact PCB layouts.
Ideal for use in Bluetooth, wireless devices, computers, modems, and microprocessors.

Product Description

Abracon ABM10-19.200MHZ-D30-T3 is a 19.2 MHz surface mount crystal unit designed for high precision and reliable frequency generation. This crystal offers ±20 ppm frequency tolerance and ±30 ppm frequency stability within the operating temperature range of -10°C to 60°C.

The crystal is housed in an ultra miniature ceramic seam-sealed package measuring 2.5 mm in length, 2.0 mm in width, and 0.5 mm in height. It is equipped with 4 pins for surface mounting, making it highly suitable for automated PCB assembly and compact electronic device designs.

This ABM10 series crystal features a load capacitance of 10 pF and series resistance of 150 Ω, which ensures stable oscillation performance across various electronic applications. The product is RoHS compliant and is supplied in tape and reel packaging, making it ideal for mass production environments.

It is commonly used in Bluetooth modules, wireless communication devices, computers, modems, and microprocessor circuits where compact size and precise frequency control are critical. Seam sealed construction assures high precision and long life reliability in demanding industrial and commercial electronics.

The crystal operates at a standard frequency of 19.2 MHz. Load capacitance is 10 pF for optimized circuit matching. Package type is surface mount with tape and reel packaging. Operating temperature range from -10°C to 60°C.

Series resistance is 150 Ω, supporting stable performance. Complies with RoHS standards for environmental safety. Ultra miniature size 2.5x2.0x0.5 mm footprint. 4-pin configuration for surface mount applications.

This product from Abracon offers precision and compactness essential in modern electronic and industrial applications. Browse EnvMart for more Abracon crystal units and related electronic component solutions.
