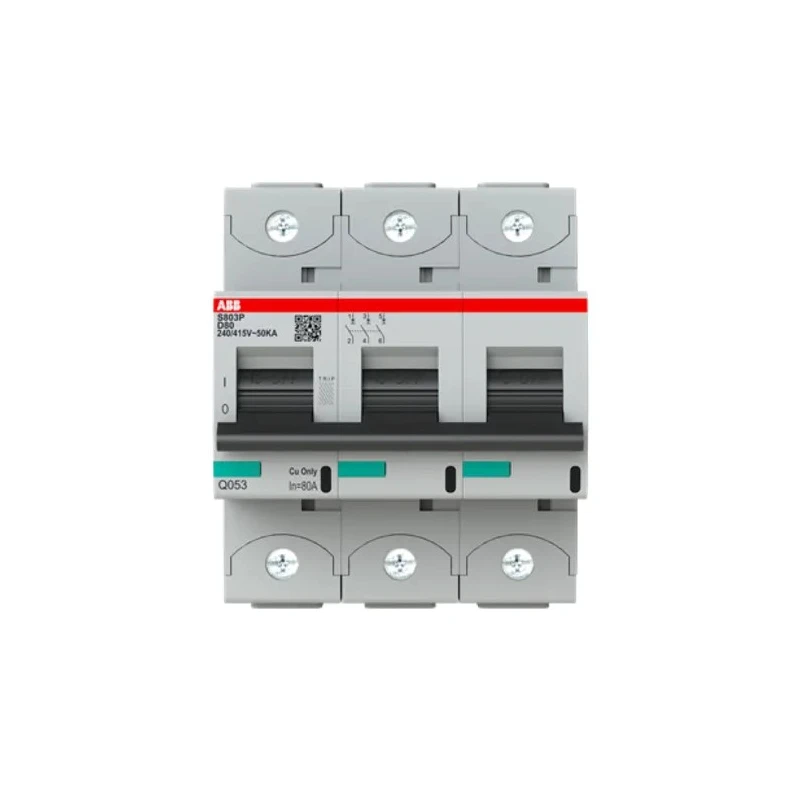

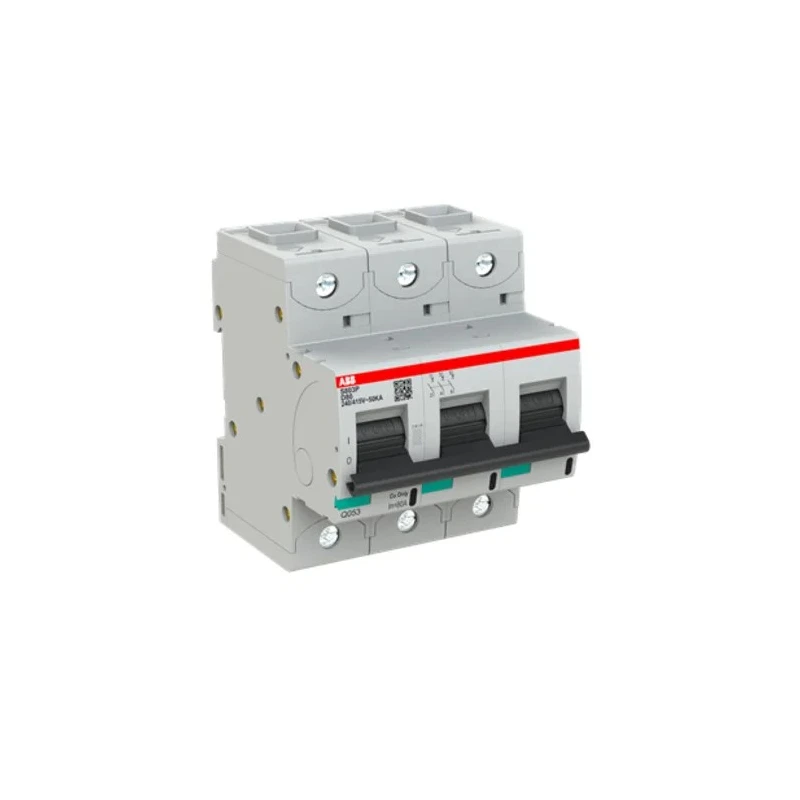

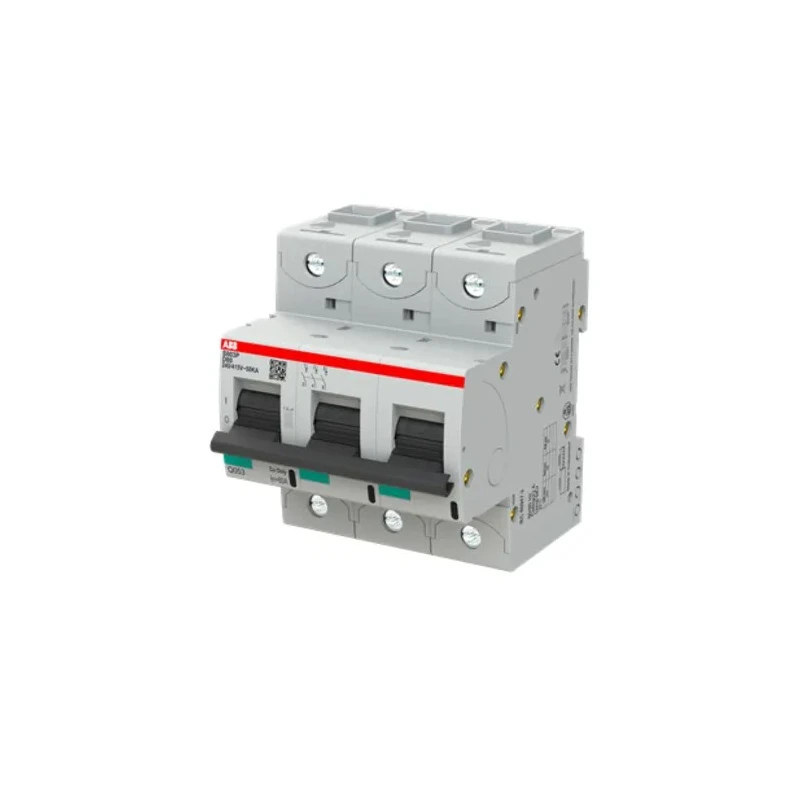

ABB High Performance S800S Miniature Circuit Breaker, 3-Pole, 80A, Type D, 690V AC, 250V DC, 50 kA Breaking 2CCG001244R0001
Specifications
| Country of Origin | Switzerland |
|---|---|
| Range | High Performance |
| Brand | ABB |
| Height | 95mm |
| Model | 2CCG001244R0001 |
| Depth | 82.5mm |
| IP Rating | IP20 |
| Width | 81mm |
| Mount Type | DIN Rail |
| Current Rating | 80A |
| Series | S800S |
| Terminal type | Screw |
| Breaking Capacity | 50kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 690V ac |
| Rated DC Voltage | 250V dc |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermomagnetic, Electromagnetic |
| Reset Actuator Type | Toggle Switch |
Key Features
- Type D tripping characteristic handles high inrush currents effectively.
- Rated for 690V AC and 250V DC operating voltages.
- High breaking capacity of 50 kA ensures enhanced safety during fault conditions.
- Compact size with 81mm width and 82.5mm depth for DIN rail mounting.
- Screw terminal design enables secure and easy wiring connections.
- Suitable for industrial, commercial, and domestic power distribution systems.
- Toggle switch reset actuator provides quick and convenient manual reset.
- Thermomagnetic and electromagnetic tripping mechanisms enhance operational reliability.
Product Description
ABB 2CCG001244R0001 High Performance S800S Miniature Circuit Breaker is a 3-pole device rated at 80A designed for advanced electrical protection in diverse applications. It operates at 690V AC and 250V DC with a breaking capacity of 50 kA, ensuring safe interruption of high fault currents.
Engineered with a Type D tripping characteristic, this MCB is ideal for circuits with high inrush currents such as motors and transformers. Its compact dimensions of 81mm width, 95mm height, and 82.5mm depth enable seamless DIN rail mounting, commonly on standard 35mm rails, facilitating efficient installation and space saving in electrical panels.
The device utilizes a reliable thermomagnetic and electromagnetic tripping mechanism, combined with screw terminals for secure cable connection. Its toggle switch reset actuator allows for easy manual reactivation after trips. The IP20 rating safeguards the breaker from solid foreign objects of 12.5mm and above, suitable for indoor electrical installations.
Operating effectively in temperatures from -25°C to +60°C, it is designed for industrial electrical distribution, commercial installations, machinery protection, and residential power panels. This MCB supports flexible cable sizes - flexible up to 50 mm² and rigid up to 70 mm² - providing wiring versatility.
Type D characteristic ensures safe operation with high inrush currents. Breaking capacity of 50 kA supports effective fault current interruption. Compact dimensions optimize use of electrical panel space. Screw terminals provide dependable and easy wiring solutions.
Toggle switch actuator enables quick manual reset after faults. DIN rail mounting offers easy installation compliance. IP20 protection suitable for indoor applications, preventing contact with live parts. Wide operating temperature range supports varied environmental conditions.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring quality and safety.
This ABB S800S Series MCB is a reliable, high-performance solution essential for modern electrical safety in industrial, commercial, and residential environments. Explore EnvMart's electrical components and circuit protection category for more high-quality devices tailored to your needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ABB High Performance S800S Miniature Circuit Breaker is rated for 80A.
It operates at a rated AC voltage of 690V and a rated DC voltage of 250V.
The breaking capacity is 50 kA, allowing for effective interruption of high fault currents.
This model features a Type D tripping characteristic, which is suitable for handling high inrush currents.
It has a width of 81mm, a height of 95mm, and a depth of 82.5mm.
It is designed for DIN rail mounting, which allows for easy installation on standard 35mm rails.
This circuit breaker uses screw terminals for secure and easy wiring connections.
It operates effectively in temperatures ranging from -25°C to +60°C.
It utilizes both thermomagnetic and electromagnetic tripping mechanisms for enhanced operational reliability.
The IP rating is IP20, which protects against solid foreign objects of 12.5mm and above.
It complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and safety.
The reset actuator is a toggle switch, allowing for quick and convenient manual reset after a trip.
