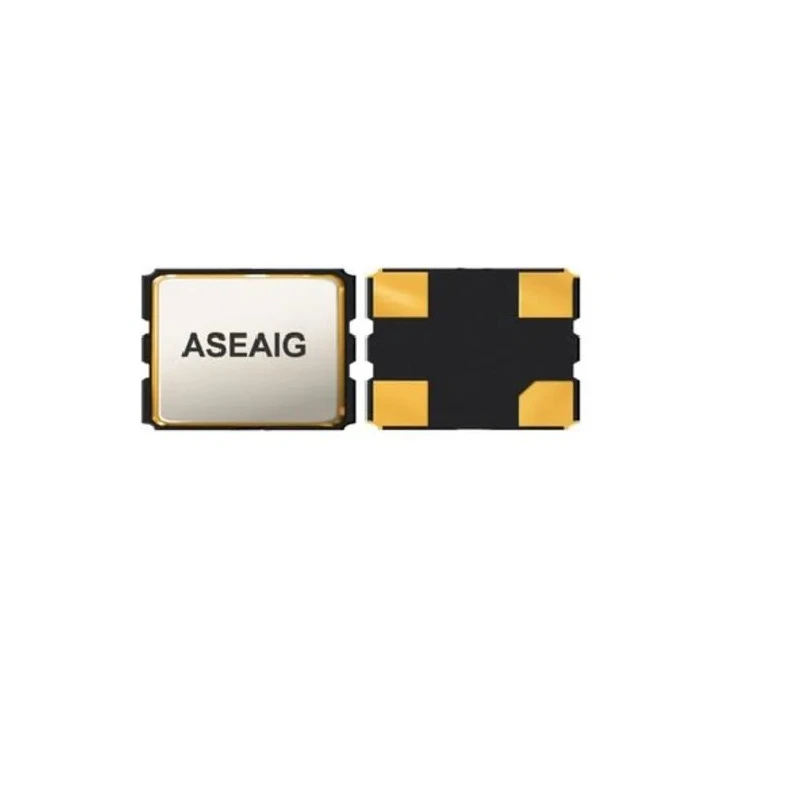

Abracon 40MHz Crystal Oscillator, ±50 ppm Stability, CMOS Output, 4-Pin Surface Mount ASEAIG-40.000MHZ-C-S-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.1mm |
| Length | 3.2mm |
| Model | ASEAIG-40.000MHZ-C-S-T |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ASEAIG |
| Maximum Operating Temperature | 125°C |
| Output Frequency | 40MHz |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Maximum Supply Voltage | 3.47V |
| Minimum Supply Voltage | 3.14V |
| Oscillator Type | Crystal Oscillator |
| Output Level | CMOS |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Automotive grade ceramic base SMD oscillator suitable for industrial applications.
- Hermetically seam-sealed ceramic package for enhanced reliability.
- Operating temperature range from -40°C to +125°C suitable for harsh environments.
- Compact dimensions of 3.2mm length, 2.5mm width, and 2.1mm height.
- Meets automotive standard AEC-Q200 and manufactured on a TS16949 certified production line.
- Ideal for infotainment systems, GPS/navigation, ADAS, and LiDAR applications.
- Available in tape and reel packaging for automated assembly lines.
Product Description
Abracon ASEAIG-40.000MHZ-C-S-T is a precision 40MHz crystal oscillator designed for automotive and industrial grade applications. Featuring ±50 ppm frequency stability and CMOS output, this 4-pin surface mount oscillator offers reliable performance in demanding environments.
The oscillator is housed in a hermetically seam-sealed ceramic package, ensuring superior protection and durability. It operates over a wide temperature range from -40°C to +125°C, conforming to Automotive Grade 1 standards and AEC-Q200 certification, making it suitable for advanced vehicular systems including infotainment, GPS navigation, ADAS, and LiDAR technologies.
This component requires a supply voltage between 3.14V and 3.47V and delivers a stable CMOS output level. Its compact footprint of 3.2mm (length) x 2.5mm (width) x 2.1mm (height) facilitates mounting on space-constrained circuit boards using surface mount technology. The product is supplied in tape and reel packaging, optimizing it for automated PCB assembly processes.
Abracon ASEAIG series oscillators are produced in TS16949 certified facilities, ensuring consistent quality required for automotive production demands. The robust ceramic base and tight frequency tolerance contribute to enhanced system reliability and performance in critical embedded applications.
Automotive and industrial-grade ceramic-based SMD oscillator with hermetically sealed package. Wide operating temperature range from -40°C to +125°C for extreme environment usage. Meets rigorous AEC-Q200 automotive qualification ensuring high reliability.
Designed for use in infotainment, GPS, ADAS, and LiDAR systems. Compact size suitable for high-density PCB layouts. Tape and reel packaging supports high-volume automated production. Manufactured in TS16949 certified production lines with PPAP documentation available.
This Abracon 40MHz crystal oscillator ASEAIG-40.000MHZ-C-S-T is ideal for industrial, automotive, and embedded electronics applications requiring precise, stable clock signals. Browse EnvMart's Electronics Components category for more Crystal Oscillators and related passive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 40MHz.
It operates over a wide temperature range from -40°C to +125°C, suitable for harsh environments.
This oscillator provides a CMOS output level.
The dimensions are 3.2mm in length, 2.5mm in width, and 2.1mm in height.
The supply voltage required for this unit ranges from 3.14V to 3.47V.
Yes, it meets the AEC-Q200 automotive standard, making it suitable for automotive applications.
It is supplied in tape and reel packaging, which is optimized for automated assembly lines.
This model has 4 pins.
It complies with RoHS standards and meets automotive grade requirements.
This oscillator uses surface mount technology for installation.
The country of origin for this model is India.
It is designed for use in infotainment systems, GPS/navigation, ADAS, and LiDAR applications.
