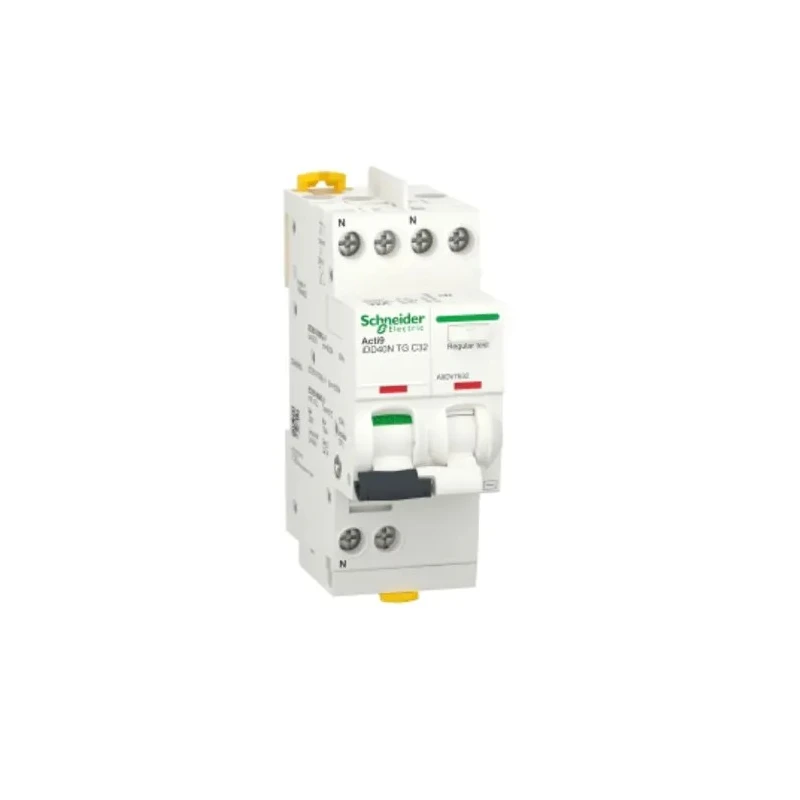

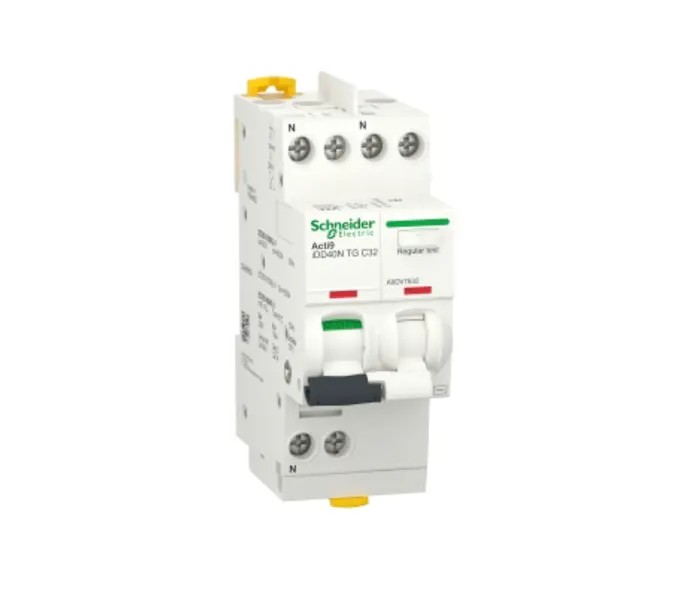

Schneider Electric Residual Current Circuit Breaker with Overload Protection 40A 1-Pole 300mA Trip A9DV7640

Schneider Electric A9DV7640 Residual Current Circuit Breaker with overload protection is engineered to provide essential electrical safety by combining earth-leakage sensitivity and overload protection in a single device. Rated for 40A current with 1-pole configuration, this breaker features a 300 mA trip sensitivity to detect leakage faults effectively.

It employs a thermal-magnetic tripping mechanism that combines thermal overload protection with instantaneous short-circuit interruption, enhancing reliability in residential, distribution, and overcurrent protection scenarios. The DIN rail mounting type offers straightforward installation and integration within electrical panels.

Rated for operation at 400V AC, the breaker supports distribution networks and residential electrical systems. The toggle switch actuator allows intuitive ON/OFF operation and visual trip indication, facilitating quick fault diagnosis and response. The device dimensions are compact at 93mm height, 73mm depth, and 36mm width, enabling efficient panel space utilization.

With a breaking capacity of 10kA, the breaker can handle high short-circuit currents safely, minimizing circuit damage. It meets stringent standards including RoHS compliance and EN/IEC 60947-2 certification, assuring performance and environmental conformity. The AC earth leakage protection type with tunnel terminals ensures robust and reliable connections suitable for varied electrical setups.

Additional safety features include a padlockable mechanism for enhanced safety during maintenance. Originating from France, this Schneider Electric Acti9 series breaker offers premium class quality aligned with modern safety and durability expectations.

Equipped with thermal-magnetic trip mechanism for reliable overload protection. Mounts on DIN rail for easy installation. Rated for 400V AC voltage operation suitable for various applications. Toggle switch actuator provides clear ON/OFF & trip indication.

Compact dimensions: 93mm height, 73mm depth, and 36mm width. Breaking capacity of 10kA ensures high short-circuit interruption capability. Compliant with RoHS and EN/IEC 60947-2 standards for safety and environmental requirements.

Designed with AC earth leakage protection type and tunnel terminal connections. Padlockable design offers extra safety for maintenance and operation. Certified country of origin: France.

This product is ideal for industrial, residential, electrical distribution, and automation applications requiring dependable circuit protection and earth leakage detection. Browse robust circuit breakers and electrical protection devices at EnvMart for enhanced safety and system reliability.
