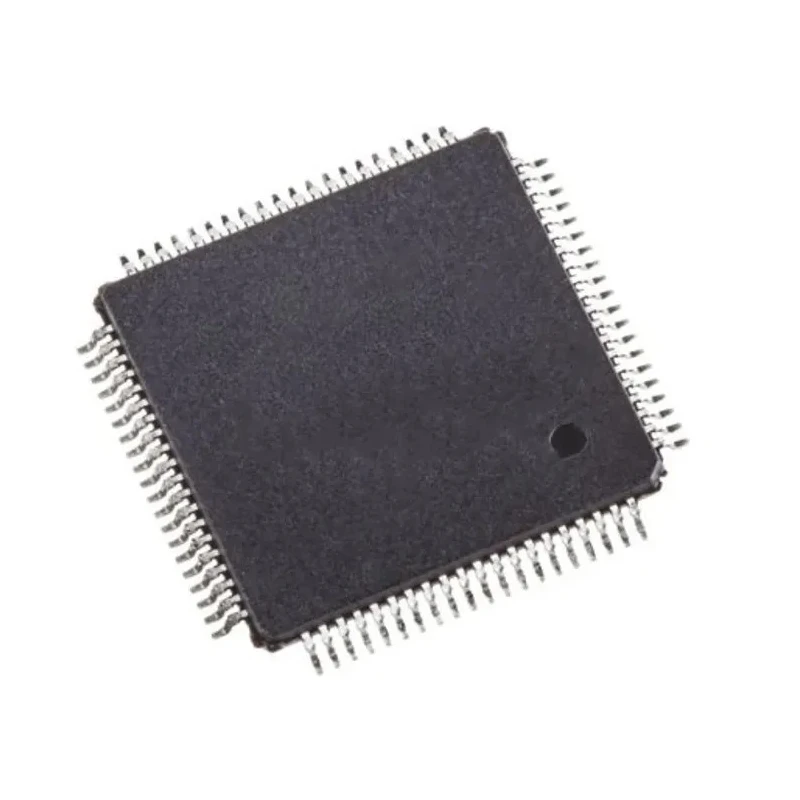

Microchip 8-bit PIC18 Microcontroller 80 MHz 32kB FLASH 80-Pin TQFP PIC18F8520-I/PT

Microchip PIC18F8520-I/PT is a high-performance 8-bit PIC18 microcontroller featuring 80 MHz operating frequency and 32kB of enhanced Flash program memory.

This microcontroller operates with a broad supply voltage range from 4.2V up to 5.5V, making it compatible with various system power requirements. It is equipped with 2kB RAM and provides up to 68 programmable I/O pins, allowing versatile connectivity and control for diverse industrial and consumer electronic applications.

Built on a reduced instruction set computing (RISC) architecture, it delivers efficient instruction execution optimized for embedded control. The PIC18F8520-I/PT integrates 16 channels of 10-bit analog-to-digital converters (ADCs), supporting accurate sensor interfacing and signal conversion for measurement and control tasks.

The device is housed in an 80-pin Thin Quad Flat Package (TQFP), supporting surface-mount assembly techniques common in modern PCB manufacturing. It maintains program memory integrity with Flash memory retention greater than 40 years, ensuring long-term data reliability in critical applications.

Designed with interrupt priority levels, the device supports responsive and structured interrupt handling vital for real-time control systems. It meets important environmental compliance standards including REACH and RoHS3, aligning with modern sustainability requirements.

Applications suitable for this microcontroller include industrial automation, automotive control units, instrumentation, and consumer electronics where reliable 8-bit microcontroller performance is essential.

Microchip’s PIC18F8520-I/PT offers a balanced combination of performance, memory capacity, and analog integration for a broad spectrum of embedded systems development. Operates over a voltage range of 4.2 to 5.5 volts. 80 MHz maximum clock frequency for enhanced processing speed.

32kB Flash memory with over 40 years retention. 2kB RAM and 68 programmable I/O pins for flexible design. 16-channel 10-bit ADC for precise analog input. Temperature tolerance from -40°C to 85°C for industrial environments.

Compliant with REACH and RoHS3 standards. 80-pin TQFP package suitable for surface mount technology. Discover the full range of Microchip Microcontrollers and related electronic components at EnvMart for advanced embedded solutions.
