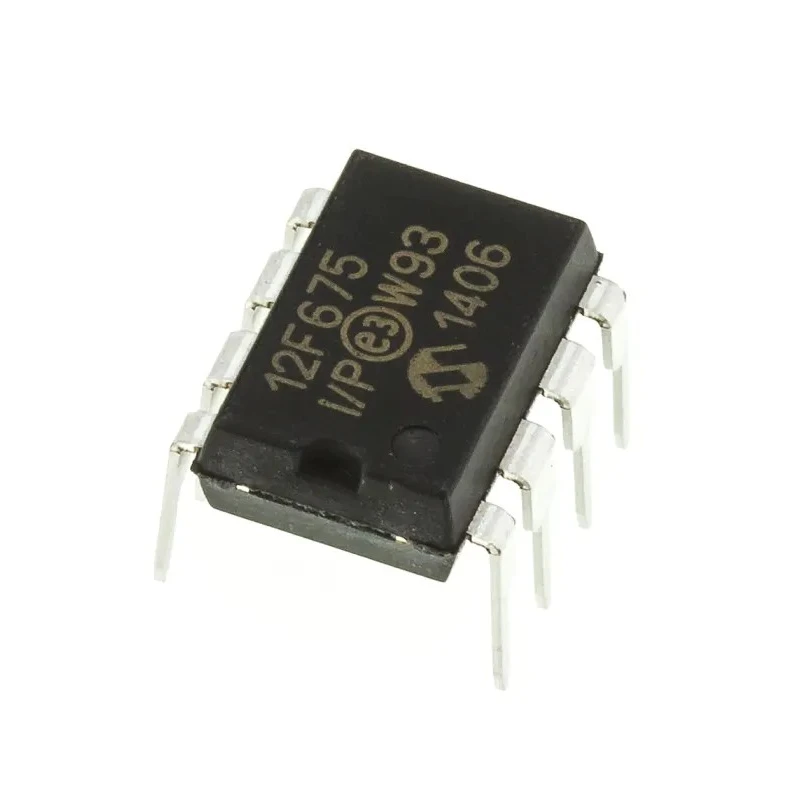

Microchip PIC12F675-I/P 8-Bit PIC Microcontroller 20 MHz 1.75 kB FLASH 8-Pin PDIP

Microchip PIC12F675-I/P is a high-performing 8-bit PIC microcontroller designed for various industrial and embedded applications. Operating at a clock frequency of 20 MHz with 1.75 kB of FLASH program memory, it fits in an 8-pin PDIP through-hole package making it ideal for compact and robust designs.

Built on Microchip's mid-range core featuring 35 instructions and an 8-level hardware stack, this microcontroller delivers up to 5 MIPS processing speed. It includes 64 bytes of RAM and 128 bytes of EEPROM to support data storage and retrieval needs. Its internal RC oscillator operates at 4 MHz with ±1% accuracy providing reliable clock signals.

The device features 6 programmable input/output pins and a single analogue comparator, alongside a 4-channel 10-bit Analog to Digital Converter exclusive to the PIC12F675 variant, which enables precise signal conversion for sensor interfacing and monitoring tasks.

Timer support includes one 8-bit and one 16-bit timer essential for timing and counting operations in embedded systems. Designed for through-hole mounting with a PDIP package, the microcontroller simplifies prototyping and integration.

Operating temperature ranges from -40°C to 85°C ensure robust performance in varying environmental conditions. The device also complies with the automotive standard ISO/TS 16949, highlighting its quality and suitability for automotive and industrial applications.

In Circuit Serial Programming (ICSP) support allows straightforward programming and firmware updates directly on the hardware platform. 35 instruction set and 8-level stack enable effective operation. 64 bytes RAM and 128 bytes EEPROM support versatile memory requirements.

4 MHz internal RC oscillator with ±1% accuracy for clock generation. 6 programmable I/O pins and 1 analogue comparator for flexible interfacing. 4-channel 10-bit ADC provides precise analog signal conversion. One 8-bit timer and one 16-bit timer for timing operations.

Operating temperature from -40°C to 85°C suits extended environments. Through hole PDIP package for ease of use in prototyping and manufacturing. Adheres to ISO/TS 16949 for automotive quality standards. Supports In Circuit Serial Programming (ICSP) for efficient programming.

This microcontroller is widely applicable in industrial, automotive, electronic component development, control systems, and embedded microcontroller projects. It offers an excellent balance of compact size, processing power, and extended peripheral features to meet diverse technical requirements.
